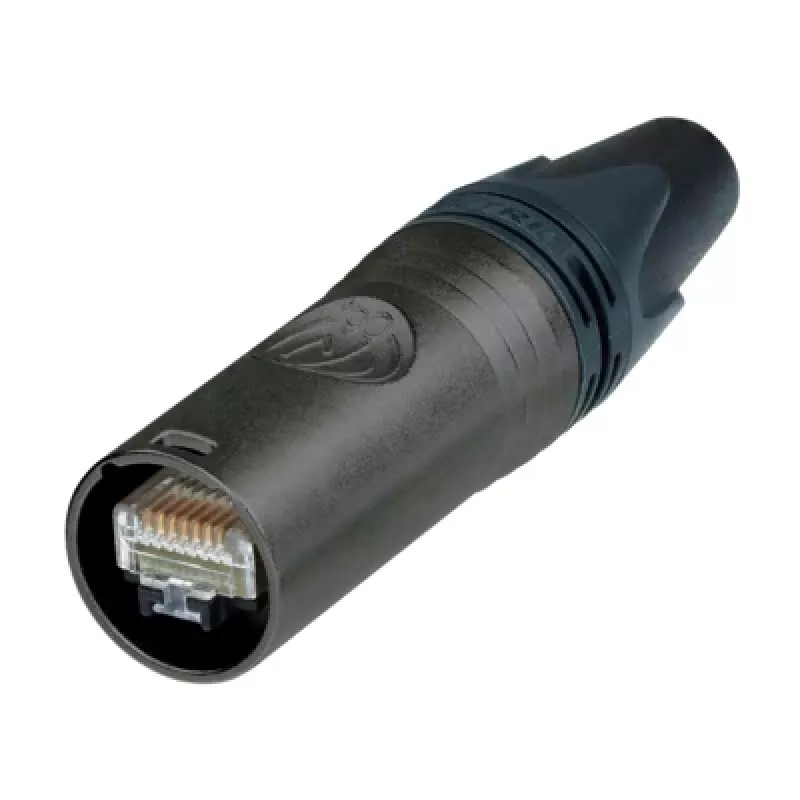

Suporte conector macho de cabo etherCON CAT6A Neutrik NE8MX6-B-T, preto, IP65

The Neutrik NE8MX6-B-T is a professional-grade etherCON CAT6A cable connector carrier designed for reliable network connections in demanding environments. This male carrier accepts standard RJ45 plugs (Cat5e, Cat6, Cat6a) and provides a rugged, IP65-rated sealed connection when mated with a compatible etherCON receptacle (NE8FDX-P6B or NE8FDX-P6W). Its robust zinc diecast shell and PU boot ensure durability, while gold-plated contacts guarantee optimal signal integrity.

Advantages

• IP65 protection for outdoor or industrial use
• Supports high-speed CAT6A data transmission
• Robust zinc diecast housing with PU boot
• Gold-plated contacts for corrosion resistance
• Over 1000 mating cycles for long-term reliability

Suitable for

• Professional audio/video installations
• Industrial Ethernet networks
• Broadcast and stage applications
• Outdoor or harsh environment connectivity

Key specifications

• Connector type: etherCON CAT6A Cable Connector Carrier (male)
• Compatibility: Standard RJ45 plugs (Cat5e, Cat6, Cat6a)
• IP rating: IP65 (mated with NE8FDX-P6B or NE8FDX-P6W)
• Housing material: Zinc diecast (shell), PU (boot)
• Colour: Black
• Contact plating: Gold
• Mating cycles: > 1000
• Dielectric strength: 1 kVDC
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: < 50 V
• Temperature range: -30 °C to +80 °C
• Flammability rating: UL94 V-0
• Standard compliance: IEC 61076-3-106
• Shielding: Shielded
• Termination: Field assembly (for standard RJ45 plug)

Recommendations

For optimal IP65 performance, pair with Neutrik NE8FDX-P6B or NE8FDX-P6W receptacles. Ensure proper cable preparation and assembly for reliable operation.
