Suporte de mesa para monitor ESPERANZA ERW017 para ecrãs de 10–27", até 8 kg, fixação à mesa, VESA 75x75–100x100

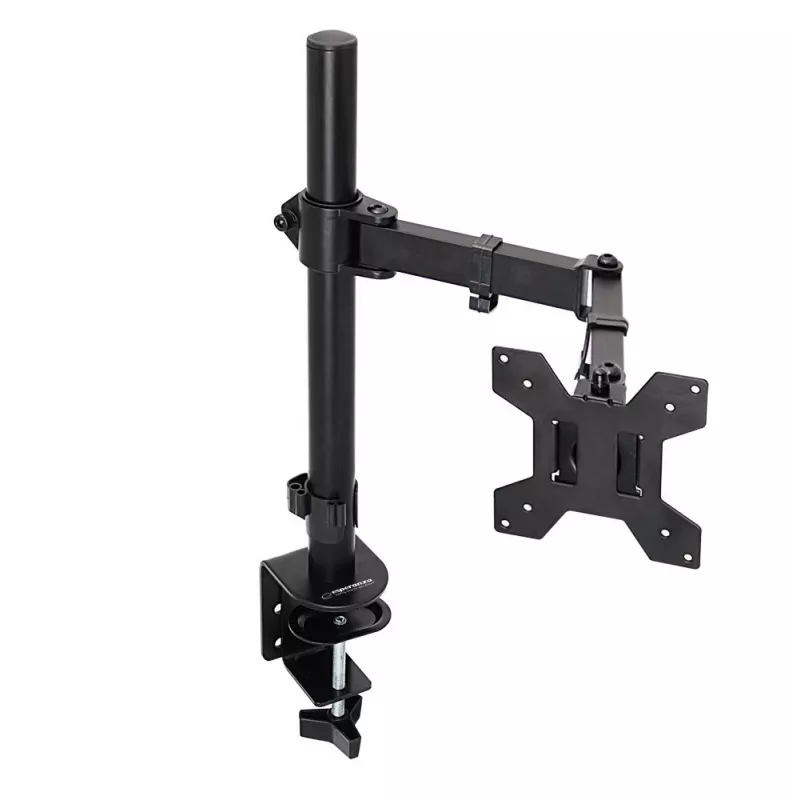

Desktop monitor mount ESPERANZA ERW017 supports 10–27" screens and is designed for desk installation with a clamp. It is finished in black and comes with screws and a complete mounting kit for assembly. The mount accepts VESA patterns from 75×75 to 100×100 and has a maximum load capacity of 8 kg.

Advantages

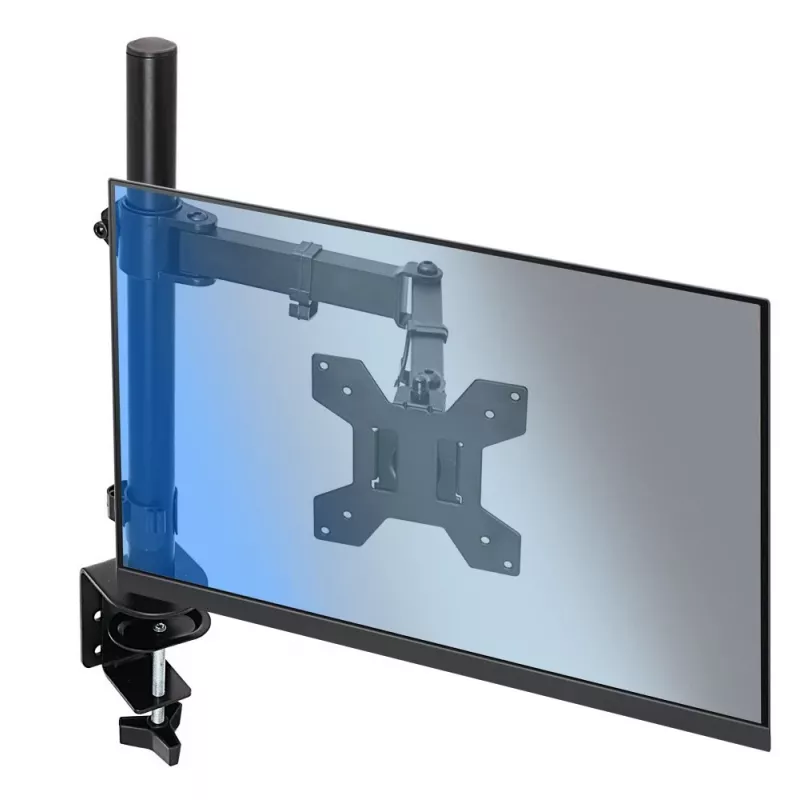

The mount provides 360° rotation, horizontal swivel up to ±90° and tilt adjustment to position the screen. Height adjustment is available to set an ergonomic viewing level. Compact desk-clamp installation saves workspace while offering secure attachment for compatible monitors.

Suitable for

• Home office monitor setup
• Office workstations with 10–27" displays
• Desks where clamp mounting is preferred to drilling
• Users needing adjustable height, tilt and swivel

Key specifications

• Compatible screen size: 10–27 inches

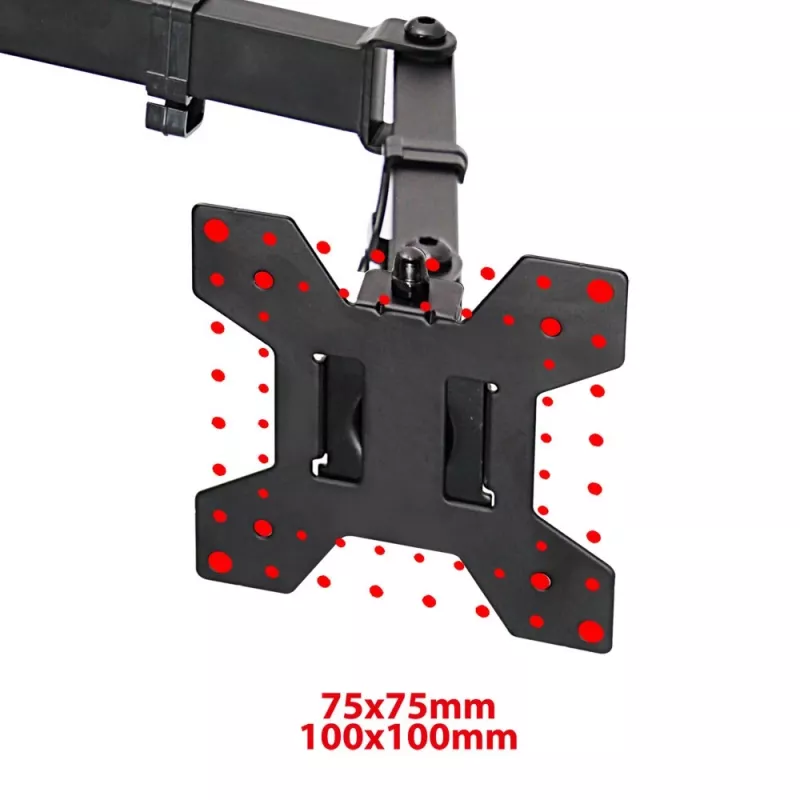

• VESA compatibility: 75×75 mm and 100×100 mm

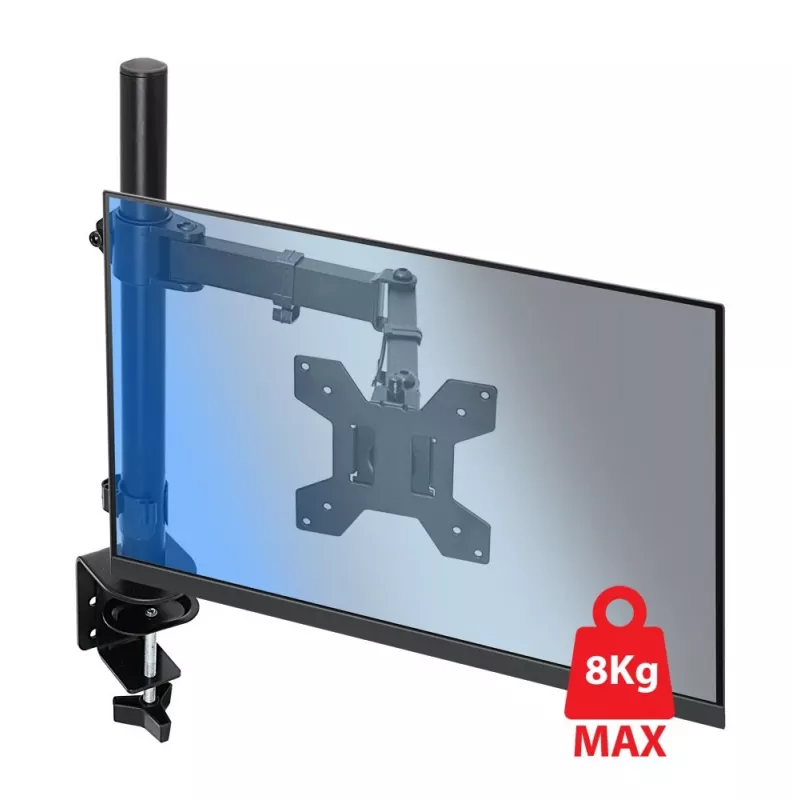

• Maximum load capacity: 8 kg

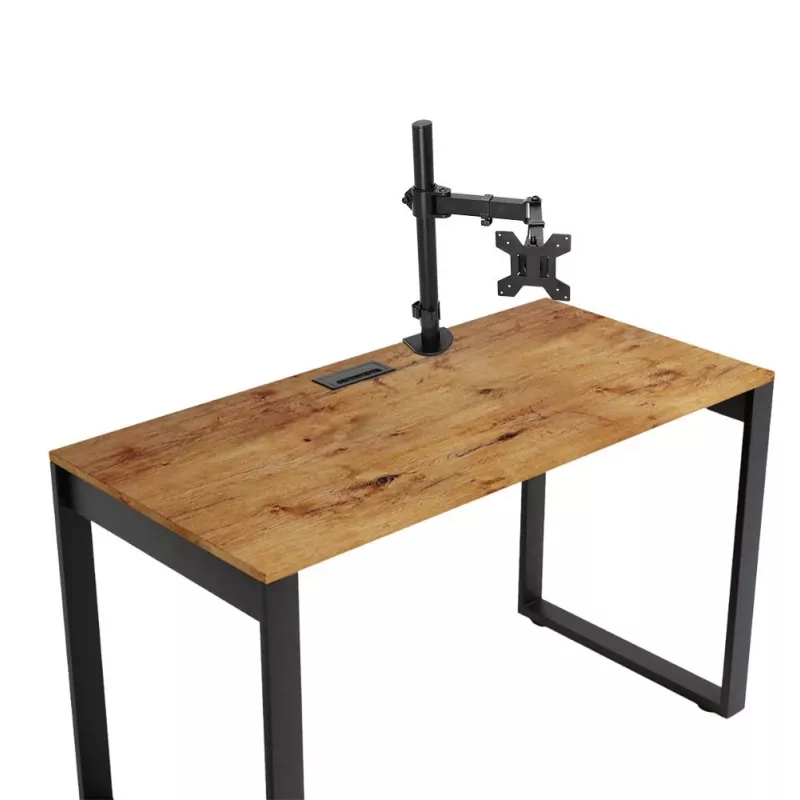

• Mounting type: Desk clamp
• Rotation: 360°
• Horizontal swivel: -90° to 90°
• Tilt adjustment: available (tilt range listed as 89°)
• Color: Black

How to use

Attach the mounting arm to the desk using the clamp following the supplied mounting kit instructions. Fix the monitor to the VESA plate with the included screws, ensuring the VESA holes match 75×75 or 100×100 pattern. After installation, adjust height, tilt and swivel to obtain the desired ergonomic position and tighten all fasteners securely.

Recommendations

Ensure the monitor weight does not exceed 8 kg and that the screen's VESA pattern matches 75×75 or 100×100. Verify the desk edge and thickness are suitable for the clamp and periodically check fasteners for tightness to maintain safe mounting.
