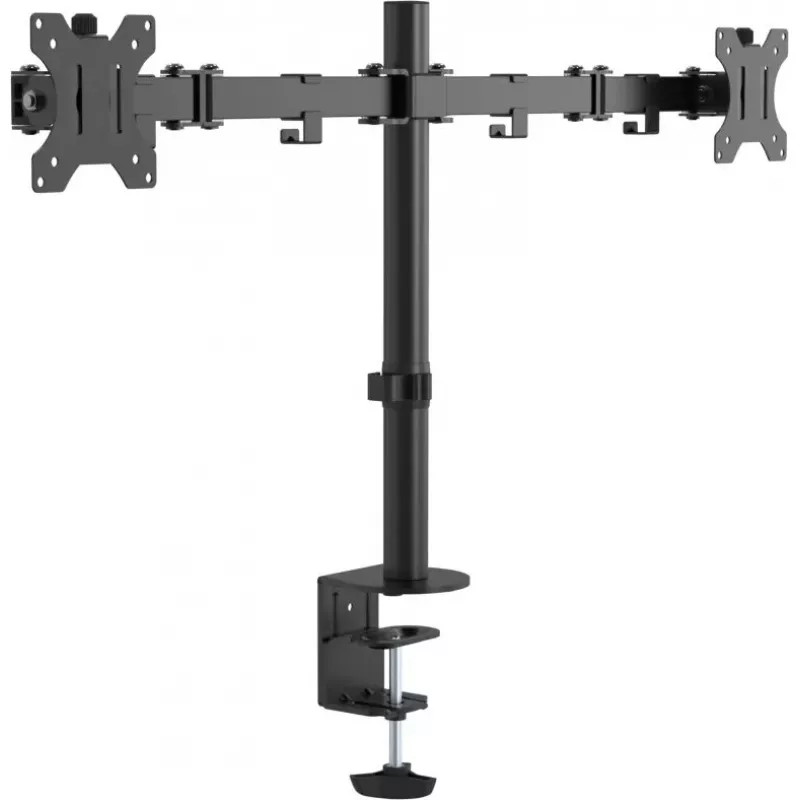

Suporte de monitor Vision VFM-DPD2B

The VFM-DPD2 (Vision Flat-panel Mount – Desk Post Dual) is a dual monitor desk clamp mount designed for screens with VESA 75 x 75 mm or 100 x 100 mm rear mounting holes. It supports two displays with screen sizes from 33 cm to 68.6 cm (13" to 27") and a maximum load of 16 kg. The black aluminium/alloy construction provides stable support while allowing height adjustment and broad movement to optimise desk layout.

Advantages

The Vision VFM-DPD2B offers wide tilt and swivel ranges (tilt -45° to 45°, swivel -90° to 90°) and a secure clamp mounting system for easy installation on desks. It is compatible with common VESA standards (75 x 75 and 100 x 100 mm), supports two monitors and accommodates screens up to 27" while remaining compact and stable with a product weight of 4.2 kg.

Suitable for

• Office workstations requiring dual monitors
• Home offices where desk space optimisation is needed
• Light editing and productivity setups with screens up to 27"
• Environments needing adjustable height, tilt and swivel for ergonomic positioning

Key specifications

• Model: Vision VFM-DPD2B
• Supported VESA: 75 x 75 mm, 100 x 100 mm
• Screen size compatibility: 33–68.6 cm (13"–27")
• Maximum weight capacity: 16 kg (total)
• Number of displays supported: 2
• Tilt range: -45° to 45°
• Swivel range: -90° to 90°
• Mounting type: Desk clamp
• Colour: Black
• Product weight: 4.2 kg

How to use

Attach each monitor to the VESA plate using the appropriate screws for 75 x 75 mm or 100 x 100 mm patterns, then secure the plates to the arms. Fasten the clamp to a suitable desk edge following the manufacturer's tightening guidance. Adjust the height, tilt and swivel to the desired ergonomic position, ensuring all fasteners are tightened after final adjustment. Check that the combined weight of attached monitors does not exceed the 16 kg capacity.

Recommendations

For stable installation, use a desk with a firm edge at least 10 mm thick and verify screw lengths match your monitor VESA depth. Do not exceed the maximum load and periodically check that all connections remain secure.
