Suporte de parede B-Tech BT8310XL/B universal heavy duty Pop-Out com microajuste

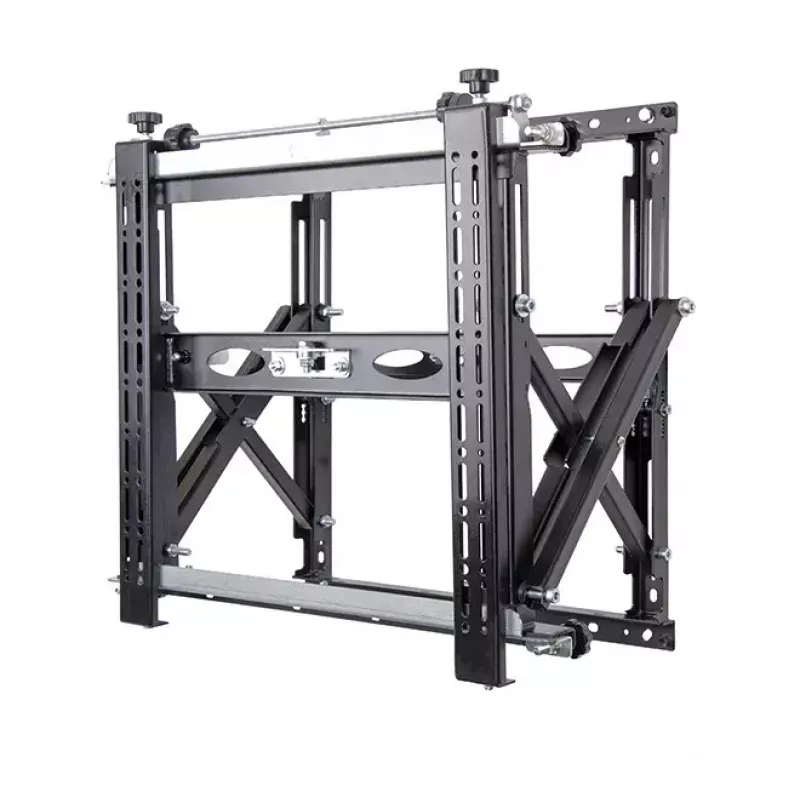

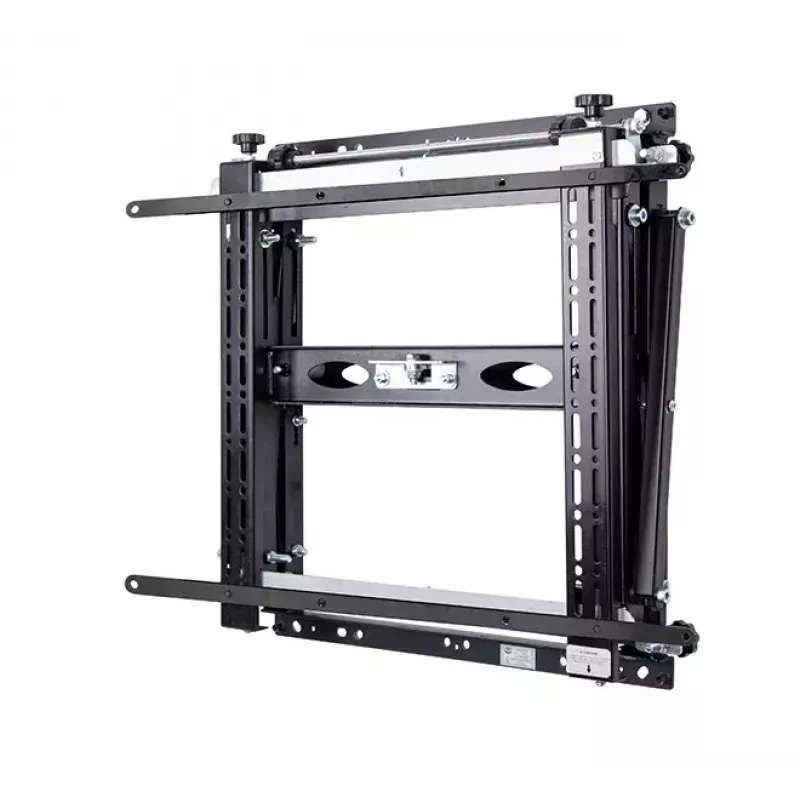

The B-Tech BT8310XL/B is a universal heavy-duty pop-out wall mount designed for extra-large screens. It supports single displays from 42" up to 120" with a maximum load of 125 kg and fits VESA patterns from 200 x 100 mm to 400 x 400 mm. The mount is supplied in black and is intended for applications where secure, adjustable positioning of large-format screens is required.

Advantages

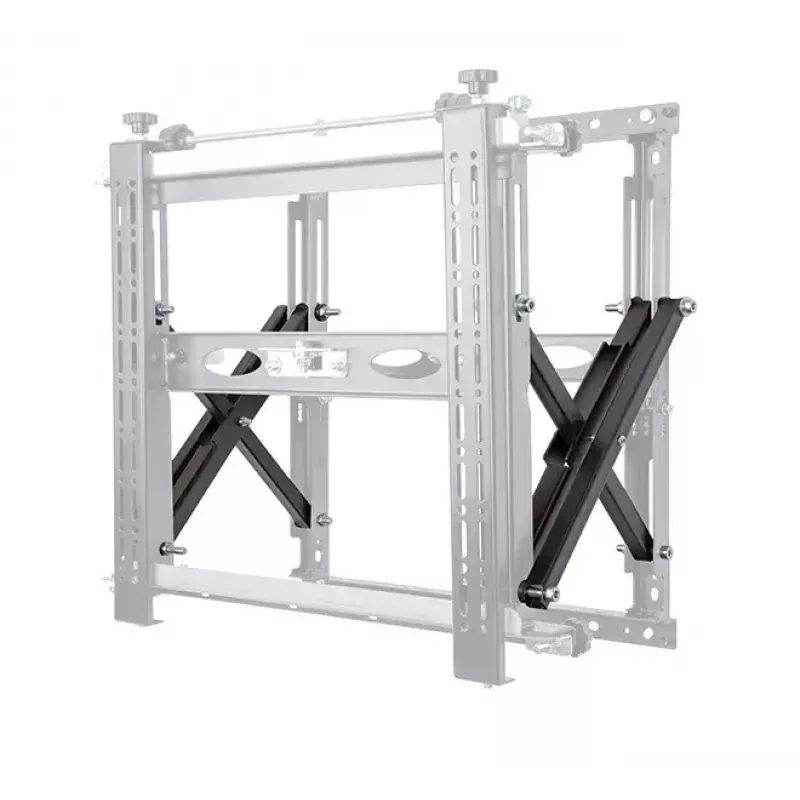

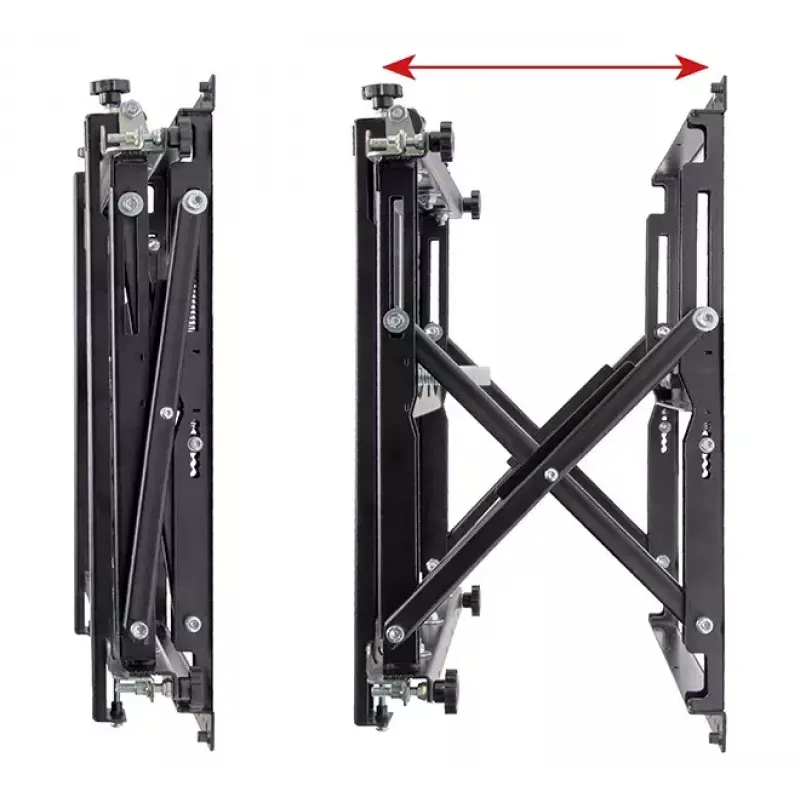

Reinforced scissor arms provide increased load-bearing capacity and stability for very large screens while the pop-out mechanism allows easy access to the rear and sides of the display for maintenance or cabling. Eight-point micro-adjustment enables precise alignment during installation, and the robust construction is suitable for both landscape and portrait orientations.

Suitable for

• Large-format displays in meeting rooms and auditoria
• Digital signage and public information screens
• Retail and exhibition installations
• Environments requiring occasional rear access for cabling or service

Key specifications

• Maximum weight capacity: 125 kg
• Supported screen sizes: 42"–120"
• VESA compatibility: 200 x 100 mm to 400 x 400 mm
• Displays supported: 1
• Colour: Black

How to use

Mount the wall plate to a suitable load-bearing surface using appropriate fixings for the wall material. Attach the display to the scissor arms using the compatible VESA holes, then use the pop-out function to access connections and route cables. Perform fine alignment with the eight-point micro-adjustment until the screen is positioned correctly, and verify that the load is secure before regular use.

Recommendations

For installations requiring restricted access to the rear of the screen, consider purchasing the additional locking kit accessory (sold separately). Ensure mounting fixings and wall structure are rated for the 125 kg maximum load and follow all local building and safety codes during installation.
