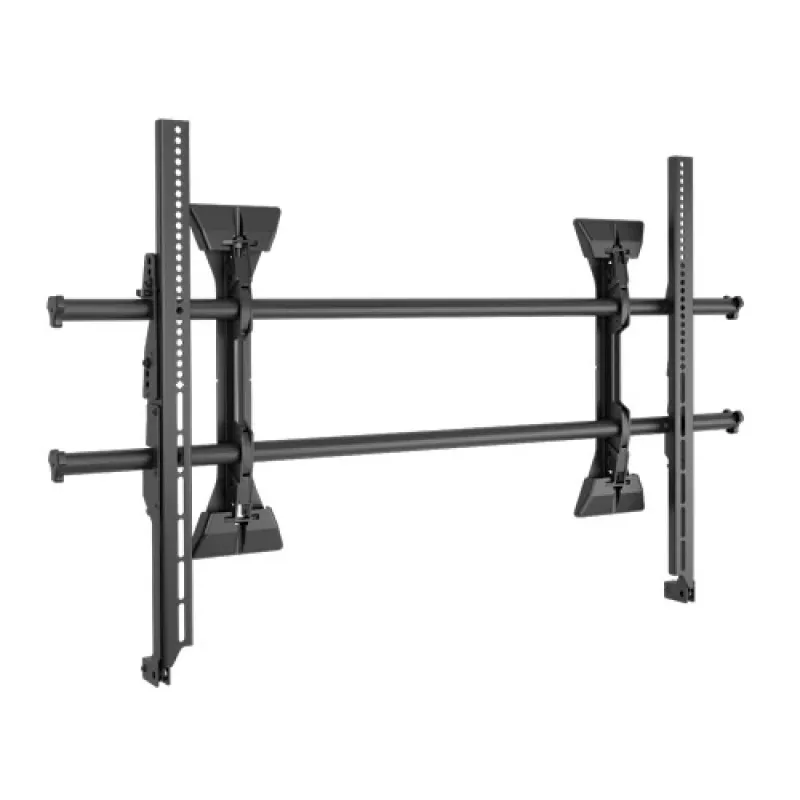

Suporte de parede/base para TV Chief XSM1U 2,08 m (82") preto

The Chief XSM1U fixed TV mount supports large flat-panel displays from 55" up to 82" with a maximum load of 114 kg. Designed from installer feedback, this low-profile black mount combines stability and post-installation adjustability — including Centerless Shift for lateral centering, ControlZone leveling for fine height and level corrections, and ClickConnect audible engagement — to simplify professional and residential installations.

Advantages

The XSM1U includes an integrated teardrop wall plate that allows pre-installation of bolts, stacked nesting spacers for adjustable depth, and multiple stud-distance options to accommodate varied walls. Set screws maintain rigidity and security over time, while built-in cable management, Quick-Store magnetic cord holders and improved end caps facilitate tidy routing. The mount ships with a custom hardware kit and supports accessory installation on the unit as a whole.

Suitable for

• Mounting 55"–82" flat-panel TVs
• Commercial installations requiring robust security and cable management
• Residential wall-mounting where low profile and post-install adjustments are needed
• Installations that require lateral centering after the mount is fixed

Key specifications

• Maximum screen size: 82"
• Maximum weight capacity: 114 kg
• Minimum VESA: 100 x 100 mm
• Colour: Black
• Model: Chief XSM1U (MPN: XSM1U)

How to use

Position the teardrop wall plate and pre-install bolts where needed, then attach the plate to the wall at the appropriate stud spacing. Hang the display on the mount rails until ClickConnect audibly confirms engagement, then tighten set screws to lock the assembly. Use ControlZone leveling to fine-tune height and level post-installation, and employ Centerless Shift if lateral repositioning is required. Route cables through the built-in cable stand and secure cords with the Quick-Store magnetic holders and end caps.

Recommendations

For safety and best performance, verify the wall construction and stud locations before installation, ensure the display weight does not exceed 114 kg, and follow the included hardware kit instructions. Use the built-in leveling and centering features to achieve accurate alignment and tighten all set screws after final positioning.
