Suporte de parede Ergotron 200 Series Combo Arm 61 cm (24 polegadas)

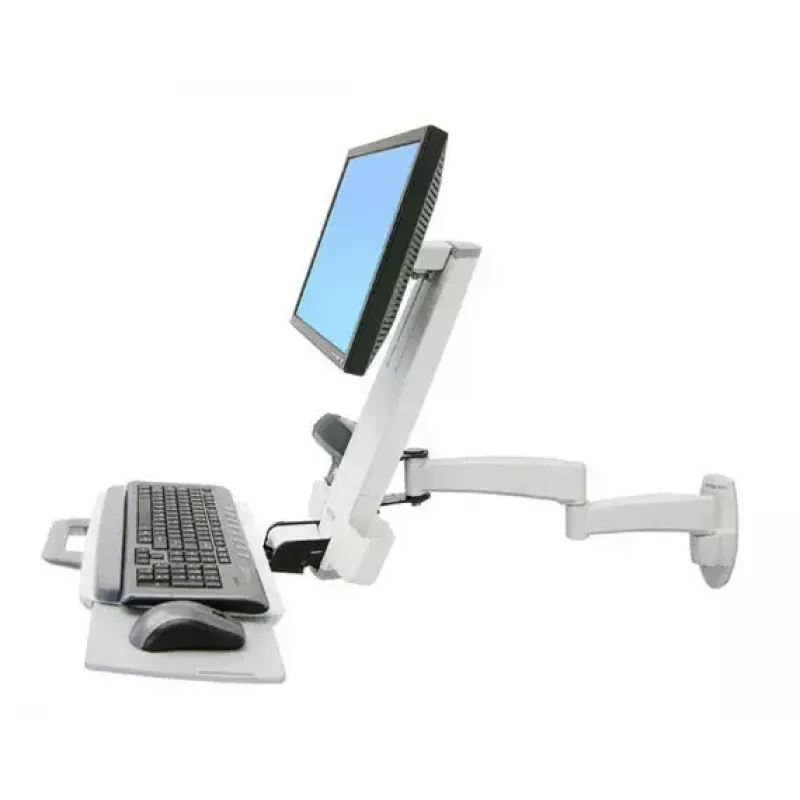

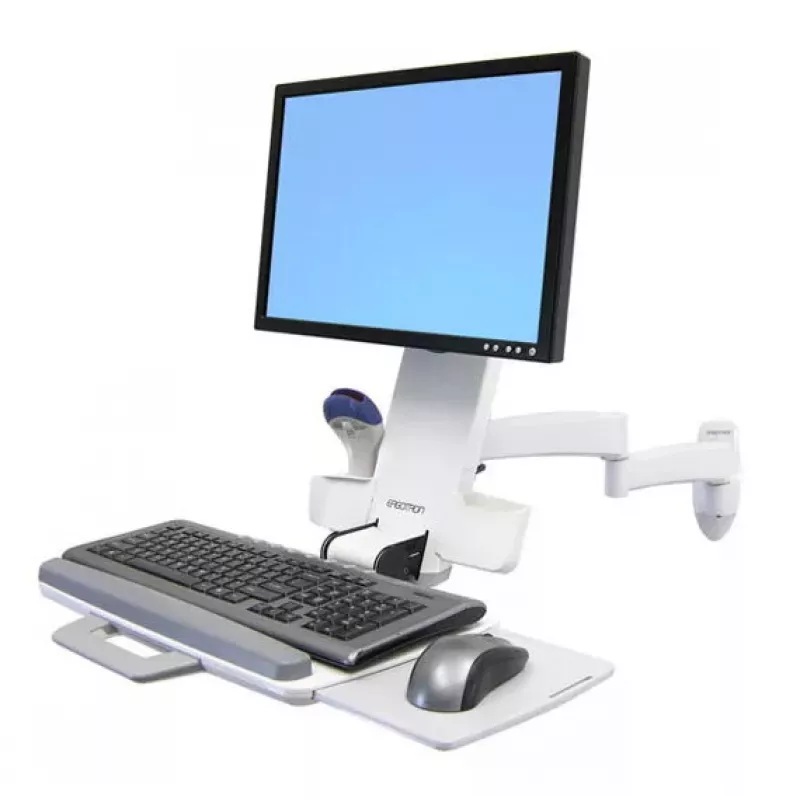

The Wall Mount Ergotron 200 Series Combo Arm 61 cm (24") is a compact wall-mounted solution that holds a flat-panel monitor up to 61 cm (24"), a keyboard, wrist rest, mouse and a barcode scanner on a single articulating arm. It supports VESA 75 x 75 to 100 x 100 mm, has a maximum weight capacity of 8.2 kg and provides a tilt range of -30° to 30° for flexible viewing. The unit is finished in white and includes an integrated cable management system for clean routing of cords.

Advantages

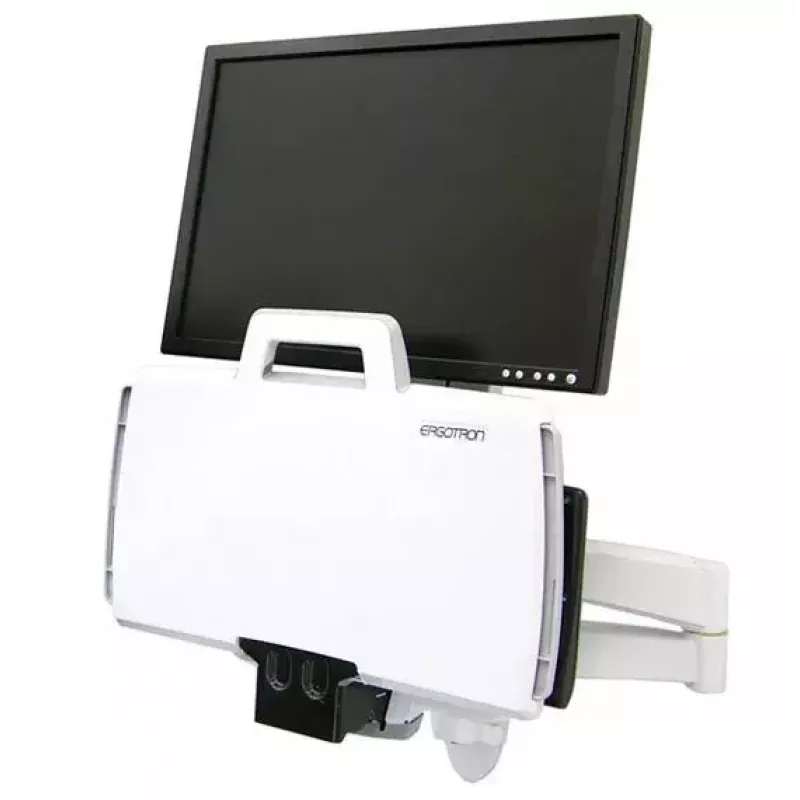

The combo arm offers three-point telescoping motion and Constant Force patented lift technology for smooth, one-touch positioning of the LCD and keyboard. It provides up to 13 cm (5 in) of LCD height adjustment and extends the keyboard out to 99 cm (39 in), while folding back to a minimum system depth of approximately 31 cm (12.1 in) when stowed. Rugged steel construction and concealed cable routing simplify cleaning and infection-control procedures, and an integrated barcode scanner holder keeps a hand-held scanner easily accessible. The ergonomic negative-tilt keyboard tray with left or right mouse option supports neutral wrist posture during data entry.

Suitable for

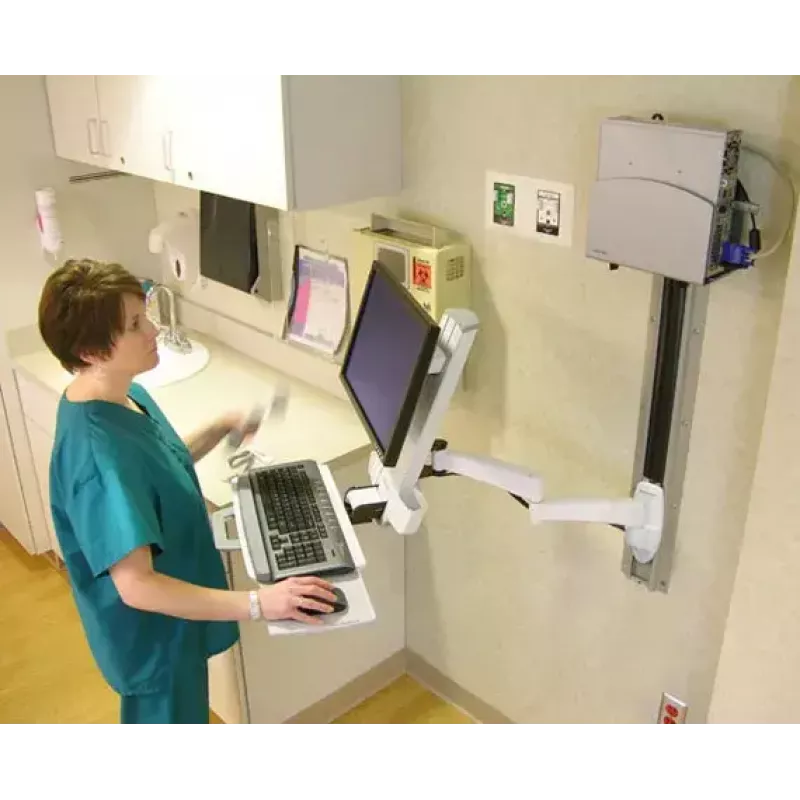

• Clinical and healthcare workstations requiring frequent cleaning and infection control
• Point-of-sale and retail counters with barcode scanning and compact footprint needs

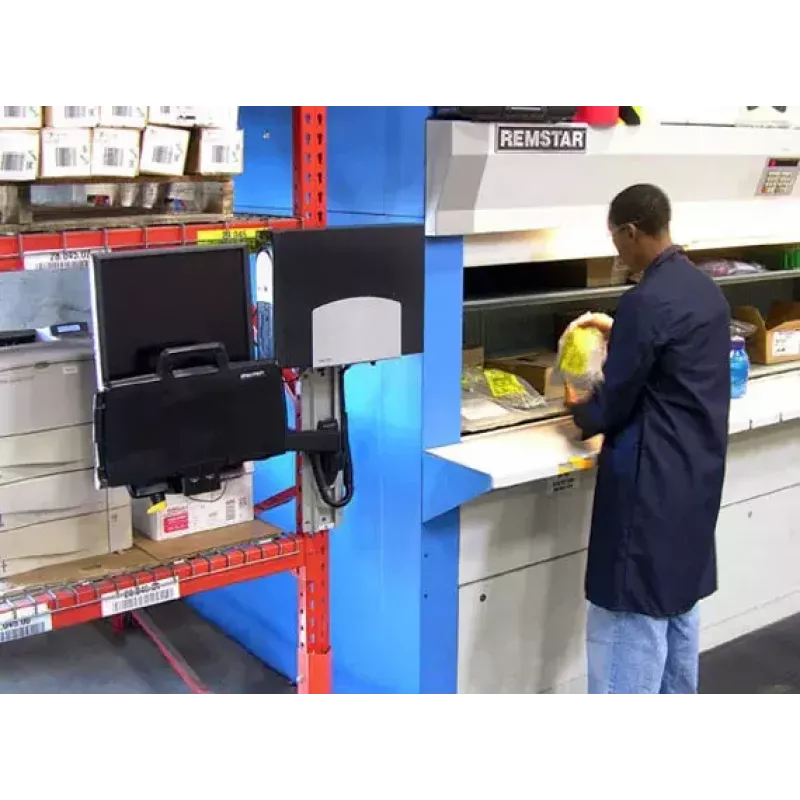

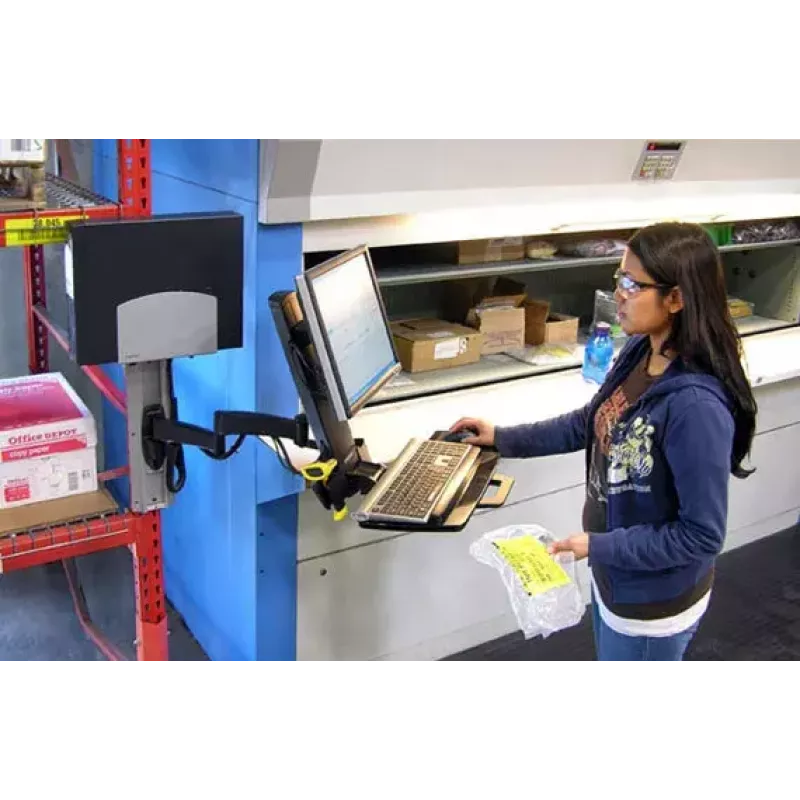

• Industrial or laboratory benches where adjustable monitor and keyboard positioning is needed
• Offices and hot-desk areas where wall-mounted, space-saving monitor and keyboard solutions are preferred

Key specifications

• Maximum screen size: 24" (61 cm)
• Maximum weight capacity: 8.2 kg
• Supported VESA: 75 x 75 mm to 100 x 100 mm
• Tilt range: -30° to 30°
• LCD height adjustment: 13 cm (5 in)
• Keyboard extension: up to 99 cm (39 in); folded system depth approx. 31 cm (12.1 in)
• Product colour: White
• Material: Steel construction

How to use

Wall-mount the Ergotron 200 Series Combo Arm following the included installation instructions and secure it to a suitable load-bearing wall. Attach a compatible monitor using the supported VESA pattern and within the 8.2 kg weight limit. Mount the keyboard, mouse and barcode scanner in their designated positions on the arm. Use the Constant Force lift to position the LCD and keyboard to the preferred height and angle; extend or retract the arm to move the system closer or farther as required. When not in use, fold the arm and tray back toward the wall to minimize occupied space.

Recommendations

Ensure the mounting surface can support the combined weight of the arm and attached equipment. Verify monitor VESA compatibility and weight before installation. Clean surfaces and concealed cable paths regularly following facility hygiene protocols; avoid using abrasive cleaners on painted surfaces.
