Suporte de parede fixo para TV de alta resistência Equip 60"–120"

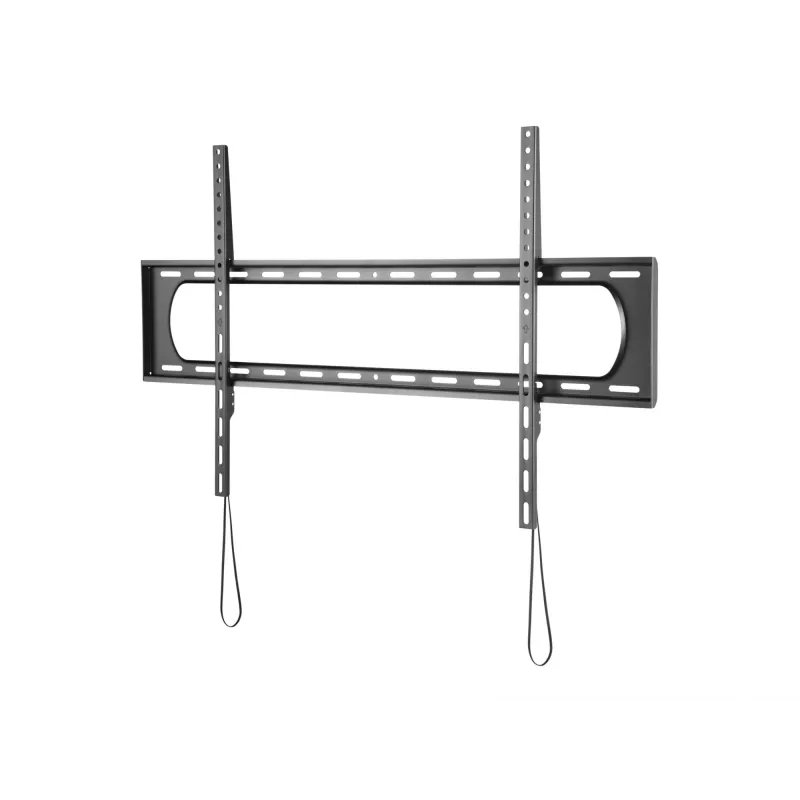

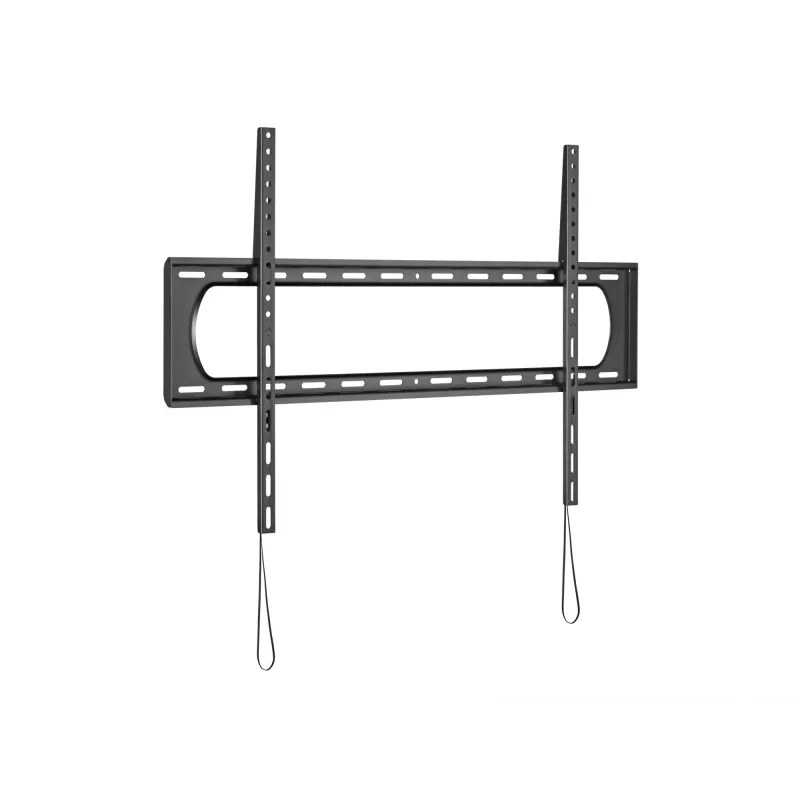

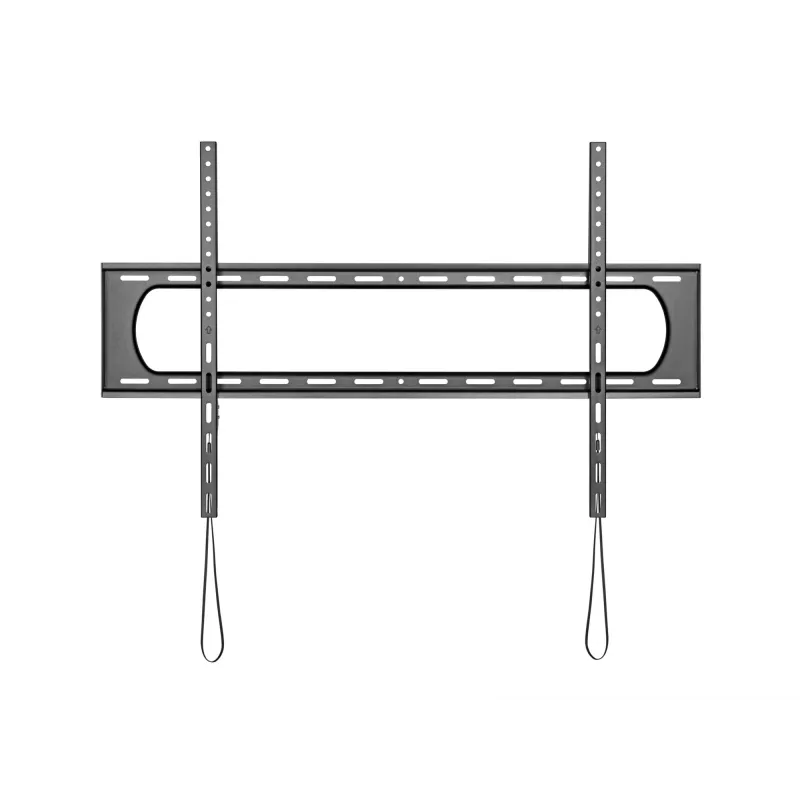

The Equip 650338 fixed heavy-duty TV mount bracket supports flat-panel screens from 60" to 120" and holds up to 120 kg. Designed for a low-profile installation, the bracket keeps the display approximately 3.5 cm from the wall and accommodates VESA patterns from 50 x 500 mm up to 900 x 600 mm. A central opening provides space for a socket outlet and cable routing, helping to conceal wiring behind the TV.

Advantages

This fixed TV mount offers a reinforced stiffener structure to increase load capacity and ensure stable support for large screens. A quick-release spring lock enables fast and easy removal of the TV, while the slim 3.5 cm distance to the wall gives a neat, space-saving appearance. The mount is supplied in black finish and is suitable for a single display up to 120 kg.

Suitable for

• Mounting large flat-panel TVs from 60" to 120"
• Environments where a low-profile, fixed installation is required
• Rooms where rear cable routing and a wall socket behind the TV are needed

Key specifications

• Maximum screen size: 120"
• Maximum weight capacity: 120 kg

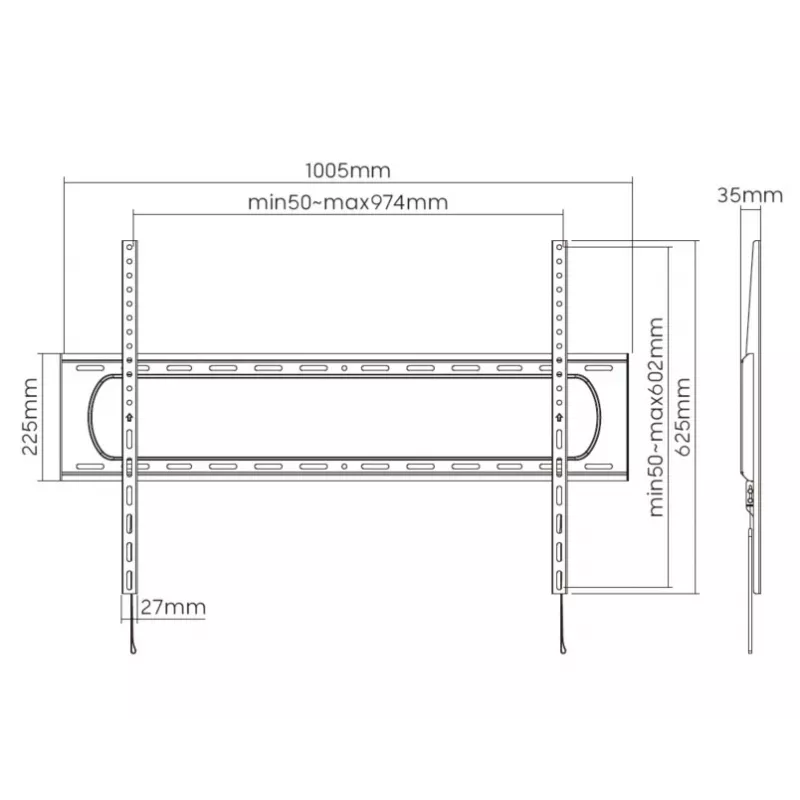

• VESA compatibility: minimum 50 x 500 mm, maximum 900 x 600 mm

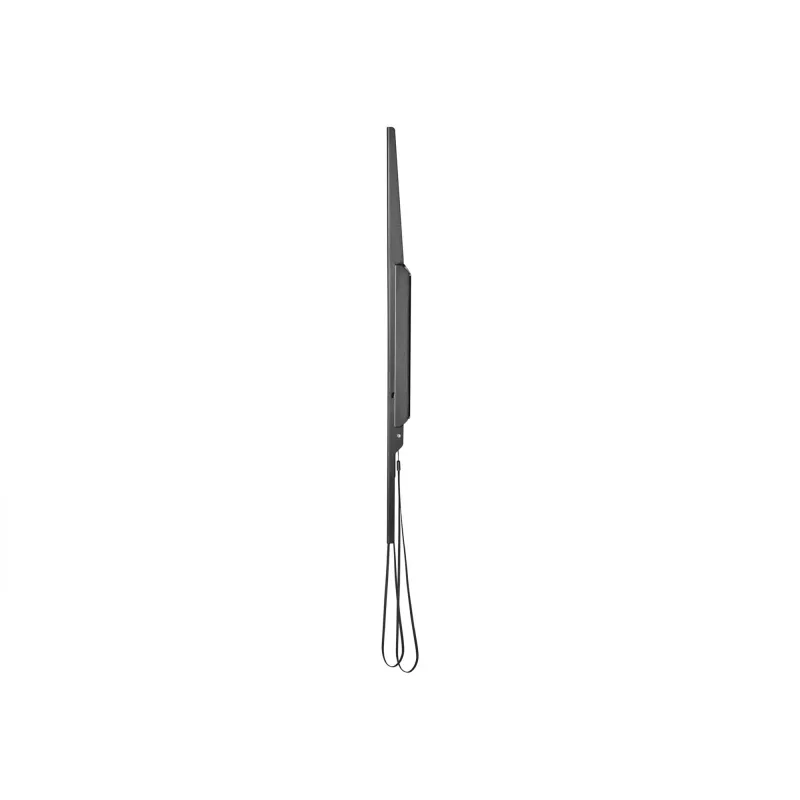

• Mount type: fixed / low-profile (approx. 3.5 cm from wall)
• Colour: Black
• Product weight: 3.16 kg
• Number of displays supported: 1

How to use

Secure the bracket to a suitable load-bearing wall following the mounting instructions and using appropriate fasteners for the wall material. Attach the compatible VESA adapters to the TV, lift the display onto the bracket and engage the quick-release spring lock to secure the set in place. Route power and signal cables through the central opening and connect them to the wall socket or devices as required.

Recommendations

Check the TV weight and VESA pattern before installation to confirm compatibility with the bracket's maximum weight capacity (120 kg) and supported VESA sizes. Use appropriate wall fixings and, if uncertain about the wall structure, consult a qualified installer.
