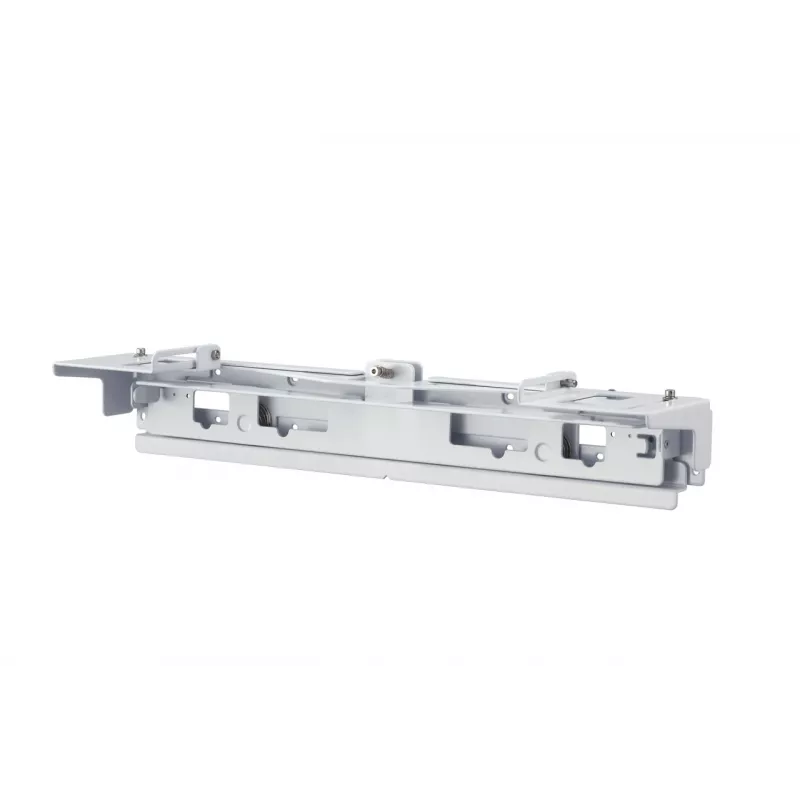

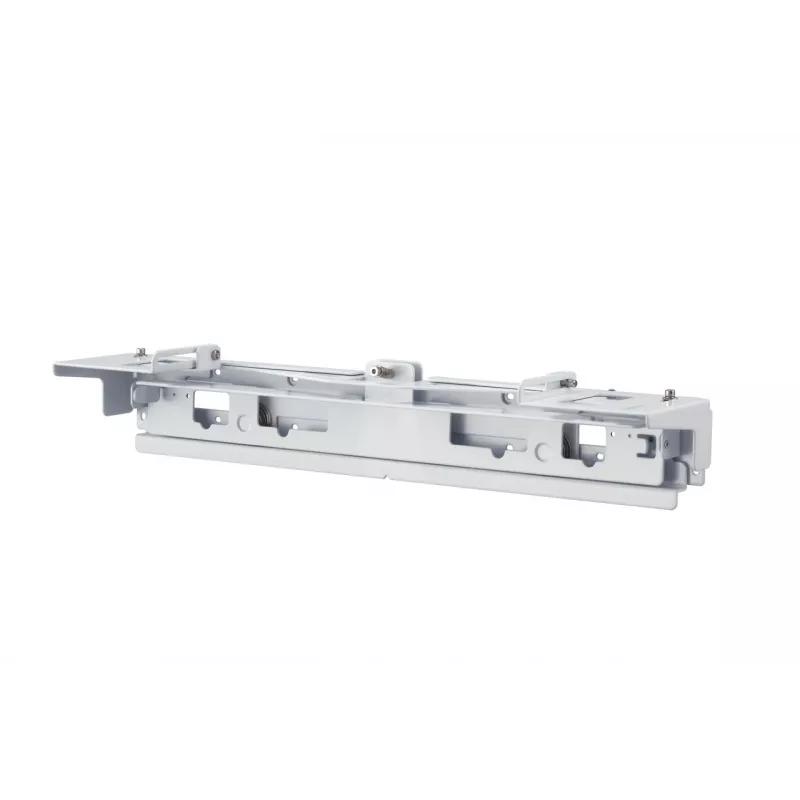

Suporte de parede para sistema de toque Epson ELPFT01 — ELPMB63, cinzento, compacto (135×575×125 mm)

The Epson ELPMB63 wall bracket is designed to mount the ELPFT01 finger touch system together with compatible Epson projectors, providing stable and reliable support in interactive display setups. Finished in grey, the compact bracket measures 135 × 575 × 125 mm (W × D × H) and is supplied as a single unit. The bracket supports fixed wall installation and keeps the touch system and projector aligned for accurate touch interaction and projection geometry.

Advantages

The compact dimensions and robust construction of this wall bracket allow for secure mounting in classrooms, meeting rooms and public spaces while minimizing visual impact. Its grey finish blends with most interiors and reduces reflections near the projector. Supplied as a single unit, the bracket simplifies procurement and ensures consistent mounting parts for repeat installations.

Suitable for

• Mounting the ELPFT01 finger touch system with compatible Epson projectors such as interactive models
• Fixed wall installations in classrooms and lecture halls
• Meeting rooms and collaboration spaces requiring a stable touch-projection setup
• Public information displays where durable mounting and alignment are required

Key specifications

• Material: metal construction designed for stable support
• Colour: grey
• Dimensions (W × D × H): 135 × 575 × 125 mm
• Packaging: supplied as a single unit
• Mount type: fixed wall bracket for projector and touch system alignment

How to use

Position the bracket on a suitable load-bearing wall at the desired mounting height, ensuring the surface can support the combined weight of the projector and finger touch system. Mark and drill mounting holes according to the bracket’s mounting pattern, insert appropriate wall anchors or fixings for the wall type, and secure the bracket using compatible bolts. Attach the ELPFT01 finger touch system and the projector to the bracket, then adjust alignment and secure all fasteners. Verify projector-to-touch alignment and make any necessary fine adjustments for accurate touch registration.

Recommendations

For safe and reliable operation, install the bracket on a structurally sound wall and use load-rated fixings appropriate for the wall material. Follow the projector and touch system installation guides for torque and alignment specifications, and perform periodic checks of mounting fasteners to maintain stable performance.
