Suporte de parede para TV Vision VFM-W6X4T 190,5 cm 75" preto

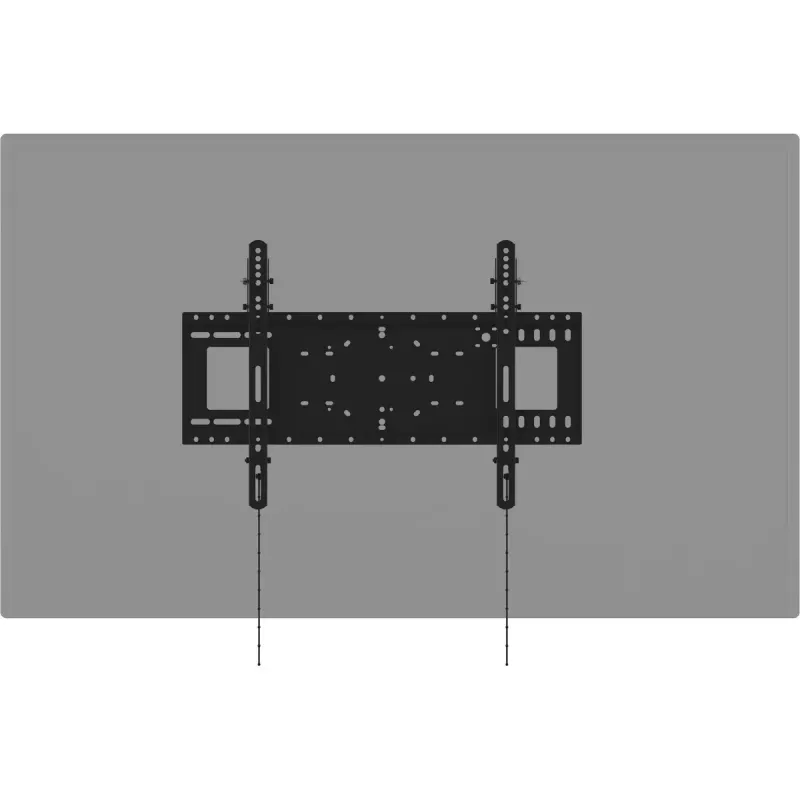

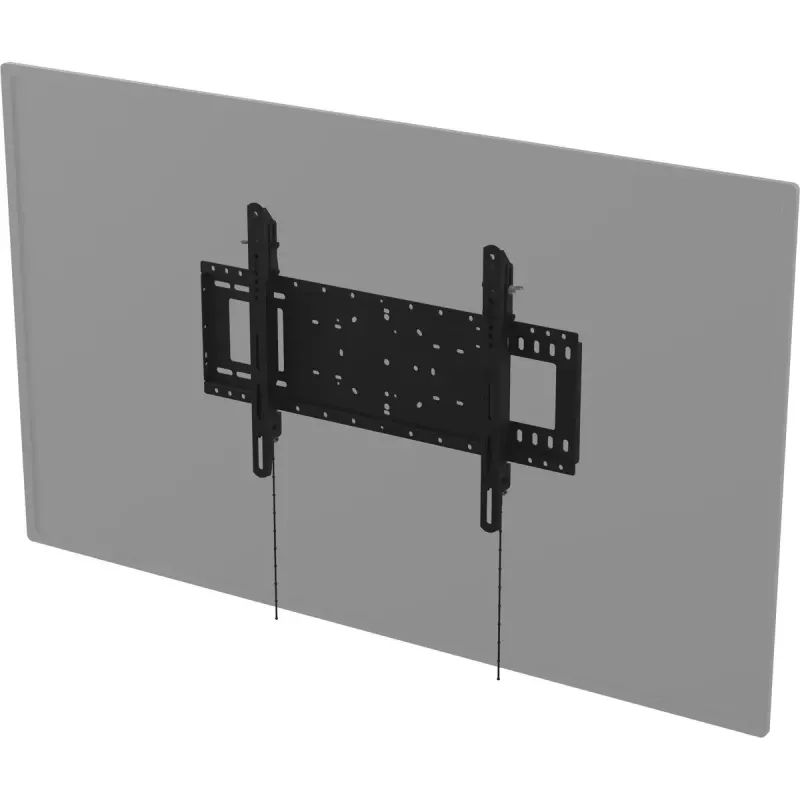

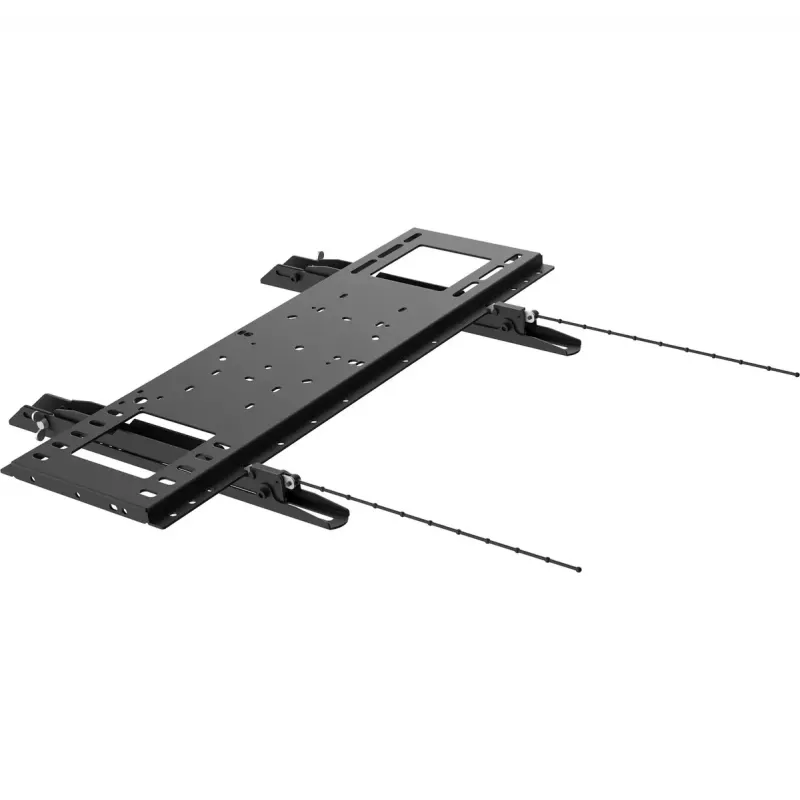

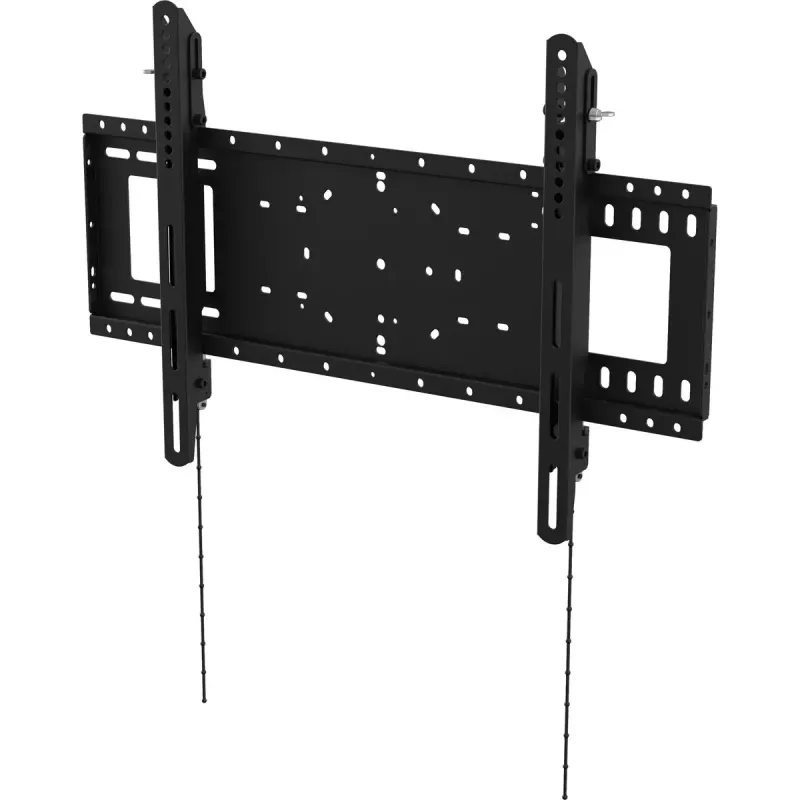

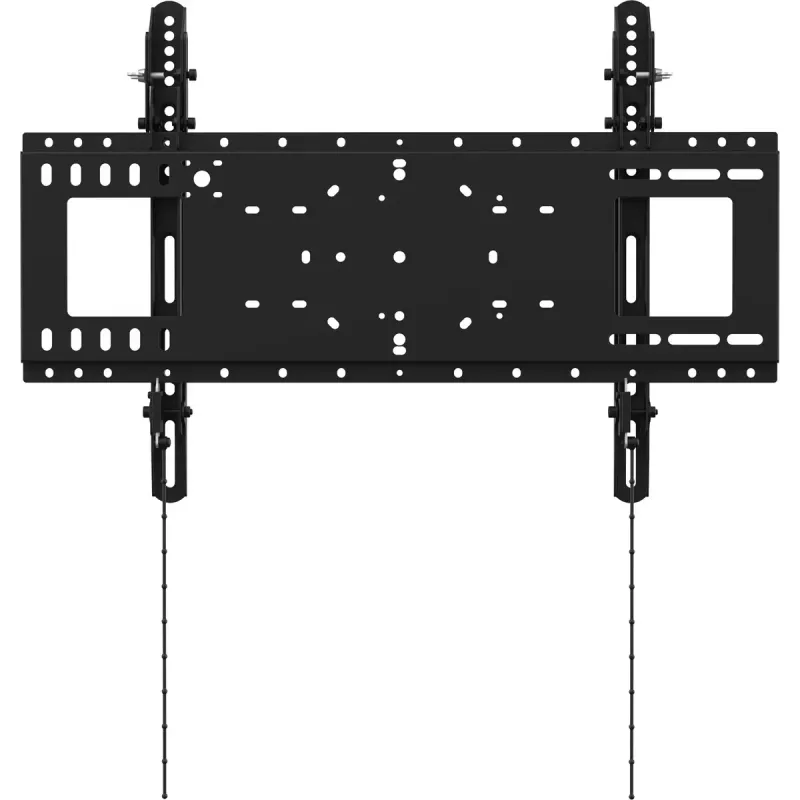

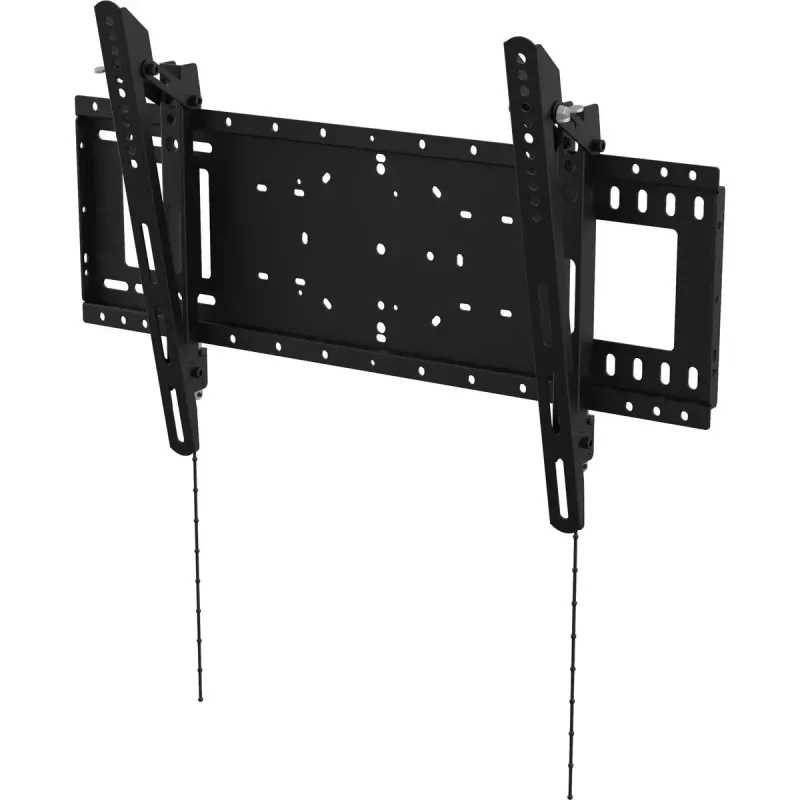

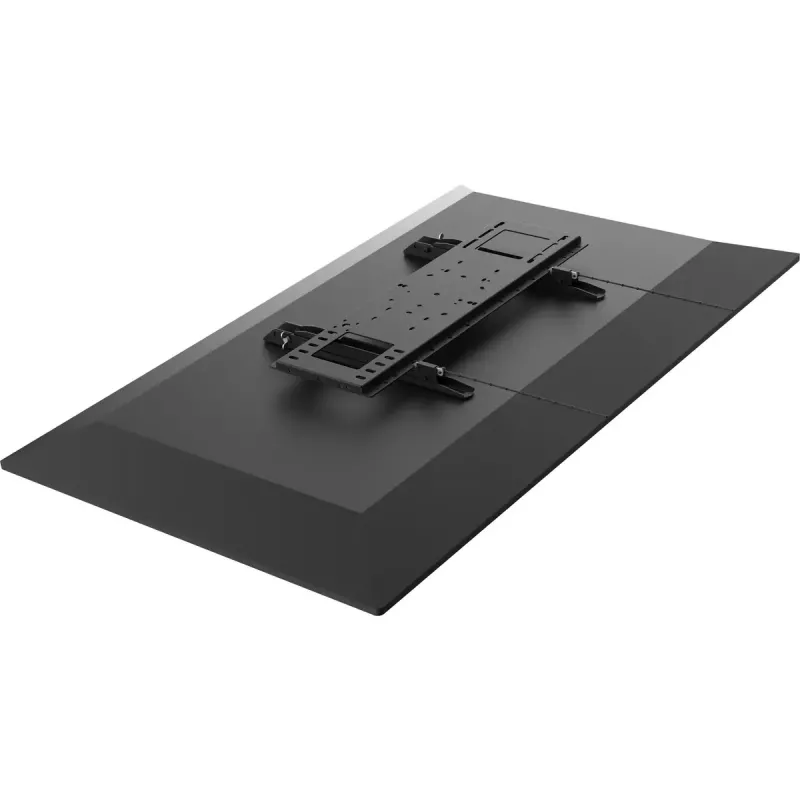

Vision VFM-W6X4T is a heavy-duty flat-panel wall mount designed for professional AV installation. It supports flat LCD and LED screens with rear mounting holes up to 600 x 400 mm (W x H), fits most displays from 37" to 75" (94–190.5 cm), and has a safe working load of 100 kg. The mount sits 45 mm from the wall and provides a low-profile, secure fixing with tilt capability.

Advantages

The VFM-W6X4T uses heavy gauge sheet metal for increased strength and a high safe working load rating. The product includes a comprehensive set of M5, M6 and M8 bolts in various lengths for attaching the vertical arms to the display. The slim 45 mm offset reduces snagging risk and improves structural performance. Slotted holes in the wall plate allow levelling adjustment after fixing, and the horizontal section latches the display securely with removable plastic pull-rods for easy unlatching. Optional accessories are available to expand functionality, including a flip-up side shelf and a central video conference shelf. Curved screens are not supported.

Suitable for

Key specifications

How to use

Fix the wall plate to a suitable load-bearing wall using appropriate anchors and fixings for the wall material (not supplied). Attach the vertical arms to the display using the supplied M5, M6 or M8 bolts as required by the display’s VESA pattern. Hang the display on the horizontal section so it latches in place, then adjust levelling via the slotted holes on the wall plate. Remove excess length from the plastic pull-rods so they sit hidden behind the display; pull them down to release the latch when removing the display. For dual-display setups, two horizontal sections can be joined side by side.

Recommendations

Use appropriate wall fixings rated for the combined weight of mount, display and any added accessories. Do not use this mount with curved screens. For installations above eye level, apply the 12° tilt to improve viewing angles. Consider the optional side shelf (VFM-WSS) or video conference shelf (VFM-WVC) when mounting cameras or media players behind the display. Follow local building codes and ADA guidelines where applicable.
