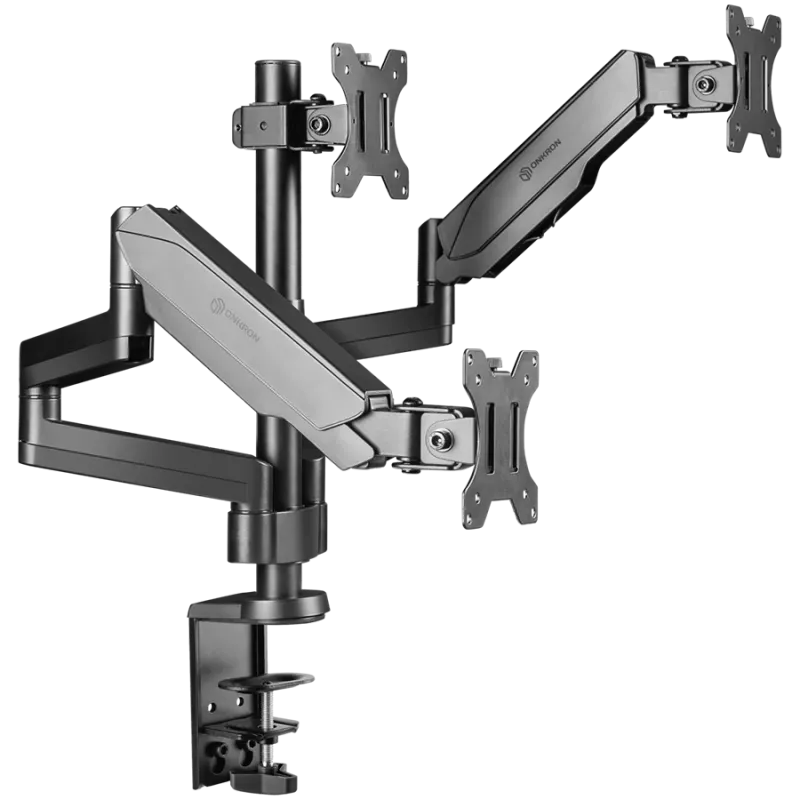

Suporte de secretária para monitor ONKRON G280-B para ecrãs de 33–81,3 cm (13 polegadas–32 polegadas), morsa/passagem pela secretária, até 24 kg, VESA 75x75–100x100

ONKRON G280-B is a desk monitor mount compatible with screens from 33 cm (13") to 81.3 cm (32"). It supports both desk-edge clamp and grommet (through-desk) installation and accommodates VESA patterns 75×75 mm and 100×100 mm. The mount supports up to three displays with a combined maximum load of 24 kg and allows height, tilt and swivel adjustments for ergonomic positioning.

Advantages

The mount supports three monitors while maintaining a compact desk footprint and offers a wide range of motion including tilt between -45° and +90°, 180° swivel and extension up to 757 mm. Constructed from steel, aluminium and plastic, it provides stable support for screens between 33 cm and 81.3 cm and enables both portrait and landscape orientation to suit different workflows.

Suitable for

• Multi-monitor workstations in office or home environments
• Trading, programming, design and data analysis setups
• Users who need portrait and landscape orientations

Key specifications

• Supported screen size: 33 cm (13") – 81.3 cm (32")
• Number of displays supported: 3
• Load capacity per arm: 1–8 kg
• Maximum total weight capacity: 24 kg
• VESA compatibility: 75×75 mm, 100×100 mm
• Tilt range: -45° to +90°
• Swivel range: 180°
• Extension range: 0–757 mm
• Vertical adjustment: 0–650 mm
• Screen orientation: portrait and landscape
• Mounting options: desk-edge clamp or grommet (through-desk)
• Materials: steel, aluminium, plastic

How to use

Attach each monitor to the corresponding VESA plate using suitable screws, then secure the mount to the desk using either the edge clamp or the grommet through the desk hole. Adjust the height and arm extension to align the screens at the desired viewing level, set tilt and swivel angles for comfortable viewing, and lock fasteners as required to maintain position.

Recommendations

Ensure the combined weight of attached monitors does not exceed 24 kg and that each monitor falls within the 1–8 kg per-arm range. Verify VESA compatibility (75×75 or 100×100 mm) and use appropriate screws for your monitors. Periodically check and tighten fasteners to maintain stability.
