Suporte de TV/base Chief MSM1U 119,4 cm (47 polegadas) preto

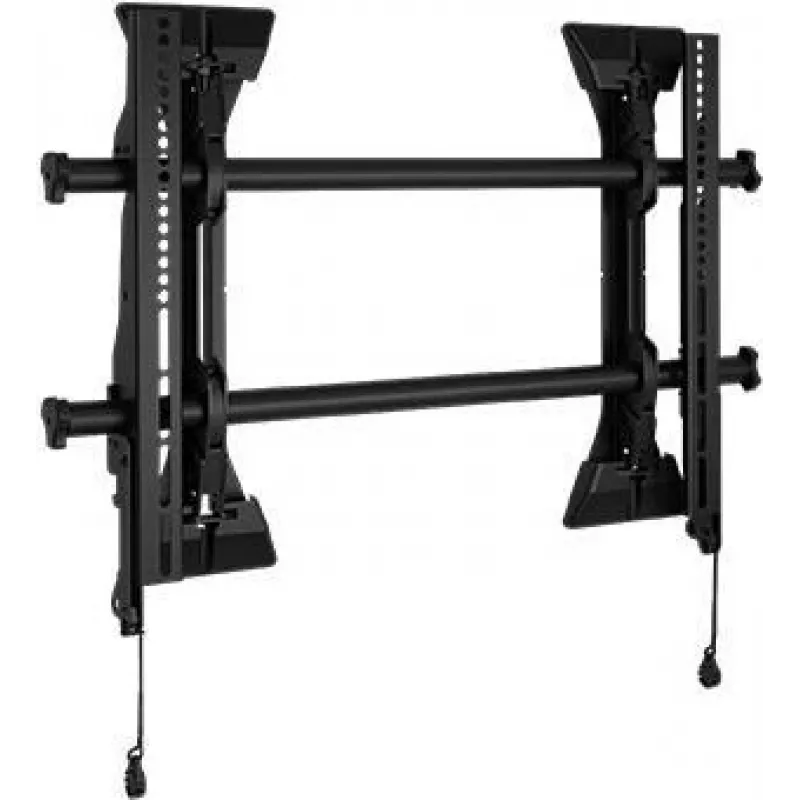

The Chief MSM1U fixed TV mount is designed for flat-panel displays from 26" (66 cm) up to 47" (119.4 cm) and supports up to 57 kg. The mount is compatible with VESA patterns from 100 x 100 mm to 650 x 400 mm and provides a low-profile, installer-focused solution for home or office wall installations.

Advantages

The MSM1U incorporates installer-driven improvements—integrated teardrop wall plate for faster bolt alignment, ControlZone leveling for post-installation height and level adjustments, and Centerless Shift that allows up to 327 mm (12.9") of lateral movement for precise centering. ClickConnect gives an audible confirmation when the display engages, set screws maintain rigidity and security, and built-in cable management and Quick-Store cords simplify access and organization. The mount ships with a custom hardware kit, supports multiple stud patterns, and includes nesting spacers for adjustable depth.

Suitable for

• Mounting a single flat-panel TV from 26" to 47" (66–119.4 cm)
• Installations requiring VESA compatibility from 100 x 100 mm to 650 x 400 mm
• Wall installations where low-profile, secure mounting and post-install adjustment are needed

Key specifications

• Supported screen sizes: 26"–47" (66–119.4 cm)
• Maximum weight capacity: 57 kg
• VESA compatibility: 100 x 100 mm to 650 x 400 mm
• Color: Black
• Number of displays supported: 1

How to use

Position the teardrop-style wall plate and pre-install the bolts to the wall. Hang the mount rails on the plate, attach the appropriate hardware to the display using the correct VESA pattern, then lift the display onto the mount until ClickConnect engages. Use ControlZone leveling to fine-tune height and level, and Centerless Shift to adjust lateral position up to 327 mm. Tighten set screws to secure the mount and route cables through the built-in cable stand and end caps.

Recommendations

For safe and durable installation, install into appropriate wall studs or structural anchors, verify the TV weight and VESA pattern match the MSM1U specifications, and tighten all fasteners. Use the supplied custom hardware and follow local building codes; consider professional installation for heavy or high mounts.
