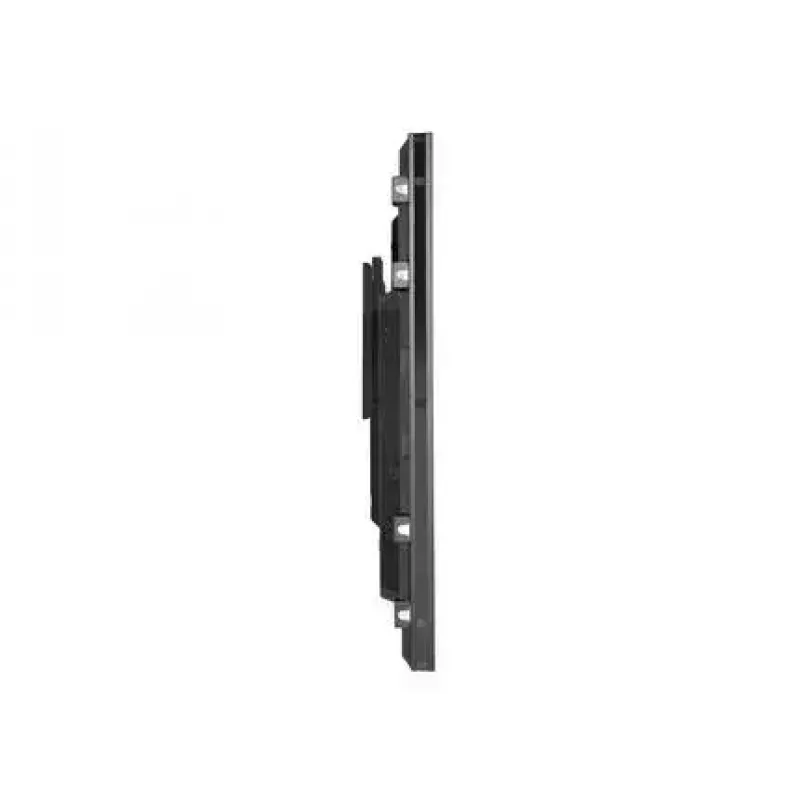

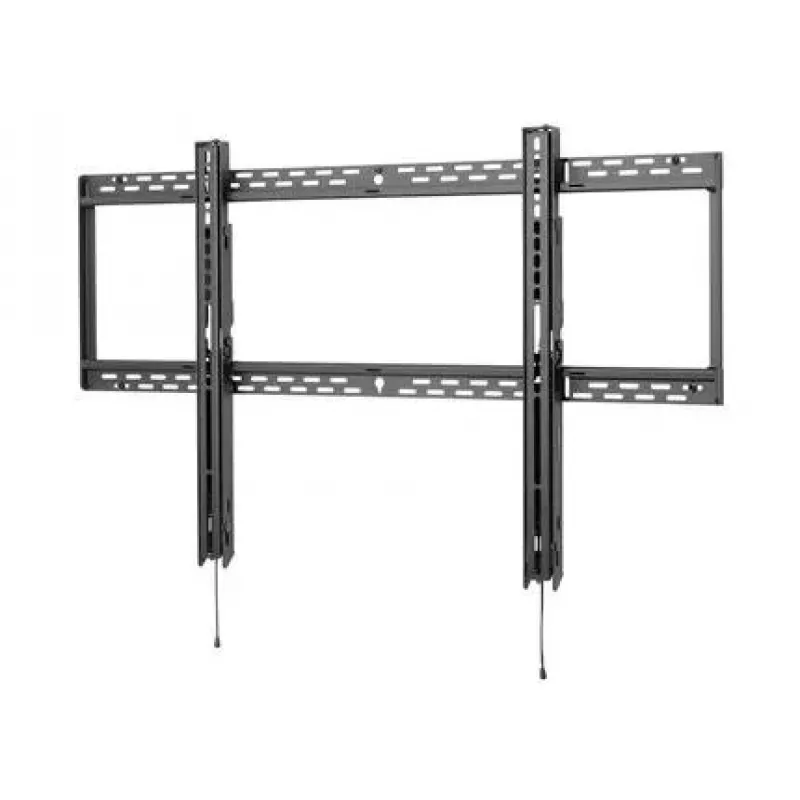

Suporte de TV/base Peerless SF680P 2,49 m (98 polegadas) Preto

The Peerless SF680P Universal Flat Wall Mount provides an ultra-slim profile for securely mounting large displays. Designed for screens from 68" up to 98" and a maximum weight capacity of 158 kg (350 lb), this black mount combines a low-profile look with heavy-duty construction suitable for residential and commercial installations. Built-in features simplify installation and cable routing while ensuring the display remains securely supported.

Advantages

The mount includes auto-latching adaptor rails that secure the display without tools, a built-in kickstand that supports the display away from the wall during cable connection, and an open wall plate for improved electrical and cable management. Horizontal and vertical adjustment options allow for fine-tuning the display position after installation. The slim design reduces the gap to the wall while supporting very large, heavy screens.

Suitable for (tasks / use cases)

• Mounting large residential TVs (68"–98")
• Commercial digital signage and video walls
• Conference room and auditorium displays
• Retail and public-area screen installations

Key specifications

• Model: Peerless SF680P
• Maximum screen size: 98"
• Maximum weight capacity: 158 kg (350 lb)
• Product weight: 7.8 kg
• Colour: Black
• Brand: Peerless‑AV
• MPN: SF680P
• EAN: 735029242246

How to use

Locate and mark appropriate wall studs or mounting surface, following local building codes and load requirements for heavy displays. Attach the open wall plate to the wall, then fit the adaptor rails to the display and lift it onto the mount. The auto-latching rails will secure the display in place without additional tools. Use the built-in kickstand to hold the screen away from the wall while routing cables, then release the kickstand and perform horizontal and vertical adjustments to fine-tune the position.

Recommendations

Verify that the wall structure and fasteners are rated for the display weight (158 kg). Use appropriate lag bolts or anchors for the substrate, and follow the manufacturer’s installation instructions. For safety and optimal results, two or more persons may be required to lift and position large screens.
