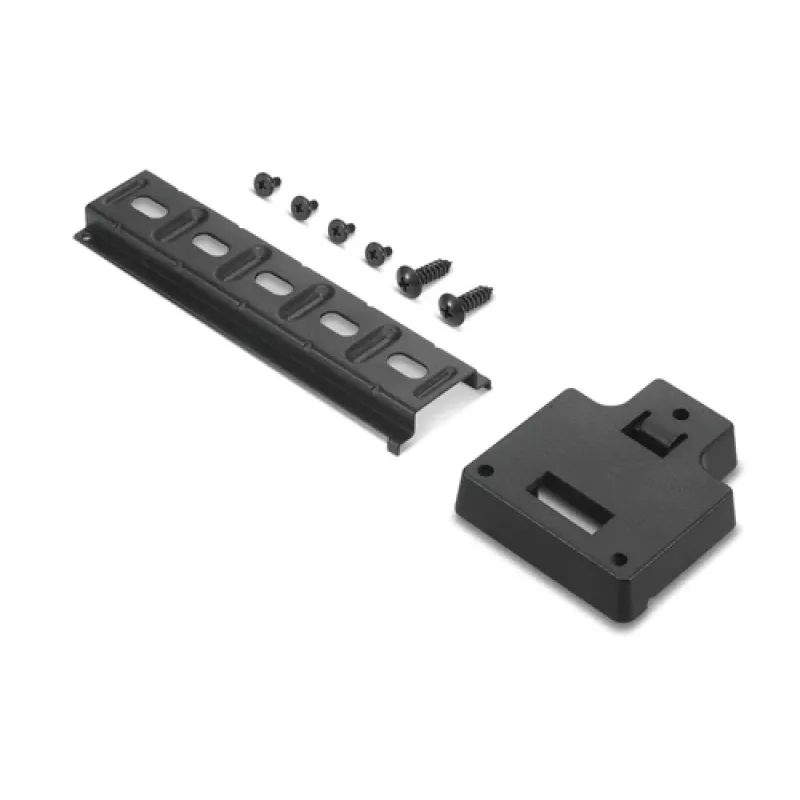

Suporte para calha DIN para Lenovo ThinkEdge SE30 (acessório, modelo 4XH1G07099)

The DIN rail mount for Lenovo ThinkEdge SE30 is an accessory designed to attach the industrial edge server securely to standard DIN rails. It enables compact, organized installation of the ThinkEdge SE30 in control panels, network cabinets, and industrial racks while preserving access to ports and ventilation. The mount is tailored to fit the server's dimensions and mounting points to provide a stable connection that resists vibration and movement in industrial settings.

Advantages

This DIN rail mount offers reliable mechanical support and space-saving placement for the Lenovo ThinkEdge SE30 without altering the server. It simplifies installation by aligning mounting points and reducing the need for additional brackets or custom fixtures. The design maintains access to rear and side connectors for easy cabling and service, and it facilitates consistent ventilation and heat dissipation by positioning the unit correctly on the rail.

Suitable for

• Industrial automation cabinets and control panels
• Network equipment racks and DIN-rail subracks
• Edge computing deployments in constrained spaces
• Environments requiring vibration-resistant mounting

Key specifications

• Form factor: DIN rail mounting bracket compatible with standard 35 mm DIN rails
• Compatibility: Designed for Lenovo ThinkEdge SE30 physical dimensions and mounting points
• Material: durable metal construction for mechanical stability
• Finish: corrosion-resistant coating suitable for industrial environments
• Mounting method: snap-on or screw-secured attachment to rail for stable retention
• Access: keeps rear and side I/O accessible for cabling and service

How to use

Mount the bracket onto a standard 35 mm DIN rail following the orientation that preserves air flow and port access. Position the Lenovo ThinkEdge SE30 onto the bracket so that the server’s mounting points align with the accessory’s attachment points, then secure the unit with the supplied fasteners or engage the bracket’s retention clip depending on the mounting method. After installation, route network, power, and peripheral cables with appropriate strain relief and verify that ventilation paths remain unobstructed before powering the system.

Recommendations

Install the DIN rail mount in environments that meet the server’s operating conditions; use appropriate cable management and grounding practices. Periodically check fasteners and rail attachment for signs of loosening, and avoid obstructing airflow or placing the server in locations with excessive dust, moisture, or heat without appropriate environmental protection.
