Suporte para ecrã de sinalética Chief LVS1U 2,03 m (80 polegadas) preto

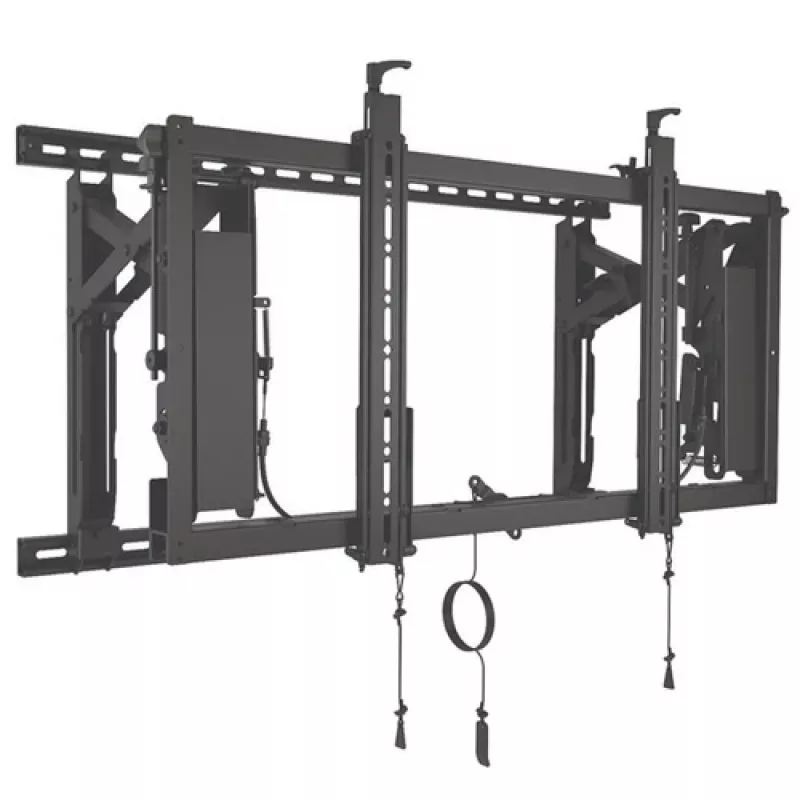

The Chief ConnexSys LVS1U signage display mount is a landscape video wall mounting solution designed for fast installation, accurate alignment and easy serviceability. It supports a single display from 42" to 80" with a maximum weight capacity of 68 kg, accepts VESA patterns from 200 x 100 mm up to 700 x 400 mm, and comes in a black finish. The system uses strut channel to connect multiple mounts and ships with rails for each mount to simplify row-level alignment.

Advantages

The LVS1U system reduces installation time by allowing mounts to hang on a single strut channel for quick row leveling and eliminates the need for horizontal spacers. Tool-free ClickConnect™ latching secures displays and PowerZone™ provides six points of adjustment in one accessible location at the top of the mount. Each unit ships with adjustments preset to the same positions for consistent setup, and the rigid frame maintains display alignment even after extending for service. Security provisions include a padlock option (1/4" shank diameter) and the product has undergone safety testing.

Suitable for

• Commercial video walls in retail, corporate or public spaces
• Large single-display signage installations from 42" to 80"
• Environments requiring rapid row-level alignment and repeatable mounting

Key specifications

• Brand: Chief
• Model: LVS1U
• Mount orientation: Landscape
• Supported screen size: 42"–80"
• Maximum weight capacity: 68 kg
• VESA compatibility: 200 x 100 mm to 700 x 400 mm
• Finish: Black
• Includes rails for each mount; compatible with 1-5/8" channel strut

How to use

Install the strut channel at the required row height and attach the provided rails for each LVS1U mount. Hang the mounts on the single strut channel to level the entire row at once, using vertical measurement equal to the display height to position the next rail. Secure displays with the tool-free ClickConnect™ latch and fine-tune position using the PowerZone™ top adjustment points. For service, extend the mount as needed; the rigid frame and adjustable home depth will retain screen alignment when returned to position.

Recommendations

Use compatible 1-5/8" channel strut for best fit and ensure each mount's adjustments remain preset before installation. Verify VESA pattern and weight of the display do not exceed 700 x 400 mm and 68 kg respectively. For enhanced security in public areas, use a padlock with a 1/4" shank diameter.
