Suporte para ecrã de sinalização Vision VFM-W4X4 152,4 cm (60 polegadas) preto

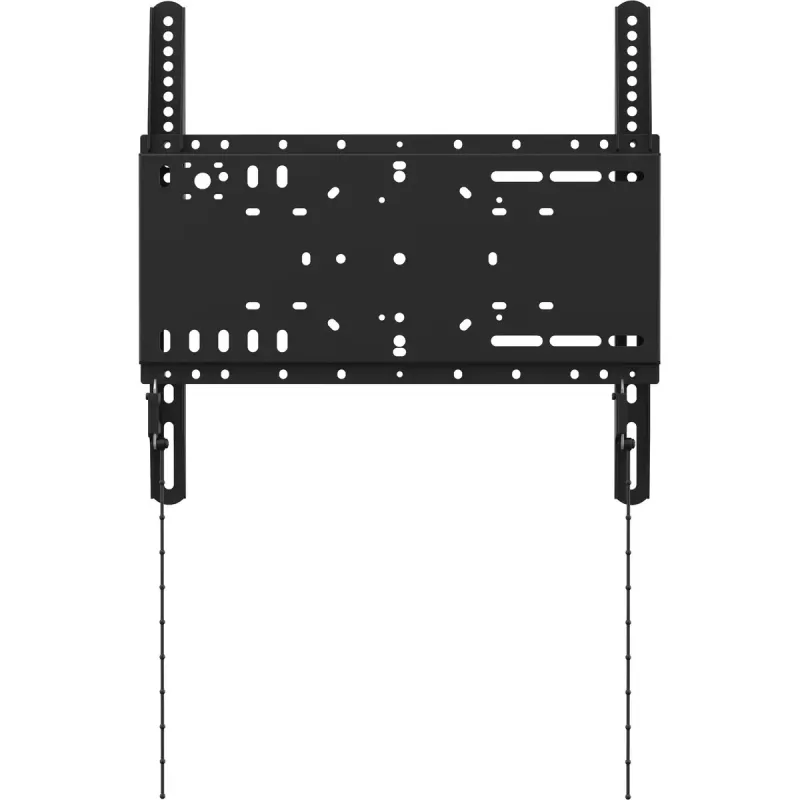

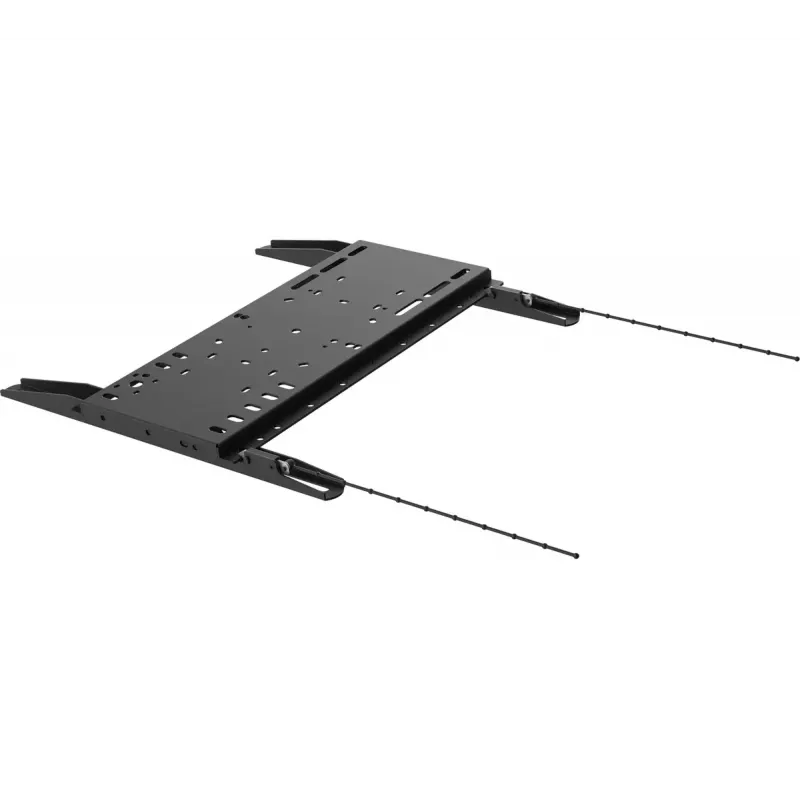

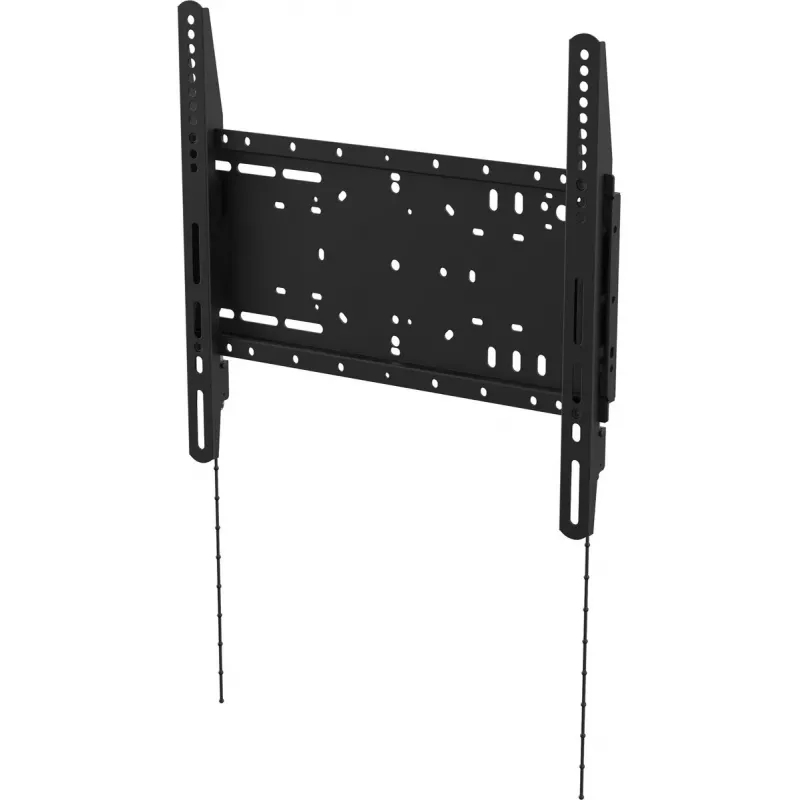

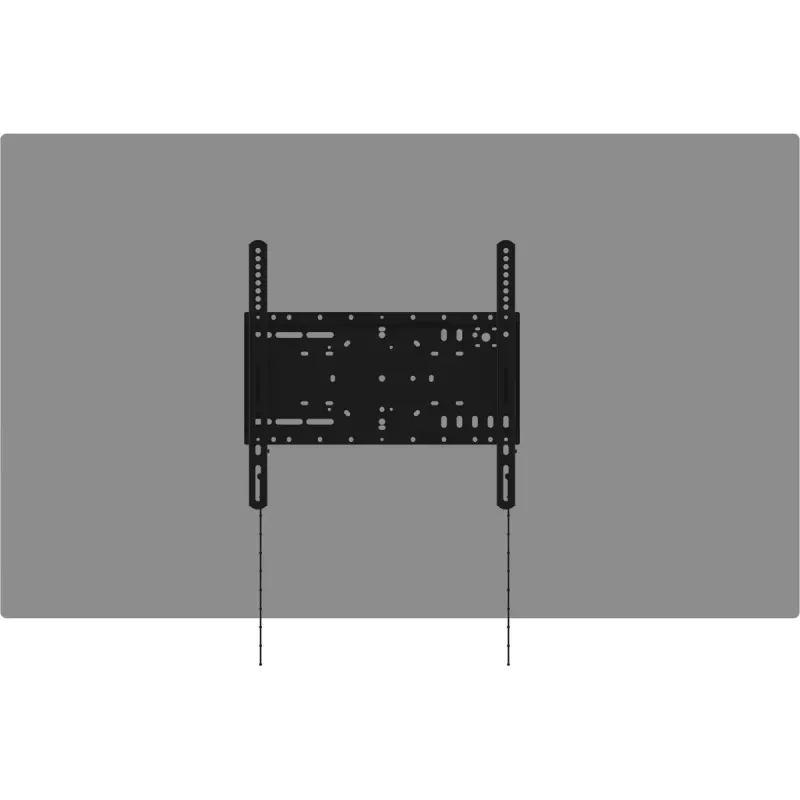

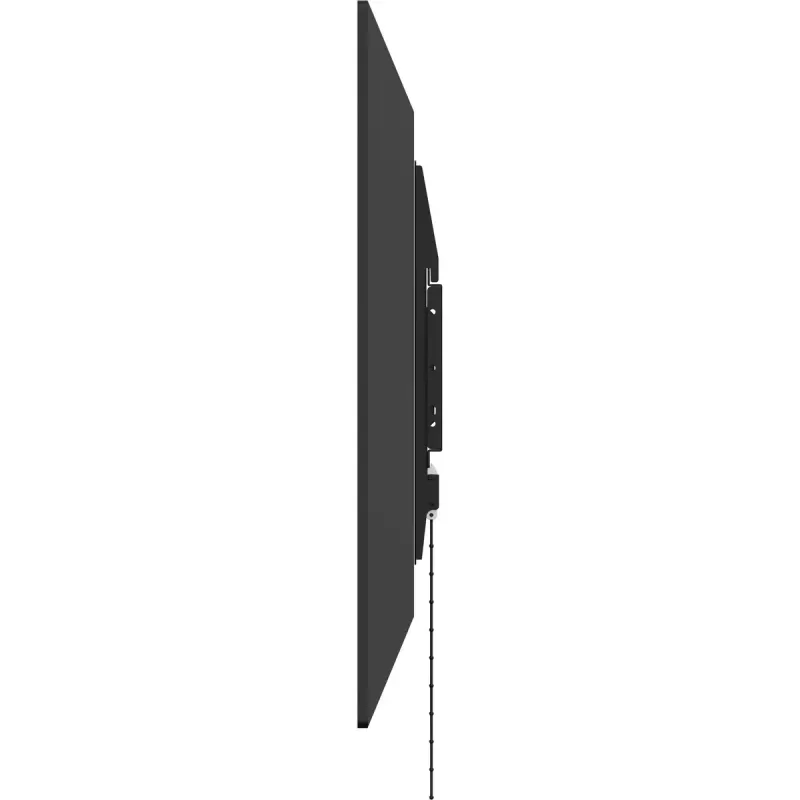

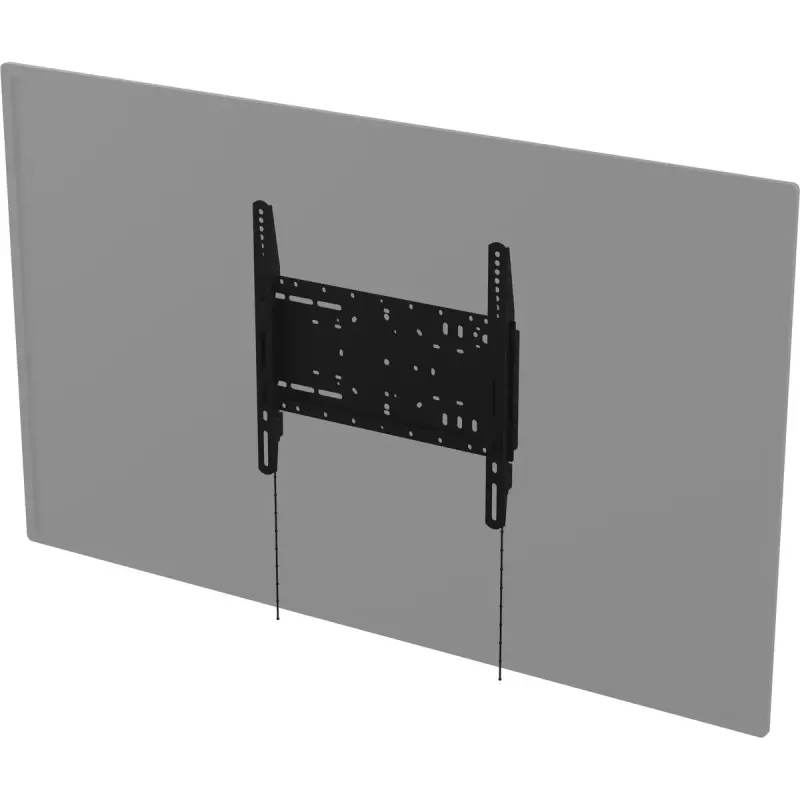

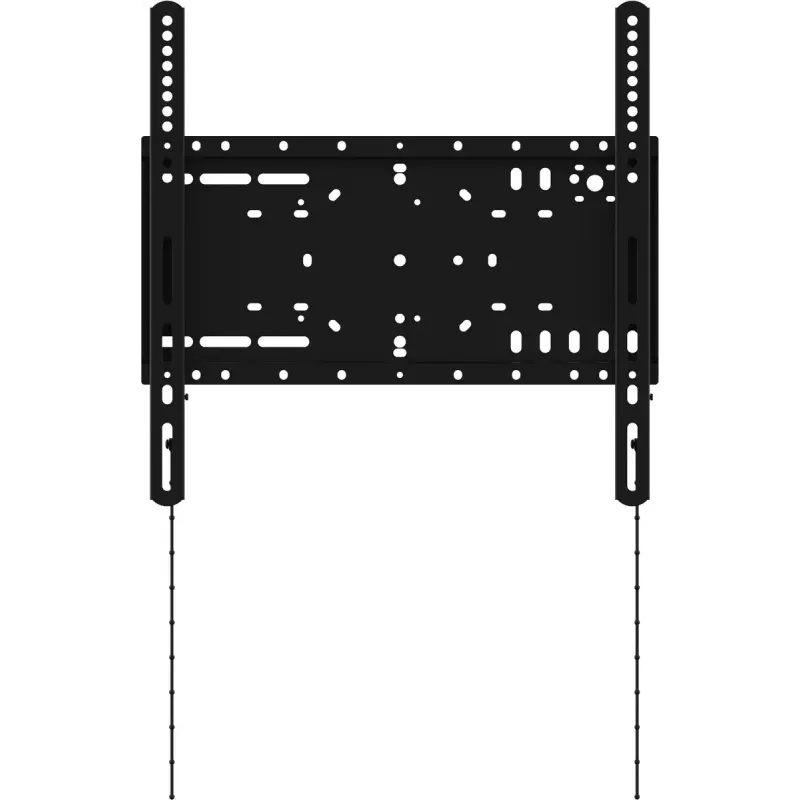

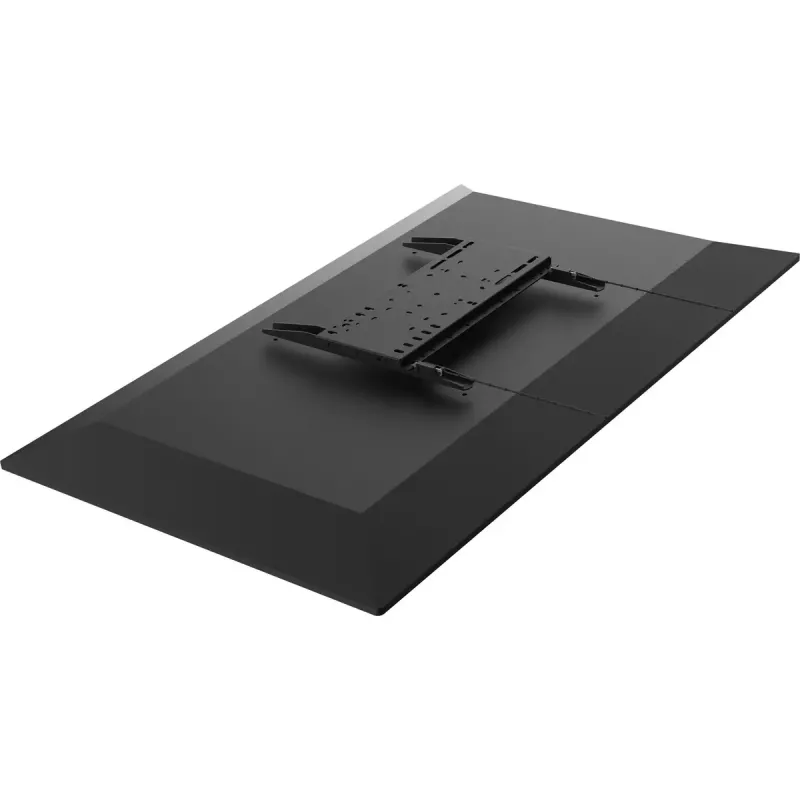

Vision’s VFM-W4X4 is a heavy-duty flat-panel wall mount designed for professional AV installation. It supports flat LCD and LED screens with rear VESA mounting holes up to 400 x 400 mm and is rated for displays from 37" to 60" with a safe working load up to 100 kg. The mount features a slim profile that positions the display approximately 30 mm from the wall and includes all necessary bolts for attachment.

Advantages

The VFM-W4X4 uses heavy-gauge steel for high load capacity and a compact profile to keep the load close to the wall, increasing stability. Horizontally slotted holes allow post-fix leveling and side-to-side adjustment. The system supports side-by-side installation by joining horizontal sections and offers optional accessories such as a rotary bearing for portrait/landscape rotation, a video-conference shelf that fits cameras and base stations, a flip-up laptop shelf, and brackets for Logitech Rally components. VESA 100 x 100 mm fixing points are provided for small devices or enclosures, and the display latches securely to the horizontal rail with removable pull-rods for concealed installation.

Suitable for

Key specifications

How to use

Fix the horizontal rail securely to a stud or masonry wall using appropriate fixings. Attach the vertical arms to the rear VESA holes of the display using the supplied M5, M6, and M8 bolts of suitable length. Hang the display on the horizontal rail; the display will latch into place. Use the vertical slotted holes for leveling and side-to-side adjustment after mounting. If rotation is required, install the optional rotary bearing assembly and secure the vertical arms from behind to prevent downward movement when switching to portrait orientation. Fit optional accessories—video-conference shelf, laptop shelf, or Logitech Rally brackets—using the provided VESA 100 x 100 mm holes where applicable.

Recommendations

Install using qualified personnel and fixings rated for the wall type and the load. Verify display weight and VESA pattern compatibility before installation. For rotating installations or dual displays, ensure all accessory fastenings are tightened and supported by the wall structure. Keep cables routed safely and allow clearance for ventilation behind the screen.
