Suporte para monitor Ergotron TRACE 45-630-216

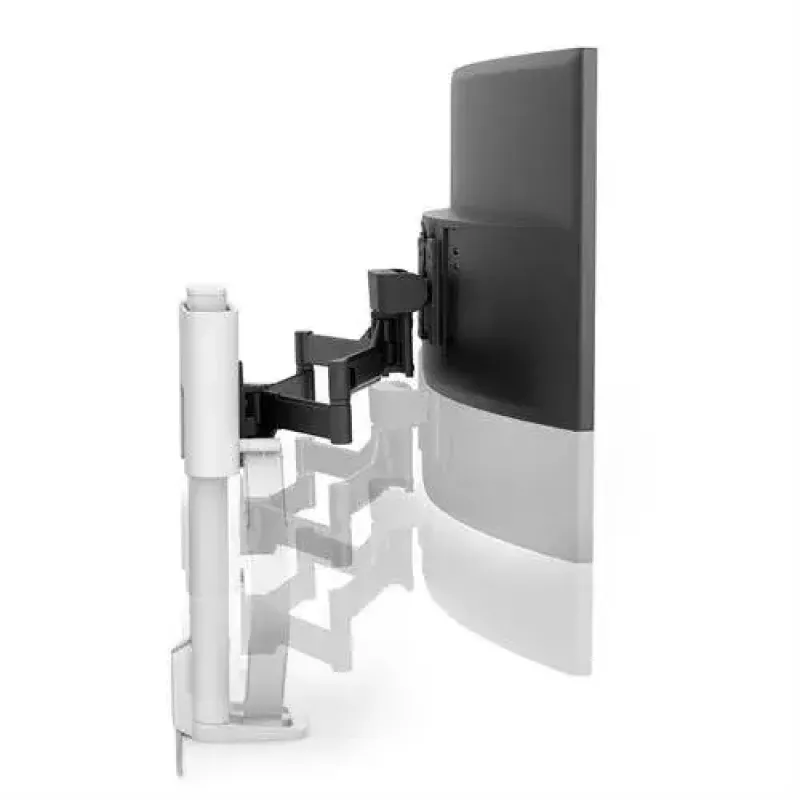

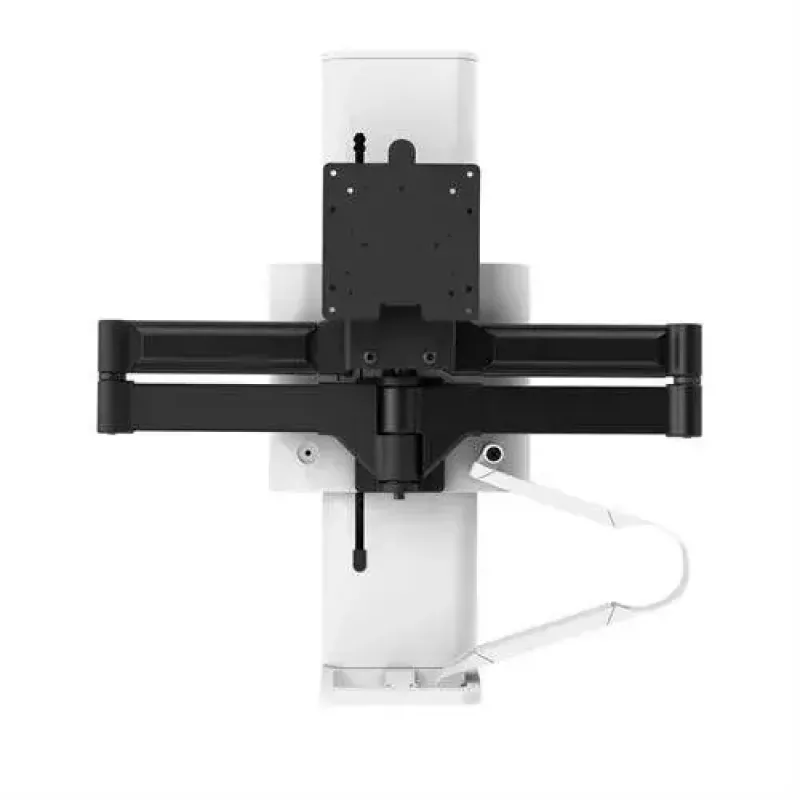

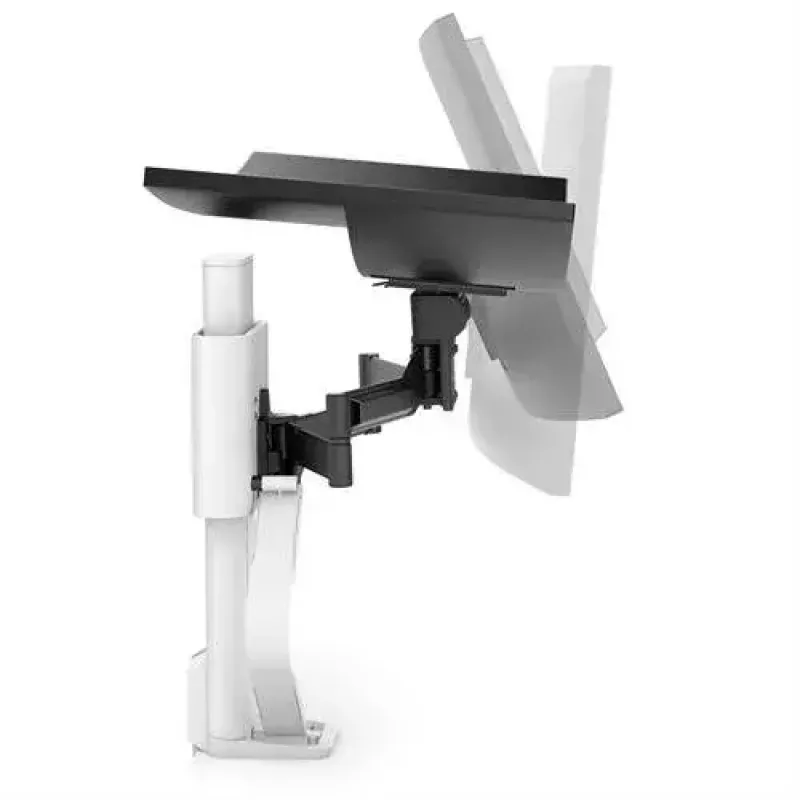

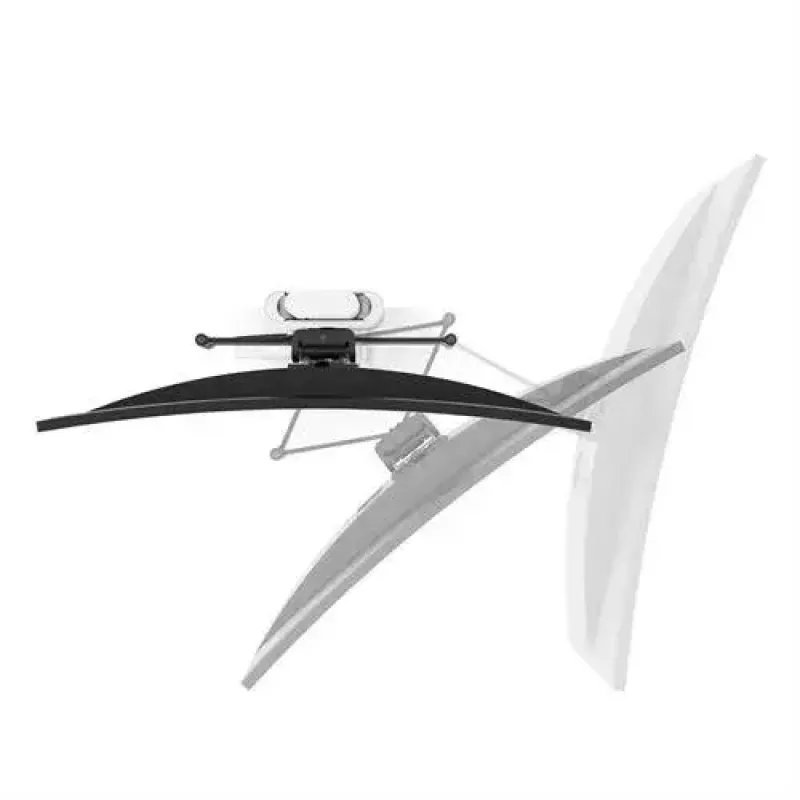

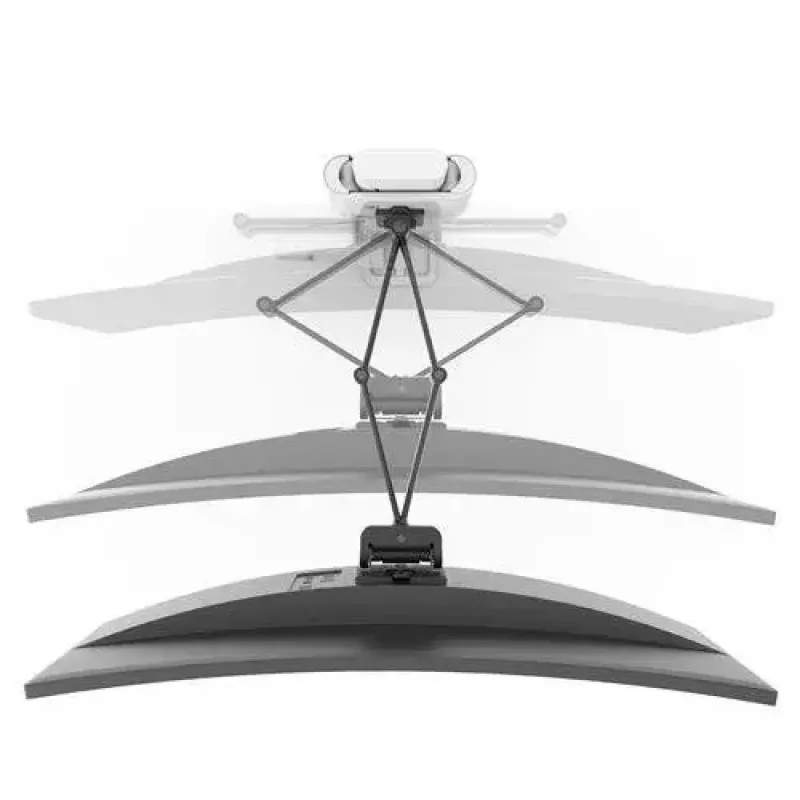

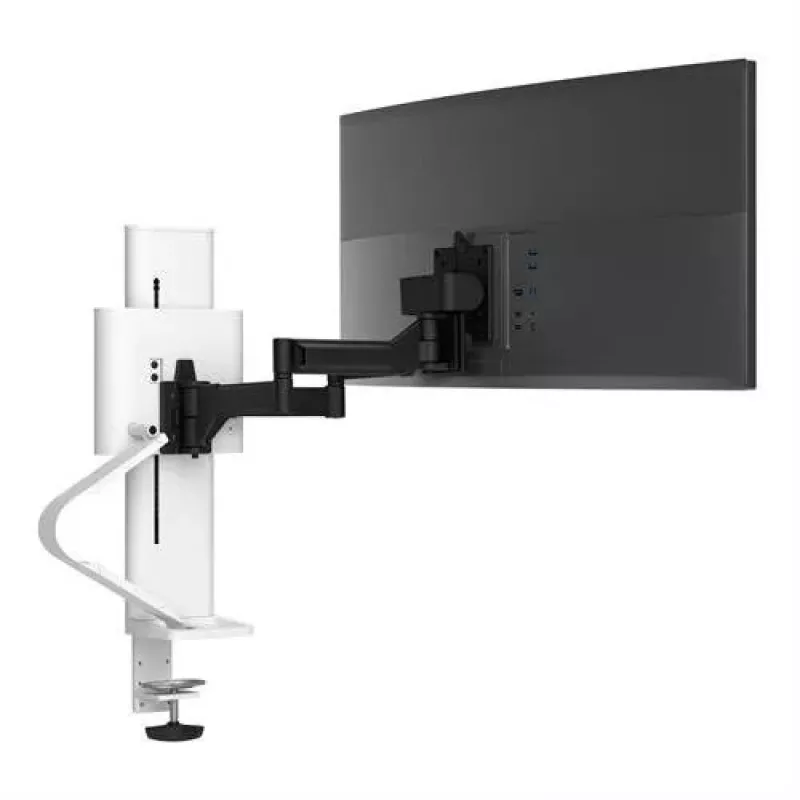

The Ergotron TRACE 45-630-216 monitor mount supports single screens up to 38" (96.5 cm) and a maximum weight of 9.8 kg. It provides height adjustment and a wide tilt range from 0° to 80°, returning naturally to a neutral home position. The mount fits VESA patterns from 75 x 75 mm to 100 x 100 mm, installs with a desk clamp, and comes in a white finish. The design is modular and backed by a 15-year warranty.

Advantages

The TRACE mount offers intuitive, posture-friendly adjustment that adapts between tasks and encourages movement and collaboration. Its modular construction allows flexible configuration and long-term use, and the 15-year warranty supports a durable investment. Compact clamp installation and broad VESA compatibility simplify setup for most monitors up to 38".

Suitable for

• Home office workstations
• Corporate desks and open-plan offices
• Hot-desking and shared workspaces
• Users who switch between sitting and standing

Key specifications

• Model: Ergotron TRACE 45-630-216
• Maximum screen size: 38" (96.5 cm)
• Maximum weight capacity: 9.8 kg
• VESA compatibility: 75 x 75 mm — 100 x 100 mm
• Tilt range: 0° to 80°
• Number of displays supported: 1
• Mount type: Desk clamp
• Finish colour: White
• Warranty: 15 years

How to use

Attach the mount to the desk using the included clamp and secure the arm according to the installation instructions. Fasten the monitor to the VESA plate matching the monitor’s mounting pattern (75 x 75 mm or 100 x 100 mm). Adjust height and tilt as needed; the mechanism is designed to return to a neutral home position after movement. Verify that the monitor weight does not exceed 9.8 kg and that the screen size is within the supported 38" limit.

Recommendations

Regularly check clamp tightness and mounting screws, and adjust tension settings for smooth movement. For ergonomic use, position the top of the screen at or slightly below eye level and alternate between sitting and standing throughout the workday.
