Suporte universal de esfera dupla RAM Mounts RAM-B-101U

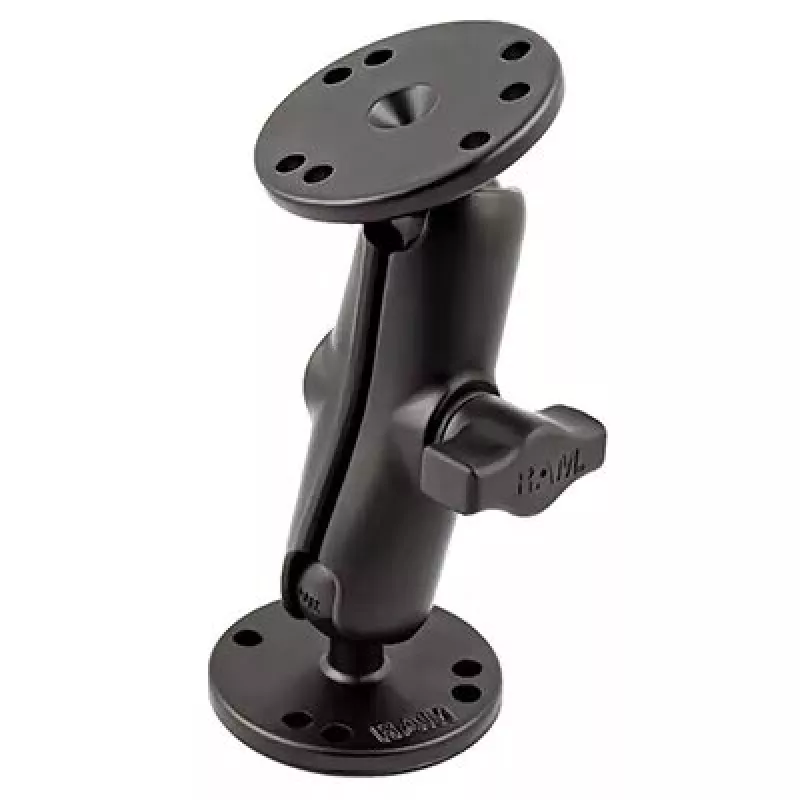

The RAM-B-101U is a Universal Double Ball Mount featuring a medium-length B-size 1" double socket arm and two 2.5" diameter round plates with the AMPS hole pattern. Constructed in black and weighing approximately 0.2313 kg with a height of 127 mm, this mount enables versatile positioning and secure attachment of compatible devices.

Advantages

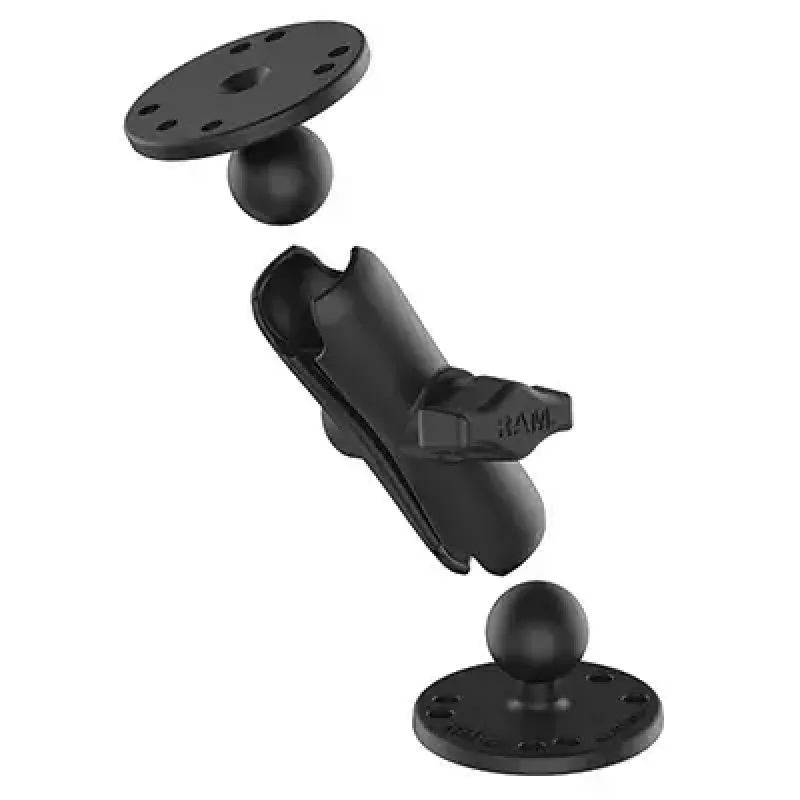

The mount uses RAM's patented rubber ball-and-socket system to dampen shock and vibration while allowing nearly infinite adjustment for optimal viewing angles. The AMPS-pattern round plates connect with many RAM accessories and the double socket arm with its distinctive hourglass shape provides stable, reliable performance across a wide range of applications.

Suitable for

• Attaching smartphones and tablets with compatible AMPS-pattern adapters
• Vehicle dashboards, consoles, and instrument panels
• Industrial and marine equipment where vibration damping is needed

Key specifications

• Model: RAM-B-101U
• Arm type: Medium length B size 1" double socket arm

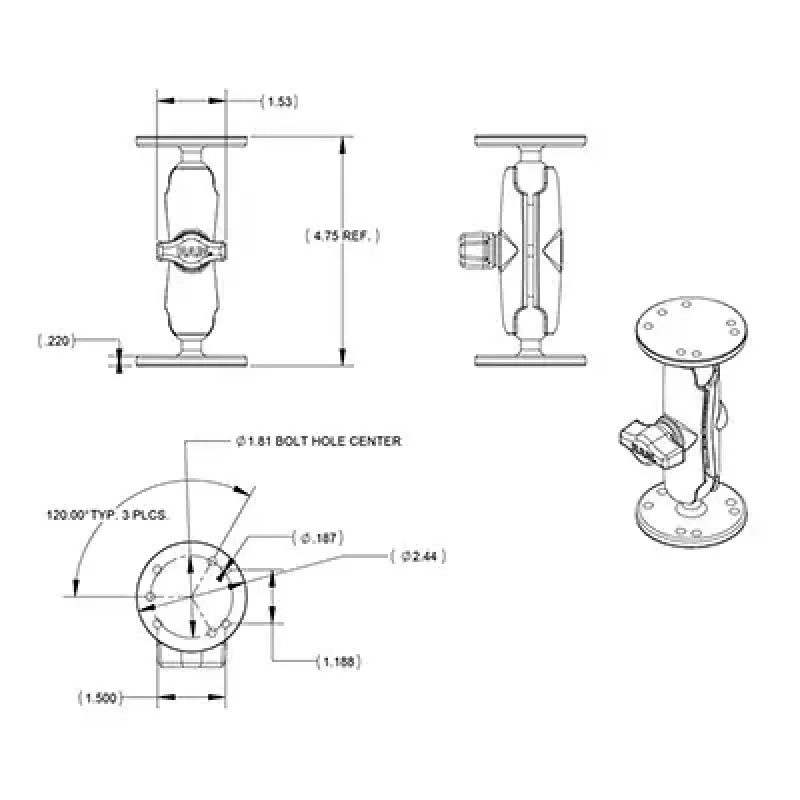

• Plate diameter: 2.5" (AMPS hole pattern)
• Height: 127 mm
• Weight: 0.2313 kg
• Colour: Black

How to use

Attach AMPS-compatible device holders or accessories to the 2.5" round plates using the AMPS hole pattern. Securely tighten the double socket arm to set the general orientation, then fine-tune the angle using the rubber ball-and-socket joints until the desired viewing position is reached. Ensure all fasteners are tightened to prevent unintended movement.

Recommendations

For optimal performance, periodically check and retighten mounting hardware, especially in high-vibration environments. Use compatible AMPS-pattern accessories and avoid exceeding the weight capacity of connected device holders.
