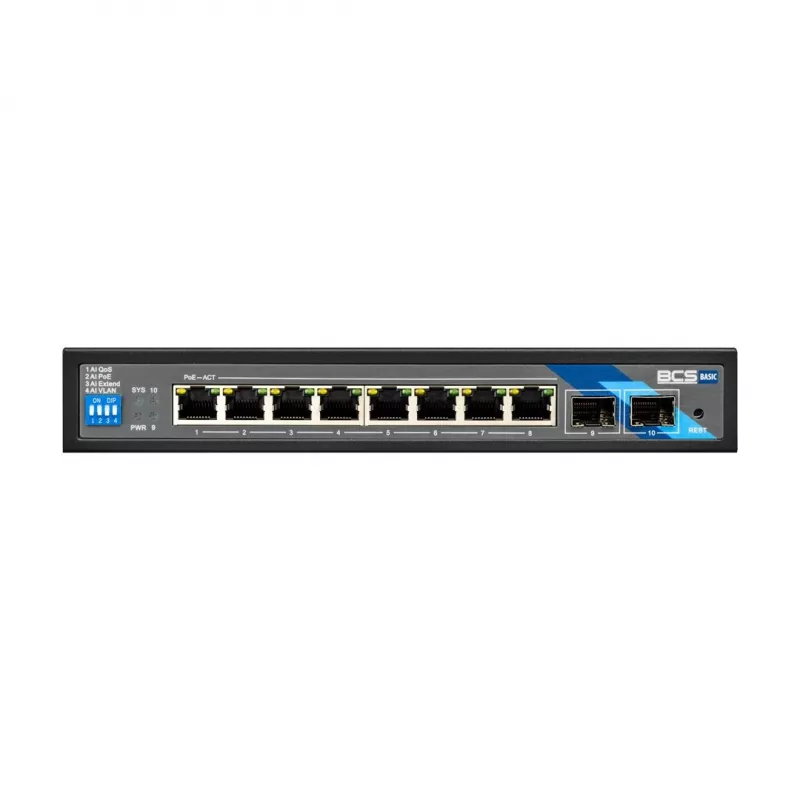

Switch BCS BCS-B-SP08G-2SFP 8 portas Gigabit PoE+ com 2 portas SFP, 240W, industrial, não gerido

The BCS BCS-B-SP08G-2SFP is a robust industrial unmanaged PoE+ switch designed for reliable network connectivity in harsh environments. Featuring 8 Gigabit Ethernet ports with PoE+ support and 2 Gigabit SFP uplink ports, it delivers a total PoE budget of 240W (up to 30W per port) to power devices such as IP cameras, wireless access points, and VoIP phones. With a switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps, this switch ensures high-performance data transfer. Its metal housing with IP40 rating, wide operating temperature range (-40°C to 75°C), and DIN rail/wall mount capability make it ideal for industrial automation, surveillance, and outdoor applications.

Advantages

This switch offers exceptional value for industrial networking: redundant DC power input (48-57V) ensures uptime, while 6 KV ESD and surge protection safeguard against electrical disturbances. The fanless design guarantees silent operation and long-term reliability. Easy plug-and-play deployment eliminates the need for configuration, saving time and resources.

Suitable for

• Industrial automation networks
• IP surveillance systems
• Wireless access point installations
• Outdoor and harsh environment deployments
• Transportation and utility infrastructure

Key specifications

• 8 x 10/100/1000 Mbps PoE+ ports (IEEE 802.3af/at)
• 2 x 1000 Mbps SFP slots
• Total PoE budget: 240 W (max 30 W per port)
• Switching capacity: 20 Gbps
• Packet forwarding rate: 14.88 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes
• Management: Unmanaged
• Power input: DC 48-57V (redundant)
• Operating temperature: -40°C to 75°C
• Storage temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Housing: Metal (aluminum alloy), IP40
• Mounting: DIN rail, wall mount
• ESD protection: 6 KV
• Surge protection: 6 KV

Recommendations

For optimal performance, use high-quality SFP modules and ensure adequate ventilation. The switch supports redundant power; connect both power supplies for maximum reliability. Ideal for powering PoE devices up to 100 meters away.
