Switch de rede ERNITEC ELECTRA-M12-10GB-FIBER M12 10Gb fibra

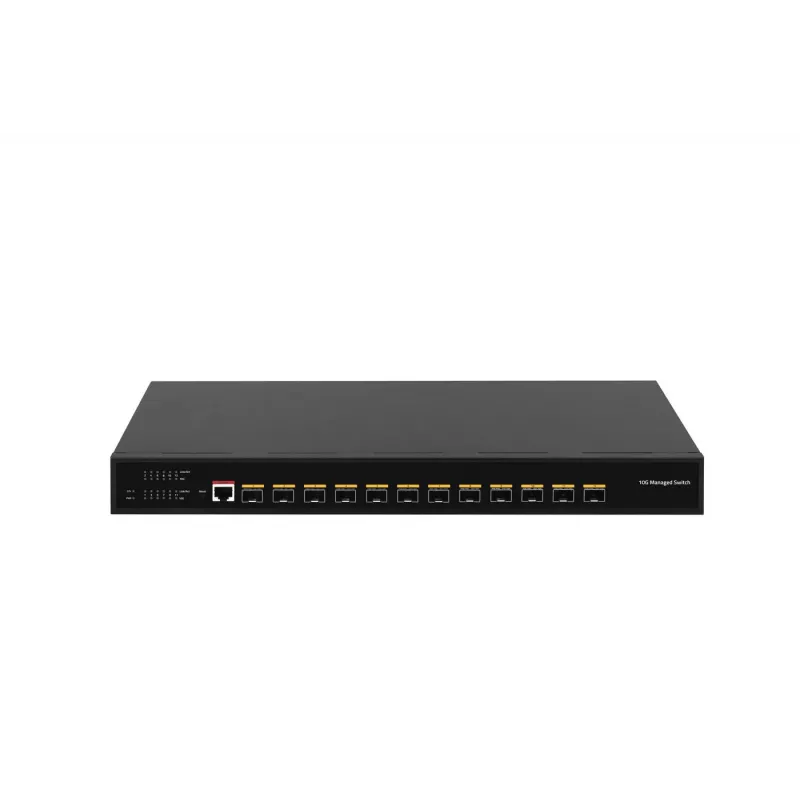

Ernitec ELECTRA-M12-10GB-FIBER is a 12-port 10G SFP+ managed aggregation switch designed for high-capacity fiber networks. It provides high switching capacity and advanced protocol support for enterprise networks, surveillance systems and data center aggregation. The switch combines 10G fiber connectivity, Layer 3 management and industrial-grade construction to ensure reliable performance in demanding deployments.

Advantages

The ELECTRA-M12-10GB-FIBER delivers ultra-fast 10G SFP+ ports for high-bandwidth aggregation, Layer 3 features including IPv4/IPv6, RIP and OSPF, and advanced VLAN options such as MAC VLAN, Voice VLAN, Surveillance VLAN and Q-in-Q. Security functions include 802.1X, DHCP snooping, IP source guard and DoS protection. The device supports flexible management interfaces (Console, HTTP/HTTPS, Telnet, SSH, SNMP) and is built for rack installations with fan cooling, ESD protection and both AC/DC power support.

Key specifications

• Ports: 12 × 10G SFP+
• Switching capacity: 240 Gbps
• Forwarding rate: 178.56 Mpps
• Layer: Layer 3 management (IPv4/IPv6, RIP, OSPF, DHCP Server, ACL)
• VLAN: MAC VLAN, Voice VLAN, Surveillance VLAN, Q-in-Q
• Security: 802.1X, DHCP snooping, IP source guard, DAI, DoS protection
• Protocols: STP/RSTP/MSTP, IGMP Snooping v1/v2/v3, LLDP, SNMP v1/v2/v3
• Management: Console, HTTP/HTTPS, Telnet, SSH, SNMP
• Design: Rack-mountable metal chassis with fan cooling and ESD protection
• Power: Supports AC and DC power

How to use

Install the switch into a standard 19-inch rack using the supplied mounting brackets and connect SFP+ fiber modules to the 10G ports. Configure IP settings and Layer 3 protocols via the preferred management interface (console, web GUI or SSH). Define VLANs, QoS policies and security features such as 802.1X and DHCP snooping according to network requirements. Use link aggregation and port mirroring for redundancy and traffic monitoring, and enable multicast filtering or IGMP snooping where required for surveillance or multicast applications.

Recommendations

For optimal performance, use certified 10G SFP+ transceivers and high-quality fiber cabling. Plan VLAN and Layer 3 routing according to traffic patterns, and enable appropriate security features to protect surveillance and enterprise traffic. Place the switch in a cooled rack environment and ensure proper grounding and ESD precautions during installation.
