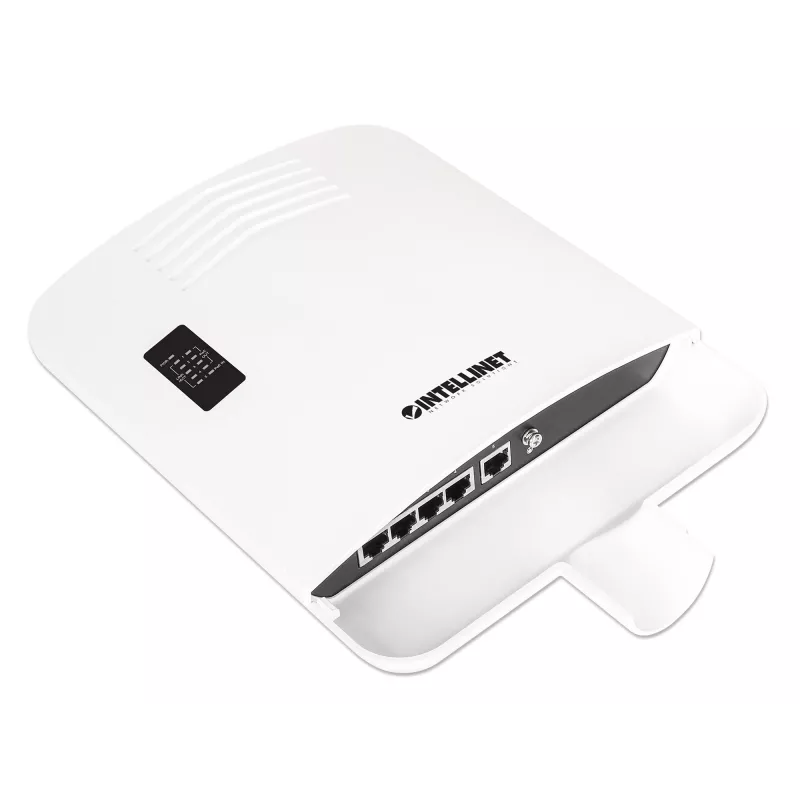

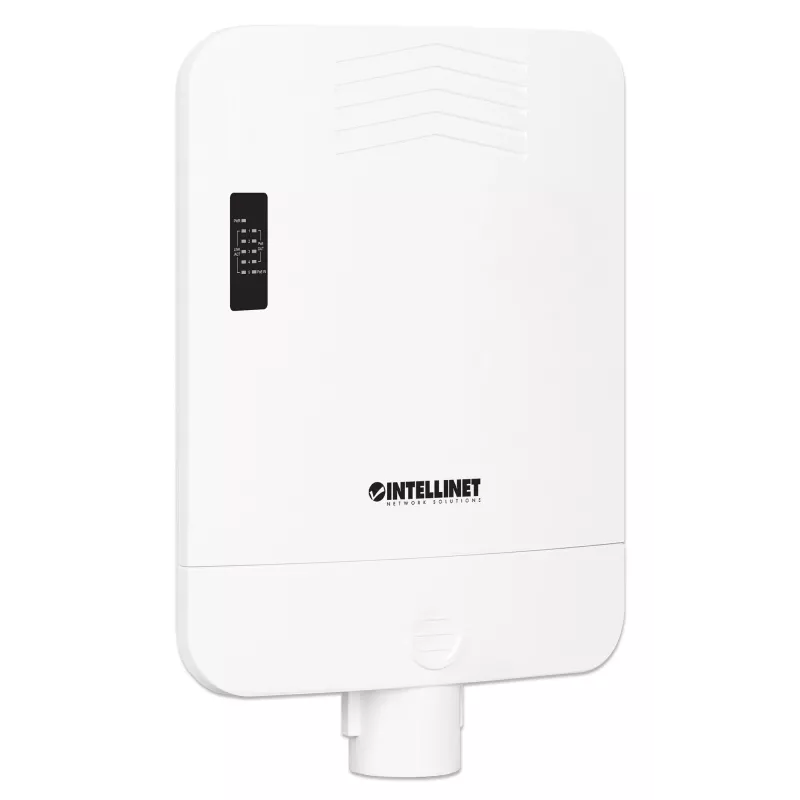

Switch de rede Intellinet 509220 Gigabit Ethernet 5 portas PoE

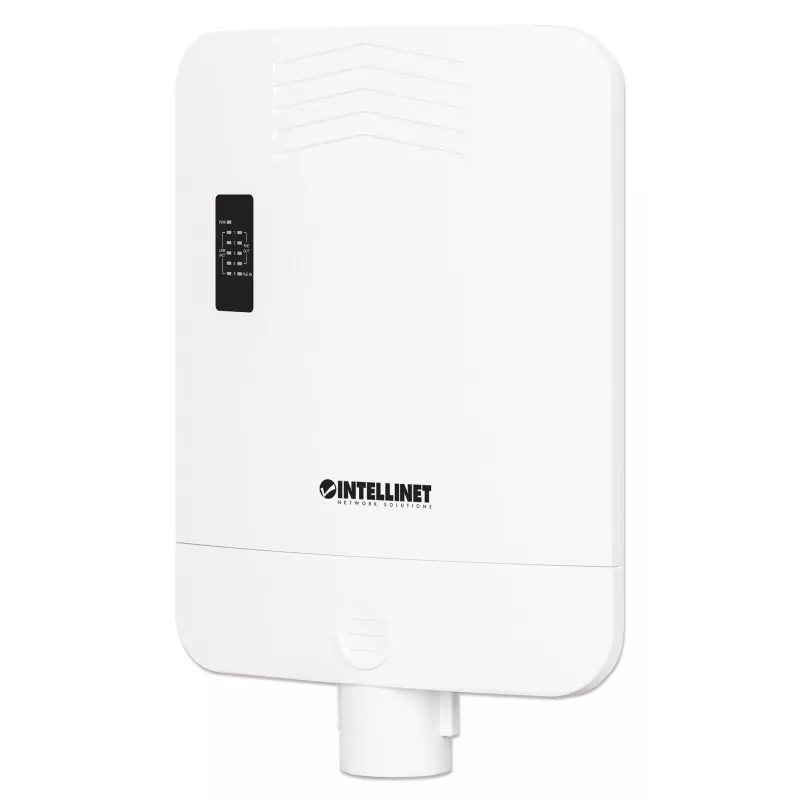

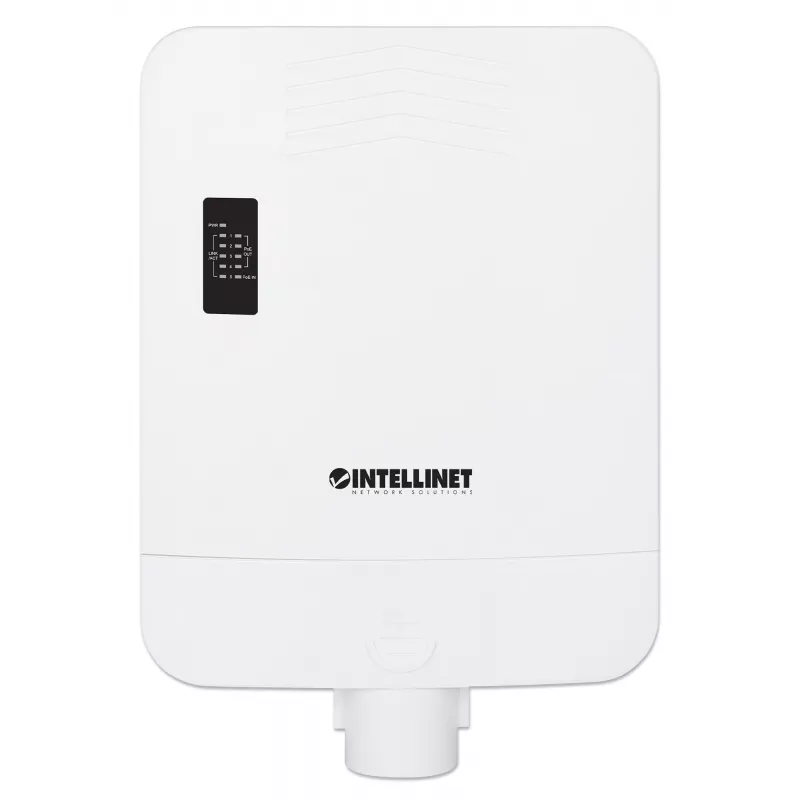

The Intellinet 509220 is a weatherproof 5-port Gigabit Ethernet PoE switch designed for outdoor network deployments and camera systems. It draws power from an upstream PoE source and passes data and power to connected PoE devices via standard Ethernet cables. With four powered ports and Gigabit speeds up to 1,000 Mbps, the unit supports IP cameras, wireless access points and other PoE-compatible equipment while offering an IP65-rated housing and a wide operating temperature range for reliable outdoor use.

Advantages

This PoE-powered switch supports IEEE 802.3bt (4-pair PoE) for high input power and provides up to 30 W per port to 802.3at/af devices. Its PoE passthrough function doubles the effective cabling distance from 100 m to 200 m, reducing the need for additional AC power lines. The compact unit combines five Gigabit RJ-45 ports, a switching capacity suitable for small to medium installations, and flexible mounting options with wall- and pole-mount brackets.

Suitable for

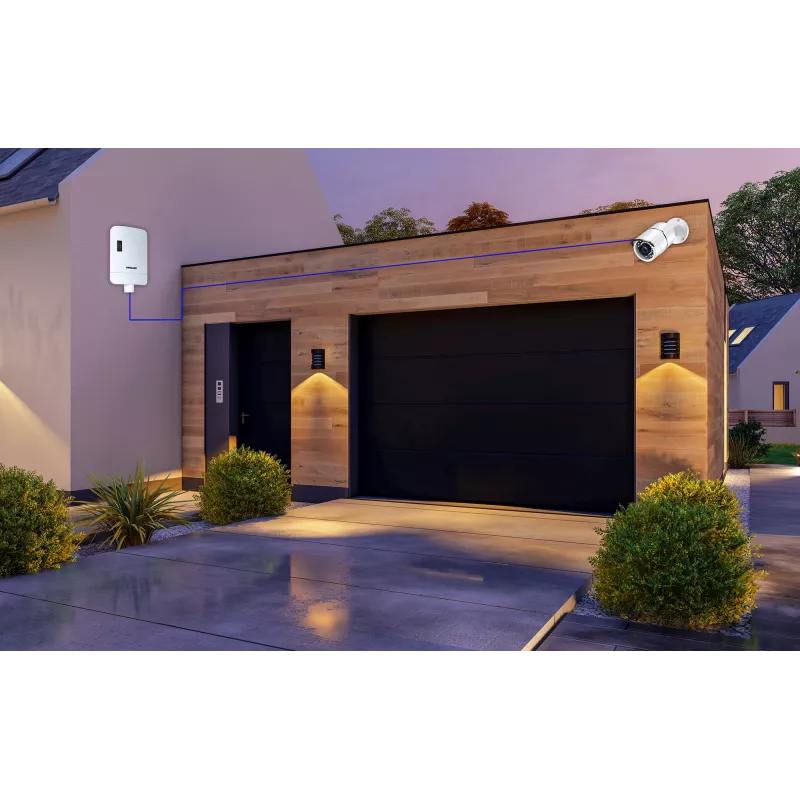

• Outdoor surveillance camera installations
• Extending PoE to remote wireless access points
• Reducing AC wiring by powering outdoor PoE devices from indoor PSE
• Small to medium outdoor network expansions

Key specifications

• Model: Intellinet 509220

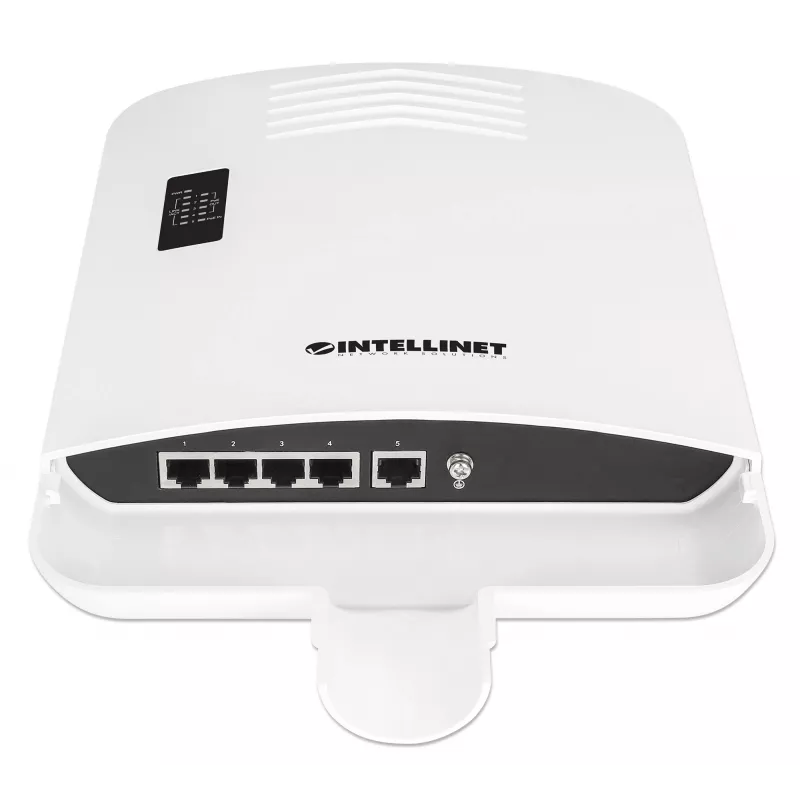

• Ports: 5 x Gigabit RJ-45 (4 PoE-powered ports via passthrough)
• PoE standards: IEEE 802.3af / 802.3at / 802.3bt (4PPoE)
• Maximum per-port power: up to 30 W (to 802.3at/af devices)
• PoE input capability: up to 90 W (802.3bt)
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Ingress protection: IP65 (weatherproof)
• Operating temperature: -40 to 80 °C (-40 to 176 °F)
• Product colour: White
• Weight: 1 kg

How to use

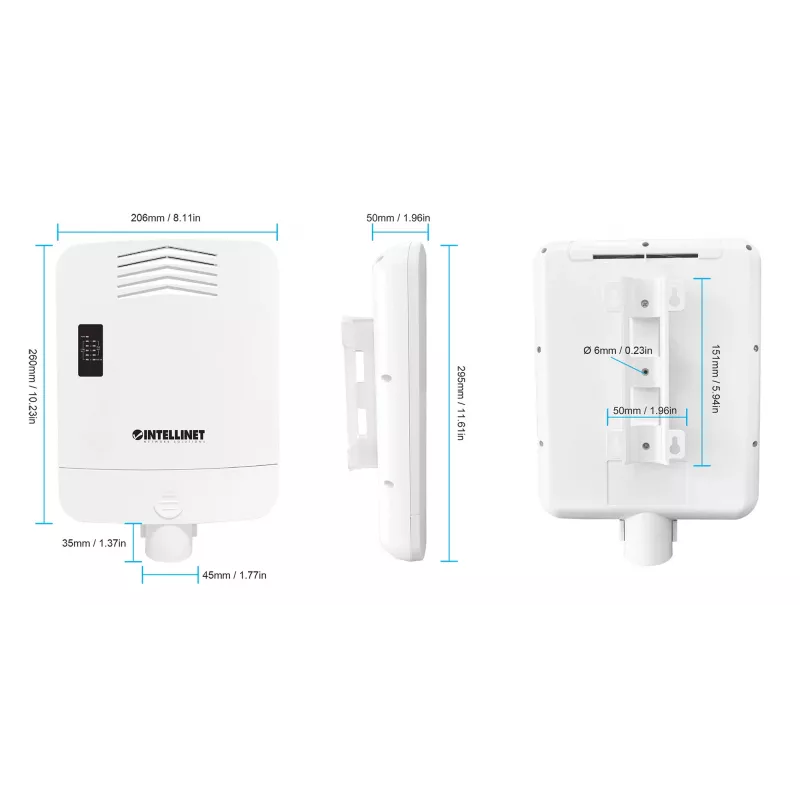

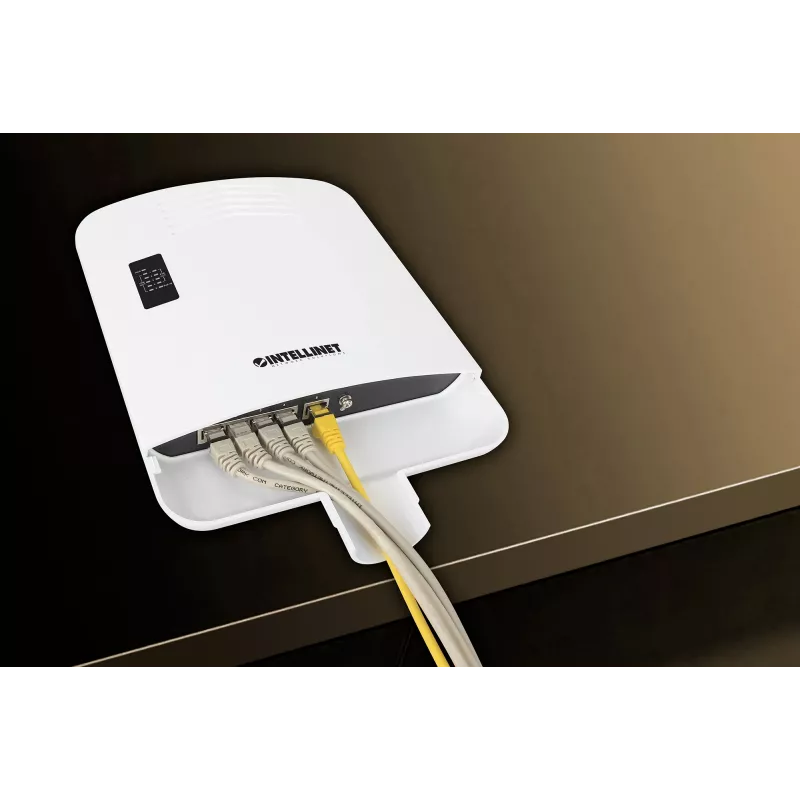

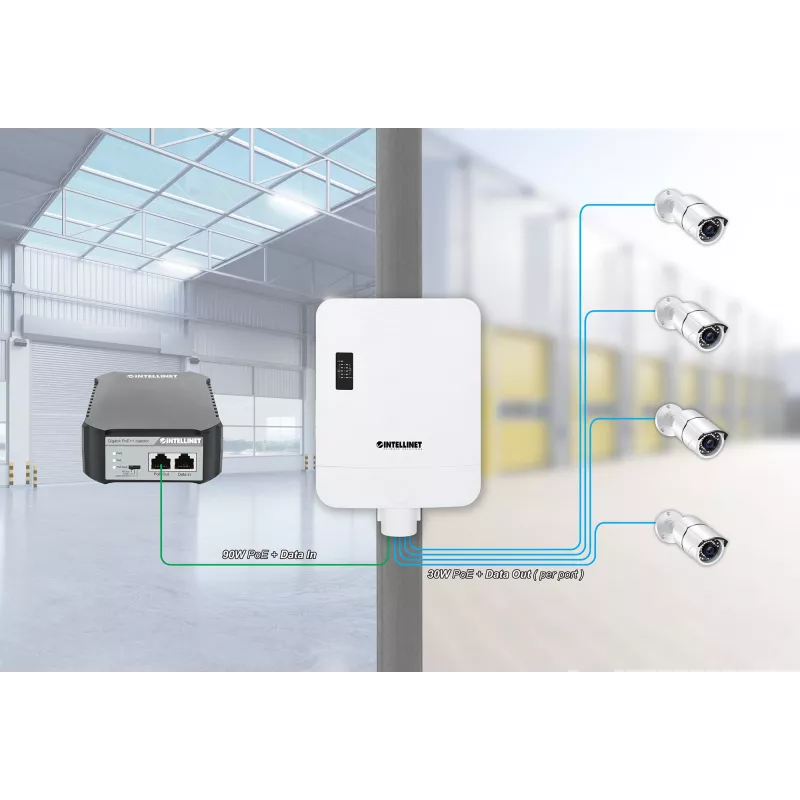

Connect the Intellinet 509220 to a PoE switch or injector (PSE) using a Cat5e/6/6a Ethernet cable to provide both data and power to the unit. Attach your PoE devices—such as IP cameras or access points—to the switch’s Gigabit ports; the switch will pass through DC power and forward traffic at Gigabit speeds. Mount the unit on a wall or pole using the built-in bracket and secure connections with weather-resistant cabling and connectors suitable for outdoor use.

Recommendations

To maximize reliability, use certified Cat5e or higher cabling, verify your PSE provides sufficient 802.3bt power for the intended load, and ensure connectors and junctions are sealed for outdoor exposure. Plan cable runs to stay within the extended 200 m PoE pass-through limit when using the unit as an extender.
