Switch de rede LevelOne FEP-0631 Fast Ethernet (10/100) Power over Ethernet (PoE) preto

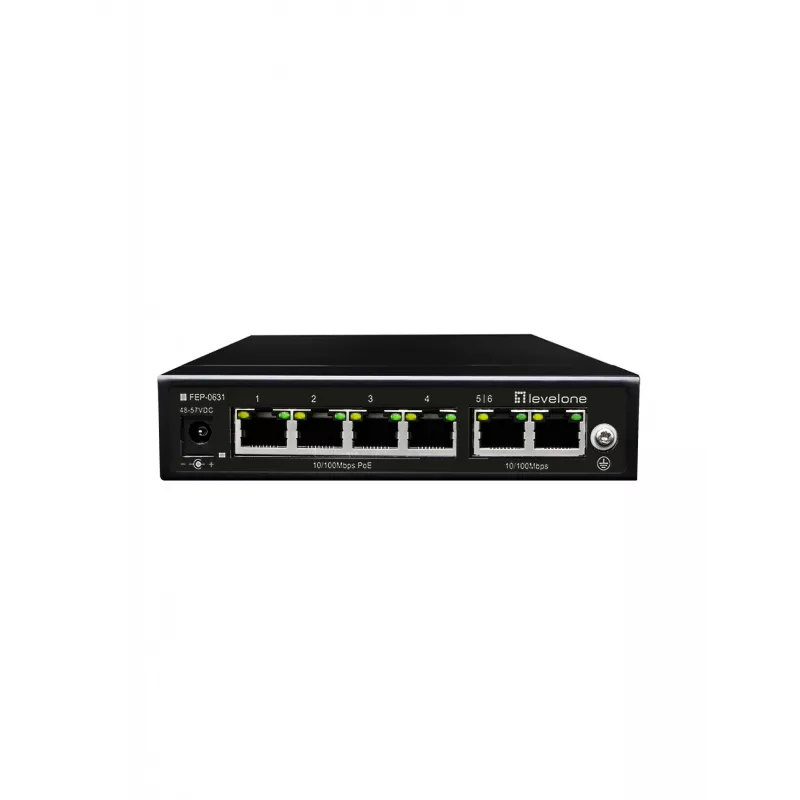

The LevelOne FEP-0631 is a Fast Ethernet PoE switch with six RJ-45 ports, including two uplink ports and four Power over Ethernet (PoE) ports. Each PoE port can supply up to 30 W and the total PoE power budget is 60 W. The switch supports transmission distances up to 250 m at 10 Mbps and includes a 1000-entry MAC address table. It complies with IEEE 802.3af/at standards and automatically detects compatible PoE devices to deliver power and data over a single cable.

Advantages

The FEP-0631 combines PoE and non‑PoE connectivity in a compact, black enclosure, providing store-and-forward switching, packet error filtering and non-blocking packet forwarding for a stable LAN. It supports 802.3x flow control in full and half duplex and N-Way Auto Negotiation for automatic speed and duplex detection. Front-panel LEDs simplify monitoring and troubleshooting of link, activity and power status.

Suitable for

• Small office networks that mix PoE IP phones and non‑PoE devices
• Wireless access point deployments requiring PoE
• IP camera installations needing centralized power over Ethernet
• Workspace upgrades to add PoE capability without re-cabling

Key specifications

• Ports: 6 x 10/100 Mbps RJ-45 (4 PoE, 2 uplink)
• PoE per port: up to 30 W
• Total PoE budget: 60 W
• Supported distance: up to 250 m at 10 Mbps
• Standards: IEEE 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x
• MAC address table: 1000 entries
• Power input: DC 48–57 V
• Color: Black
• Weight: 0.34 kg

How to use

Mount the switch on a shelf or in a small rack position with adequate ventilation. Connect the DC power supply within the specified 48–57 V range. Plug PoE-capable devices into the PoE-enabled RJ-45 ports to provide both data and power; non‑PoE devices can be connected to the remaining ports. The switch will auto-detect IEEE 802.3af/at devices and negotiate speed and duplex automatically. Use the front-panel LEDs to verify link/activity and PoE status during setup.

Recommendations

To avoid exceeding the PoE budget, check combined power requirements of connected PoE devices and distribute high-draw devices across ports or use an additional PoE switch or injector if total power demand exceeds 60 W.
