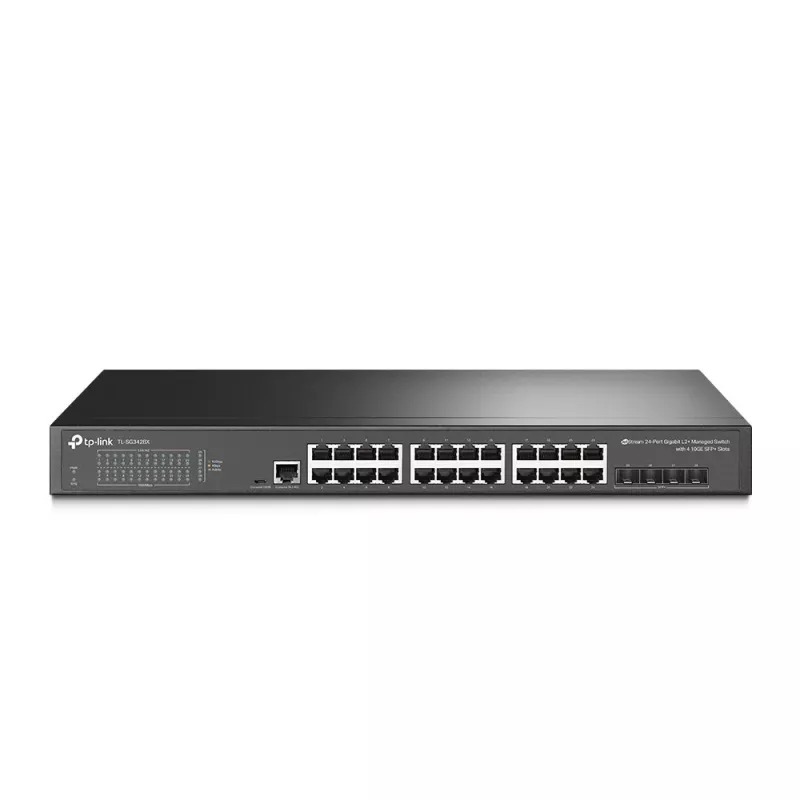

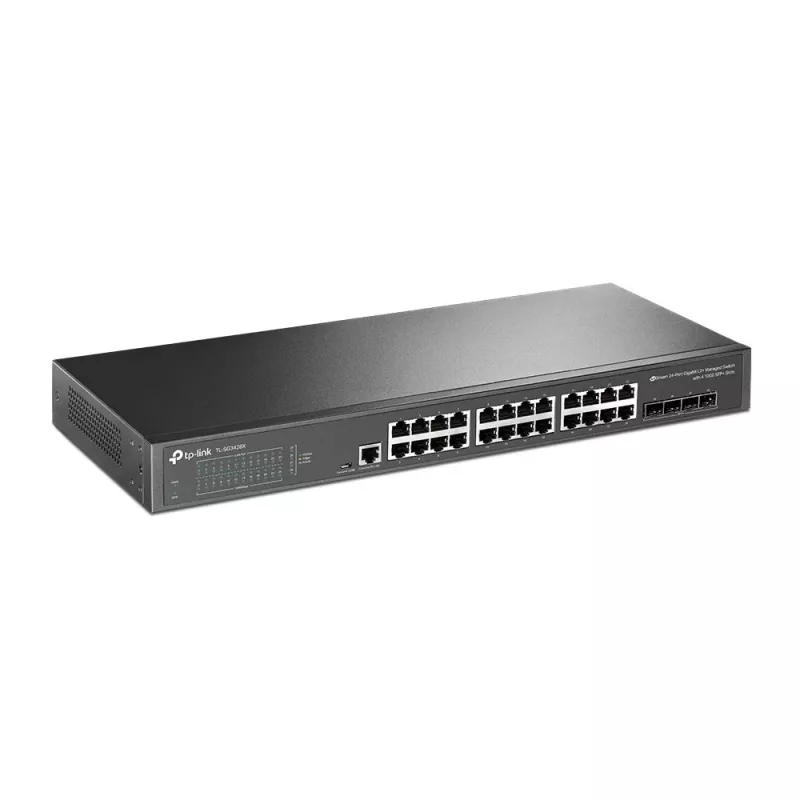

Switch de rede TP-Link JetStream TL-SG3428X Managed L2+/L3 Gigabit Ethernet (10/100/1000) 1U preto

The TL-SG3428X stands apart from conventional gigabit switches by pairing 24 copper ports with four 10-gigabit SFP+ uplinks in a compact 1U chassis. This combination delivers high-density connectivity and future-ready backbone capacity without the cost or complexity of chassis-based alternatives. Built around TP-Link’s JetStream architecture, it offers L2+ switching with static routing, robust security, and Omada SDN integration for unified management.

Highlights

• 24× 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX
• 4× 10G SFP+ slots for fiber uplinks or stacking
• 128 Gbps switching capacity and 95.23 Mpps forwarding rate
• Comprehensive L2+ features: VLAN, QoS, link aggregation, spanning tree, and more
• Static routing for inter-VLAN communication
• Advanced security: ACL, port security, DoS defend, IP-MAC-port binding
• Dual internal fans for reliable cooling in rack deployments
• Managed via web GUI, CLI, SNMP, or Omada SDN controller

In daily use

Deploy the TL-SG3428X as an aggregation switch in a growing network. Connect up to 24 endpoints at gigabit speed, then link to a core switch or server using the 10G SFP+ ports to eliminate bottlenecks. The fanless design of many competitors is absent here, but the two fans ensure stable operation under sustained load. Administrators will appreciate the intuitive web interface for quick setup, while CLI and SNMP offer granular control for experienced engineers. With Omada SDN, you can manage multiple switches, access points, and gateways from a single pane of glass.

Full specifications

• Switch type: Managed L2+/L3
• Ethernet ports: 24× 10/100/1000 Mbps RJ45
• Uplink ports: 4× 10 Gigabit SFP+
• Switching capacity: 128 Gbps
• Packet forwarding rate: 95.23 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 9 KB
• VLAN support: 802.1Q tag-based, up to 4K VLANs
• Quality of Service (QoS): 8 priority queues, 802.1p CoS/DSCP
• Security features: ACL, port security, DoS defend, IP-MAC-port binding
• Management protocols: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Omada SDN
• Layer support: Layer 2+, static routing (Layer 3)
• Form factor: 1U rackmount
• Power supply: Internal, 100-240V AC, 50/60 Hz
• Fan quantity: 2
• Operating temperature: 0–45 °C (32–113 °F)

Final note

The TP-Link JetStream TL-SG3428X is a versatile and reliable choice for businesses seeking high-performance switching with 10G uplinks, advanced management, and seamless integration into Omada SDN environments.
