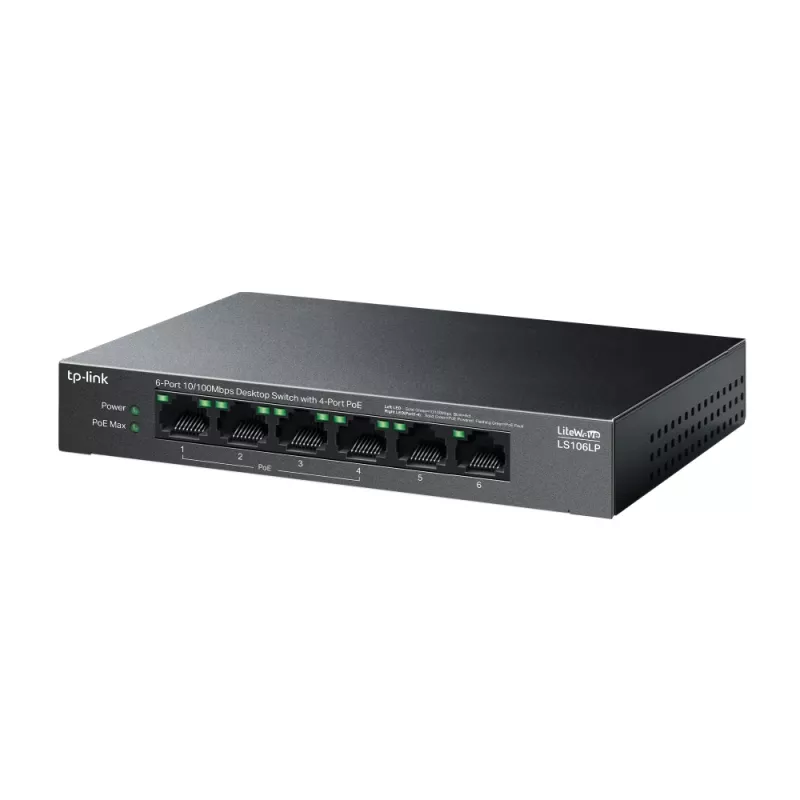

Switch de rede TP-Link LiteWave LS106LP não gerido Fast Ethernet (10/100) Power over Ethernet (PoE) preto

The TP-Link LiteWave LS106LP is an unmanaged 6-port Fast Ethernet switch with integrated Power over Ethernet (PoE) designed for simple deployment of IP devices. It provides four 10/100 Mbps 802.3af-compliant PoE ports delivering up to 15.4 W per port and an overall PoE budget of 41 W. The switch supports a switching capacity of 1.2 Gbit/s, a MAC address table of 2000 entries, IEEE networking standards compliance, and a DC input of 53.5 V. The compact metal housing supports desktop placement or wall mounting and a fanless design enables silent operation.

Advantages

The LS106LP simplifies installation with plug-and-play operation and an extend mode that allows PoE transmission up to 250 m for longer cable runs. PoE Auto Recovery can automatically reboot unresponsive powered devices. Its fanless, energy-efficient design ensures quiet operation while the durable metal casing and wall-mountable form factor provide flexible, reliable hardware deployment options for small offices, retail, or home surveillance setups.

Suitable for

• Small office and home networks
• IP camera surveillance systems, including longer-distance camera placement using Extend Mode
• Wireless access point deployment
• VoIP IP phone installations

Key specifications

• Ports: 6 x Fast Ethernet (10/100) RJ-45; 4 PoE ports compliant with IEEE 802.3af
• PoE budget: 41 W total, up to 15.4 W per PoE port
• Switching capacity: 1.2 Gbit/s
• MAC address table: 2000 entries
• Standards: IEEE 802.3af / 802.3u / 802.3i / 802.3x
• Input voltage: DC 53.5 V
• Form factor: Desktop / Wall-mountable; metal housing; fanless
• Color: Black

How to use

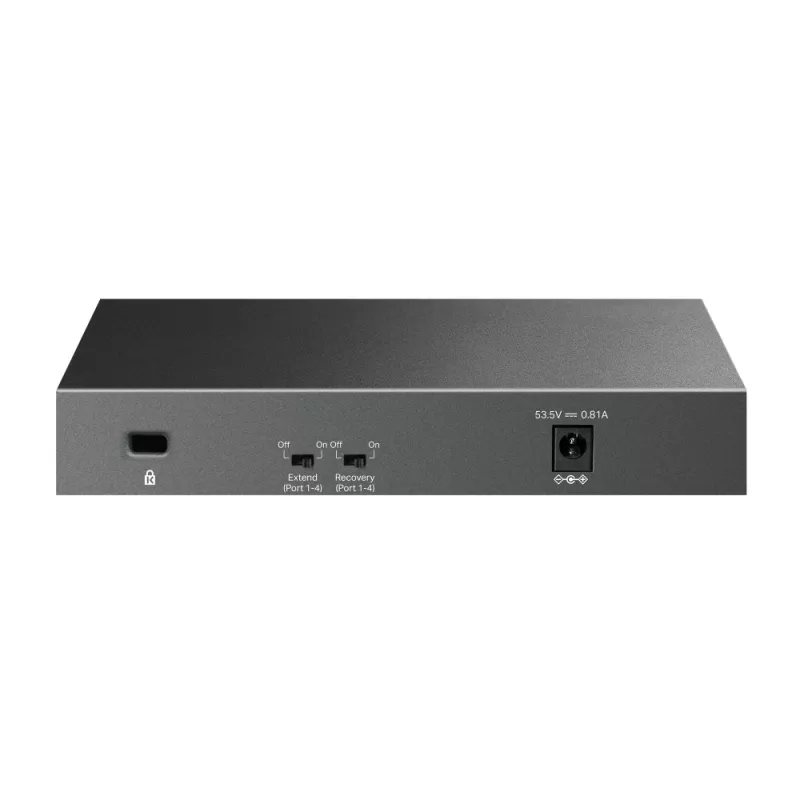

Mount the switch on a desktop or wall using the provided mounting points. Connect uplink and device cables to the RJ-45 ports; PoE-capable ports will supply power automatically to IEEE 802.3af devices when connected. For extended distance deployments, enable Extend Mode to increase PoE transmission reach up to 250 m where supported. No configuration is required for basic operation—the device is unmanaged and operates immediately after power and cable connections.

Recommendations

Place the switch in a ventilated, dry location and observe the total PoE budget when connecting multiple powered devices to avoid exceeding 41 W. Use Extend Mode only for compatible cameras and when cable quality and installation practices meet distance requirements.
