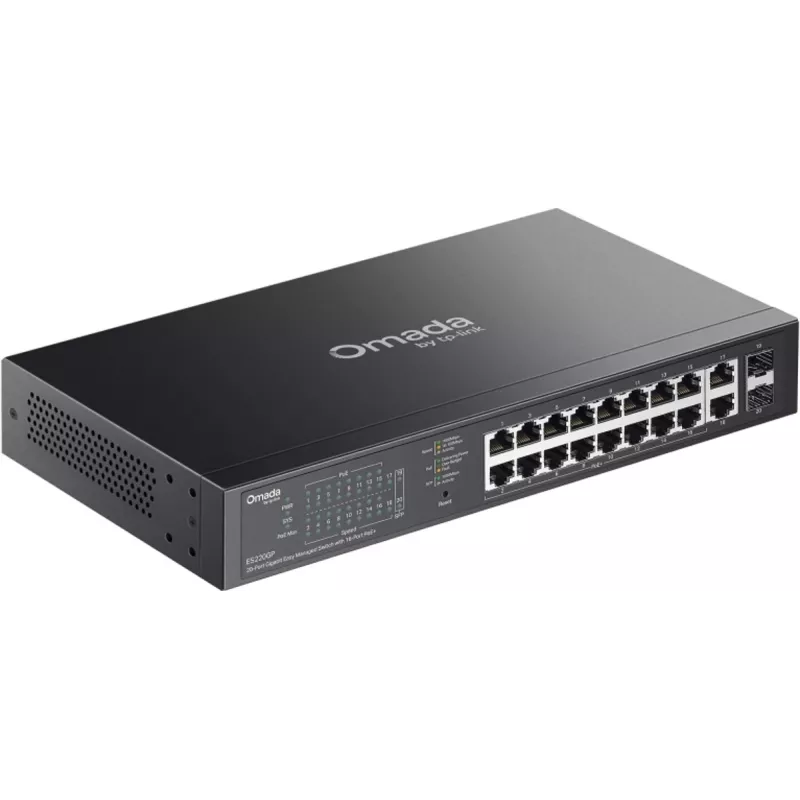

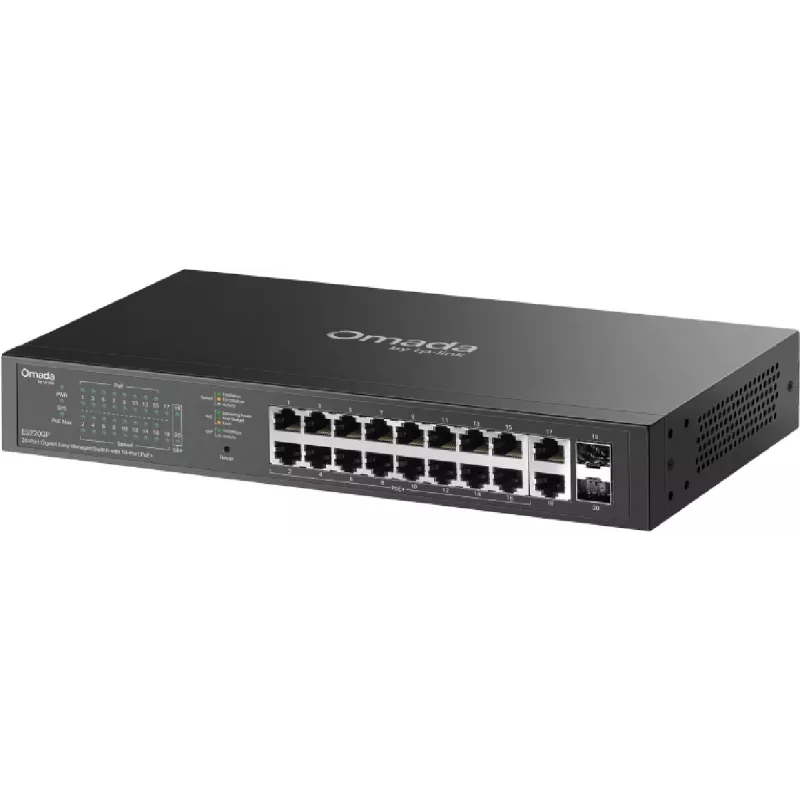

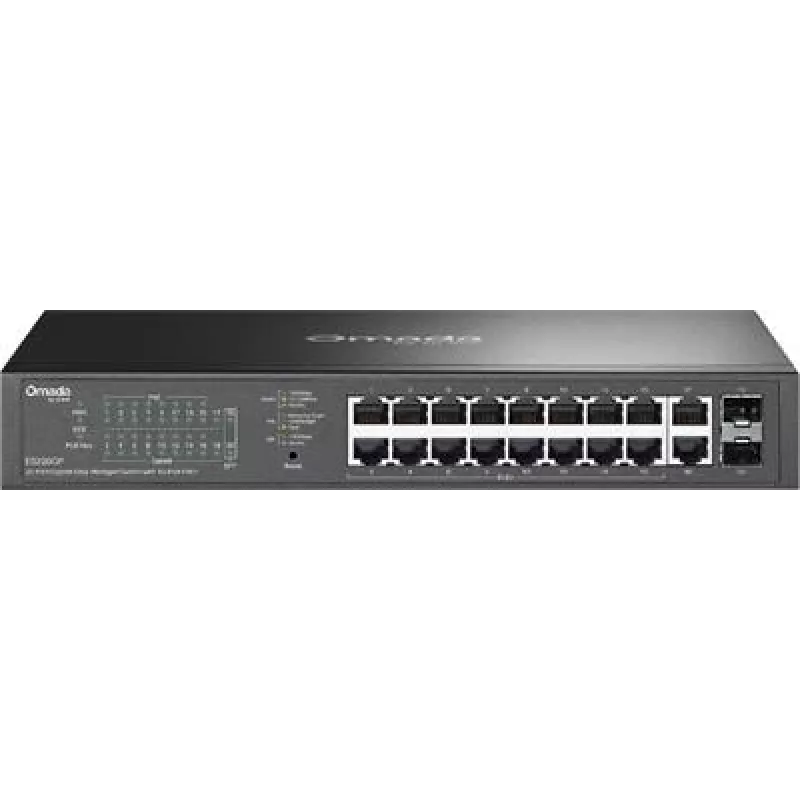

Switch de rede TP-LINK OMADA ES220GP Managed 18x Gigabit (10/100/1000) com suporte PoE+

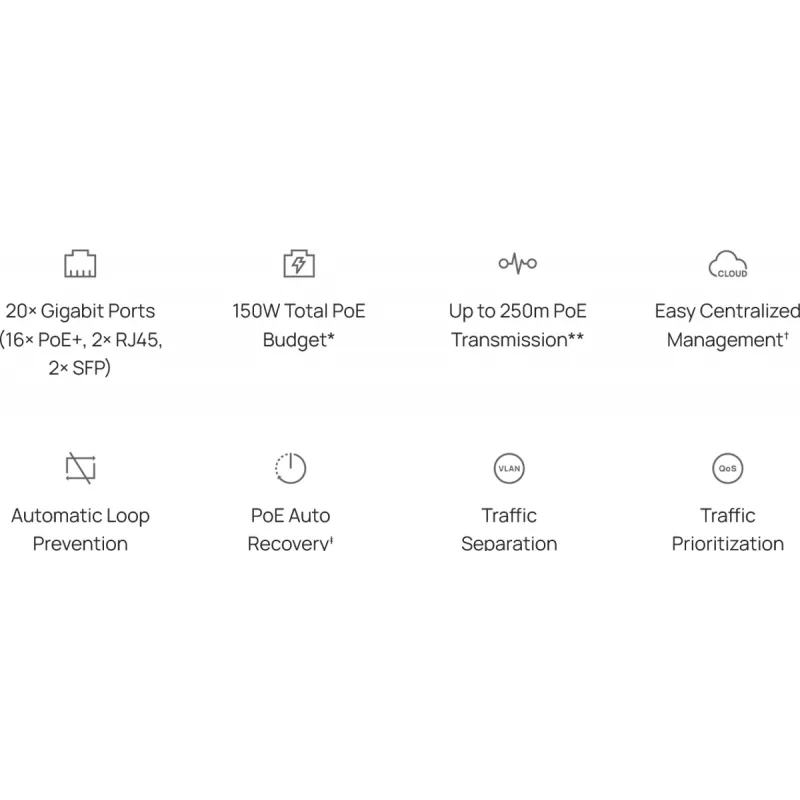

Description: ES220GP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ 18× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+) 2× Gigabit SFP Slots 150W PoE Budget, with up to 30W for each PoE port Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralized Cloud Management via the web or the Omada app Up to 820ft PoE, Remote Camera Reboot, QoS, and Port Isolation for reliable surveillance networking Automatic Loop Prevention, VLAN, and IGMP Snooping Fanless design for silent operation Durable metal casing and rack mounting design Omada Central Essentials - A Free and Easy Cloud-Based Network ManagementOmada Central Essentials is a free, easy-to-use version of the Omada Central. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses. | Switch class: Managed | Application: Medium and large companies | Switch layer: L2 | Network architecture: GigabitEthernet | Number of 10/100/1000 Mbps ports: 20 | Number of PoE+ ports: 16 | Number of SFP ports: 2 | Console port: No | Forwarding mode: Store-and-forward | Throughput: 40 | Forwarding rate: 29.76 | Packet buffer: 4 | MAC address table size: 8000 | Support for Jumbo frames: Yes | Jumbo frame size: 15 | Stackability: No | Number of VLAN groups: 32 | VLAN: MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID | QoS: Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rating Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control | Management, monitoring, configuration: Omada App: Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Cloud Access: Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning: Requires the use of Omada Cloud-Based Controller. Centralized Management: Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Management Features: Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration | L2 features: Static Link Aggregation Loop Prevention / Loopback Detection 802.3x Flow Control Mirroring Port Mirroring One-to-One Many-to-One Ingress/Egress/Both Port Statistics Port Mirror Status Traffic Statistics 802.1ab LLDP L2 Multicast: IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave | Chassis type: Rack | Chassis type: Desktop | Fan: No | Power supply: Internal | Power consumption: 150 | Environment requirements: Operating Temperature: -5~40°C Storage Temperature: -40~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | Certificates: FCC CE RoHS | Accessories included: ES220GP Power Cord Mounting Brackets Rubber Feet Screws Installation Guide | Power supply: 100-240V AC, 50/60Hz 2,5A | Dimensions: 294 x 180 x 44 mm

How to use

Install the ES220GP into a standard equipment rack and connect AC power via the rear AC-in jack. Connect Ethernet devices to the Gigabit RJ-45 ports; devices that require power over Ethernet will receive power automatically on PoE-enabled ports following configuration. Use the web-based management interface or Omada Central (cloud or on-premises) to configure VLANs, QoS, port settings and monitoring. Use the SFP slots for fiber uplinks to core switches or aggregation points and verify PoE budget allocation when deploying many powered devices.

Recommendations

Plan PoE allocation before installation: list each PoE device’s power draw to ensure the 150 W budget and per-port limits are not exceeded. Use VLANs and QoS to separate surveillance traffic from general data to maintain stable video streams. When using fiber uplinks, verify SFP module compatibility and configure link aggregation or spanning tree as needed for redundancy.
