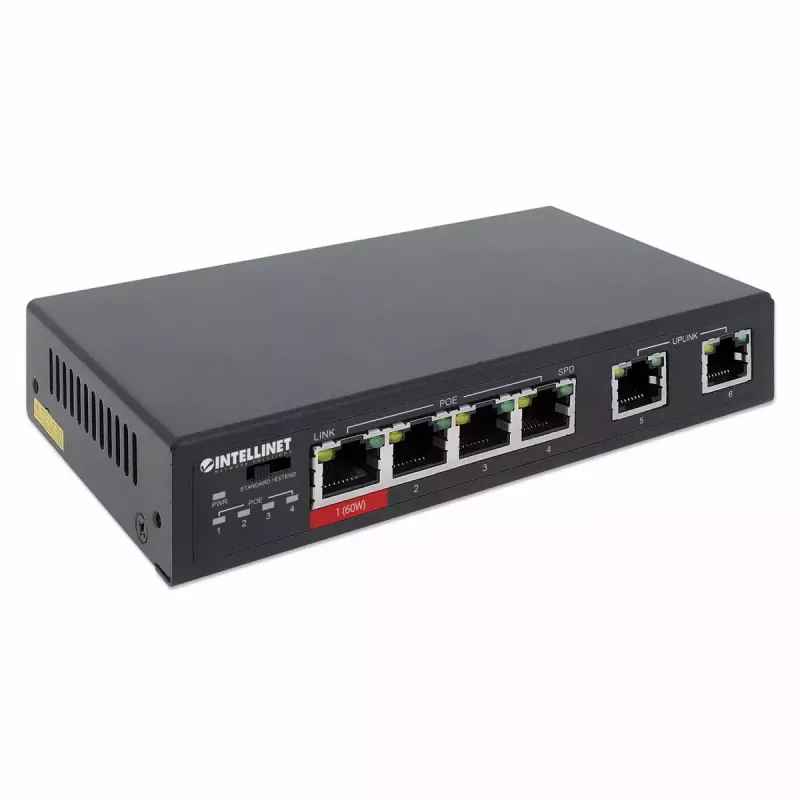

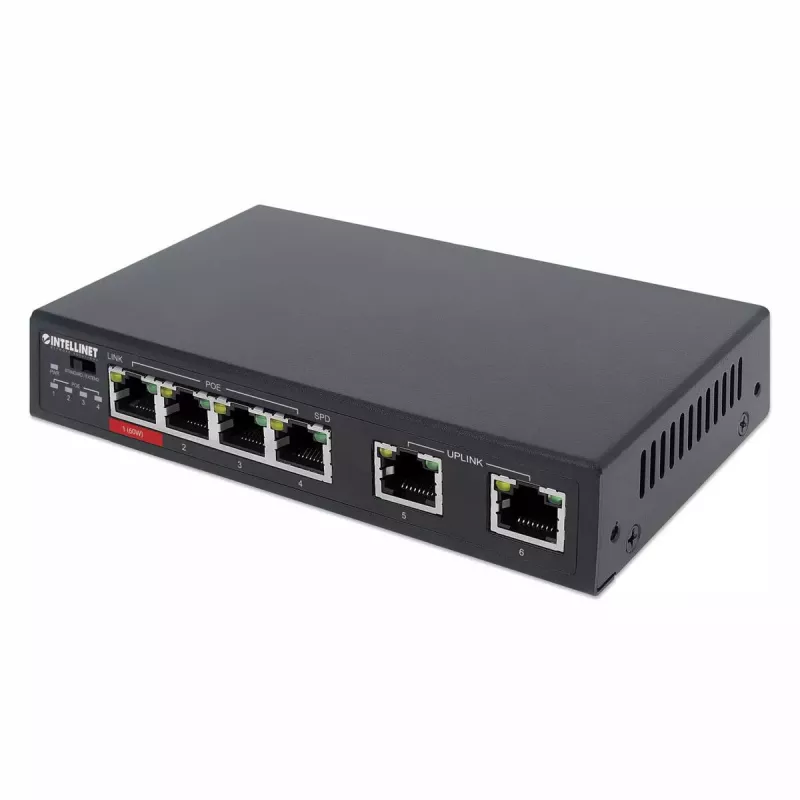

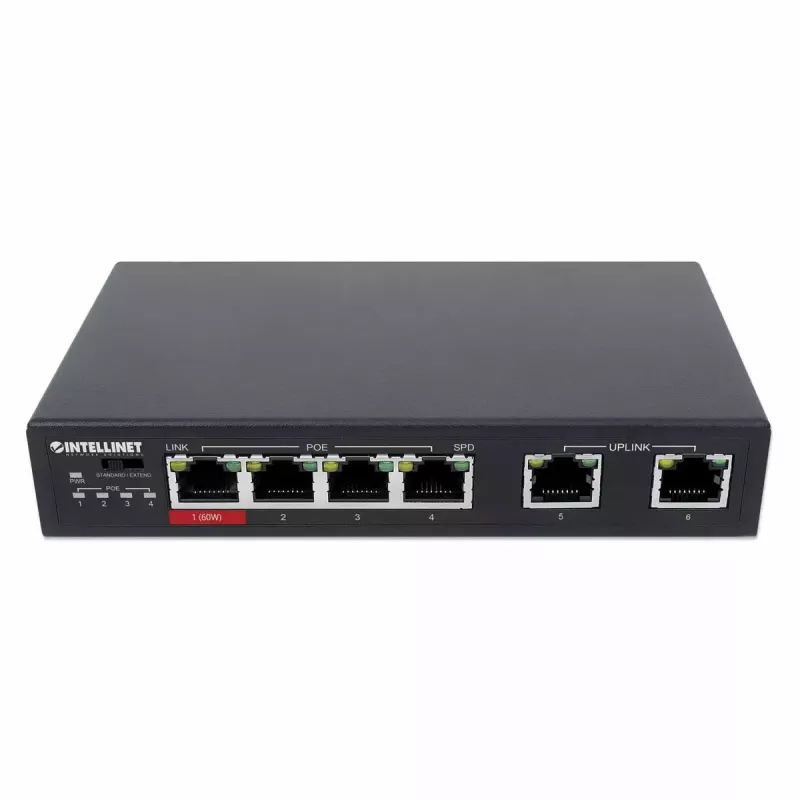

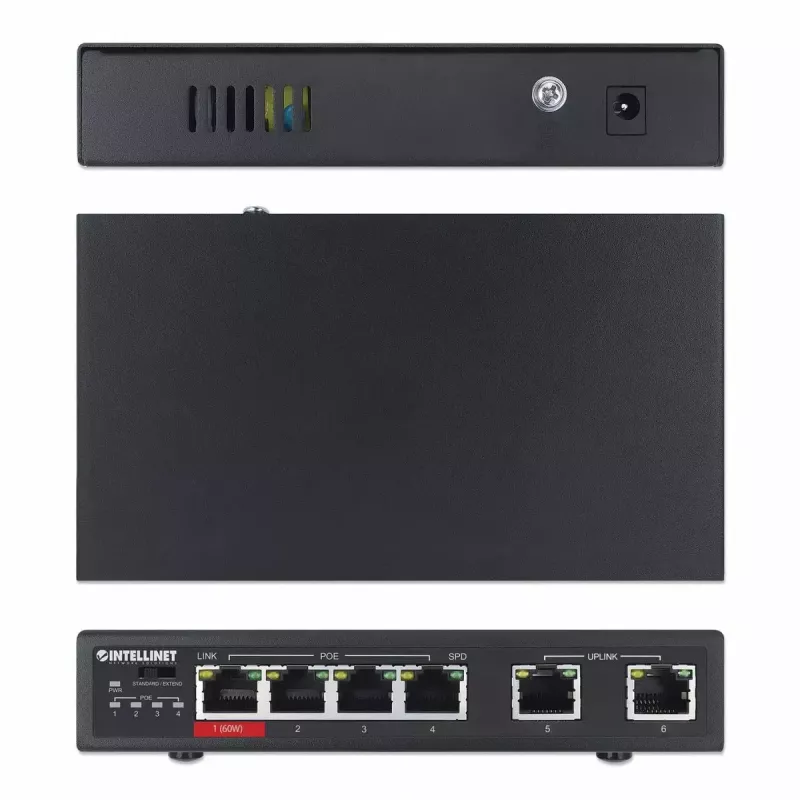

Switch Fast Ethernet Intellinet 6 portas 4 portas PoE 65W Power Budget

The Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (65W power budget) is a compact unmanaged switch designed for small network expansions and IP camera installations. It provides six 10/100 Mbps RJ-45 ports, four of which supply Power over Ethernet (PoE). One of the PoE ports is a high-power port capable of delivering up to 60 W, while the remaining three PoE ports provide up to 30 W each. The switch supports IEEE 802.3af and IEEE 802.3at standards and includes a manual PoE extend mode that reduces link speed to extend PoE range up to 250 m (820 ft.).

Advantages

This Intellinet switch eliminates the need for separate power adapters by delivering data and power over the same cable, reducing installation time and wiring complexity. The manual PoE extend mode enables powering remote devices at longer distances, and built-in protections against short-circuit, overload and high voltage help protect connected equipment. The mix of standard and one high-power PoE port offers flexibility for devices with higher power demands while keeping a total PoE budget of 65 W.

Suitable for

• Small IP camera installations and surveillance endpoints
• Wireless access points and point‑to‑point AP deployments
• VoIP phones and other PoE-powered office devices
• Network expansion in small offices, retail or branch locations

Key specifications

• Ports: 6 × Fast Ethernet (10/100) RJ-45
• PoE ports: 4 (three ports up to 30 W each, one high-power port up to 60 W)
• Total PoE power budget: 65 W
• PoE standards: IEEE 802.3af, IEEE 802.3at
• Extend mode: manual PoE extend for up to 250 m (820 ft.) at reduced speed
• Networking standards: IEEE 802.3, 802.3u, 802.3x
• Colour: Black; Weight: 0.41 kg

How to use

Install the switch on a flat surface or rack shelf and connect incoming network uplink to one of the RJ-45 ports. Plug PoE-capable devices into the PoE ports to provide both data and power via a single Ethernet cable. If a device requires extended reach, enable the manual PoE extend mode using the switch’s physical control; note that extend mode reduces port speed to achieve power delivery up to 250 m. Ensure the combined power consumption of connected PoE devices does not exceed the 65 W budget.

Recommendations

For non‑802.3af/at legacy devices, use a PoE/PoE+ splitter to convert PoE to the device’s required power input. Plan device placement and calculate total PoE draw before connecting multiple high-power devices to avoid exceeding the 65 W budget.
