Switch Fast Ethernet PoE não gerido TRENDnet TI-PELC80 — 8x 10/100 Mbps RJ-45, IEEE 802.3af/at, 48–56V DC, montagem na parede

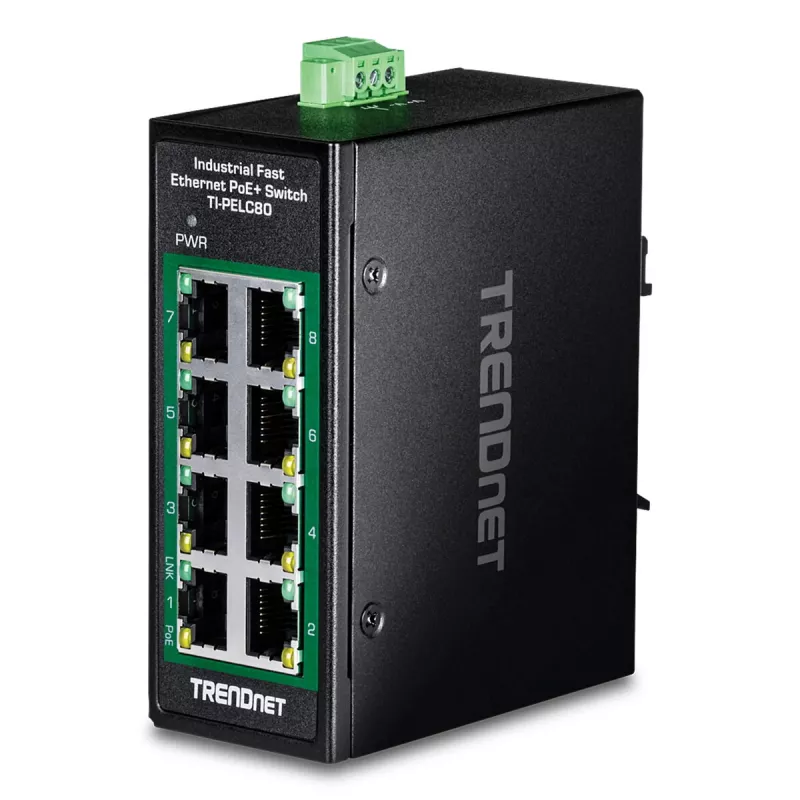

TRENDnet TI-PELC80 is an unmanaged industrial Fast Ethernet PoE+ DIN-rail mini switch designed for demanding environments. Housed in a rugged IP30 metal enclosure, it tolerates high vibration and shock and operates in extreme temperatures from -40° to 75° C. The compact switch provides eight 10/100 Mbps RJ-45 ports with PoE+ support to deliver data and up to 30 W per port over existing Ethernet cabling, and is suitable for compact installations where reliable power and network connectivity are required.

Advantages

The TI-PELC80 offers a hardened industrial design with an IP30 metal case, wide operating temperature range, and DIN-rail and wall-mount options for flexible installation. With a 200 W PoE+ power budget and support for IEEE 802.3af/at, the switch powers high-demand devices while providing a 1.6 Gbit/s switching capacity and a 1,000-entry MAC address table. Being unmanaged, it requires no configuration for quick deployment.

Suitable for

• Powering and connecting IP cameras including PTZ and high-power models
• Wireless access points and outdoor/industrial Wi‑Fi deployments
• VoIP phones and small office telephony systems
• Compact industrial LANs and remote network nodes
• IPTV decoders, access control devices and other PoE endpoints

Key specifications

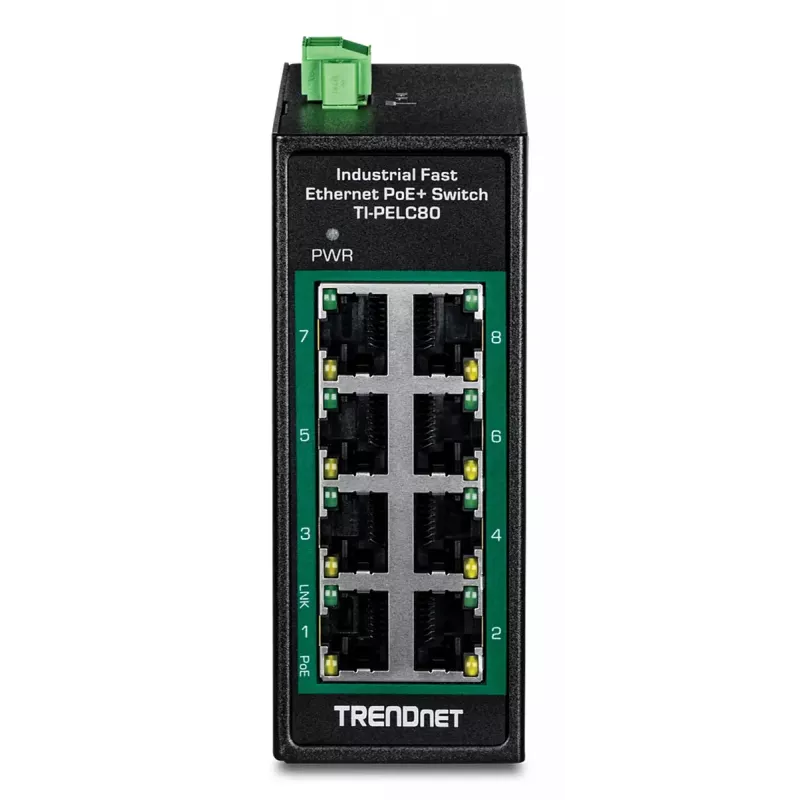

• Ports: 8 x 10/100 Mbps RJ-45 (PoE+)
• PoE standard: IEEE 802.3af/at
• PoE power budget: 200 W (up to 30 W per port)
• Switching capacity: 1.6 Gbit/s
• MAC address table: 1000 entries

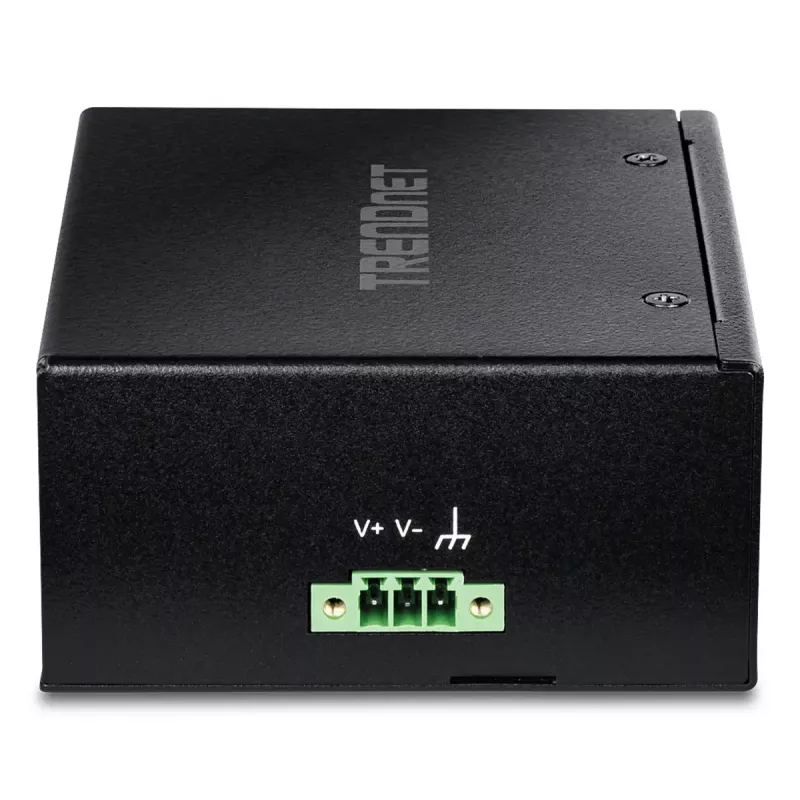

• Power input: 48–56 V DC (power supply sold separately; models TI-S24052, TI-S24048)
• Operating temperature: -40° to 75° C
• Enclosure: IP30 rated metal mini housing

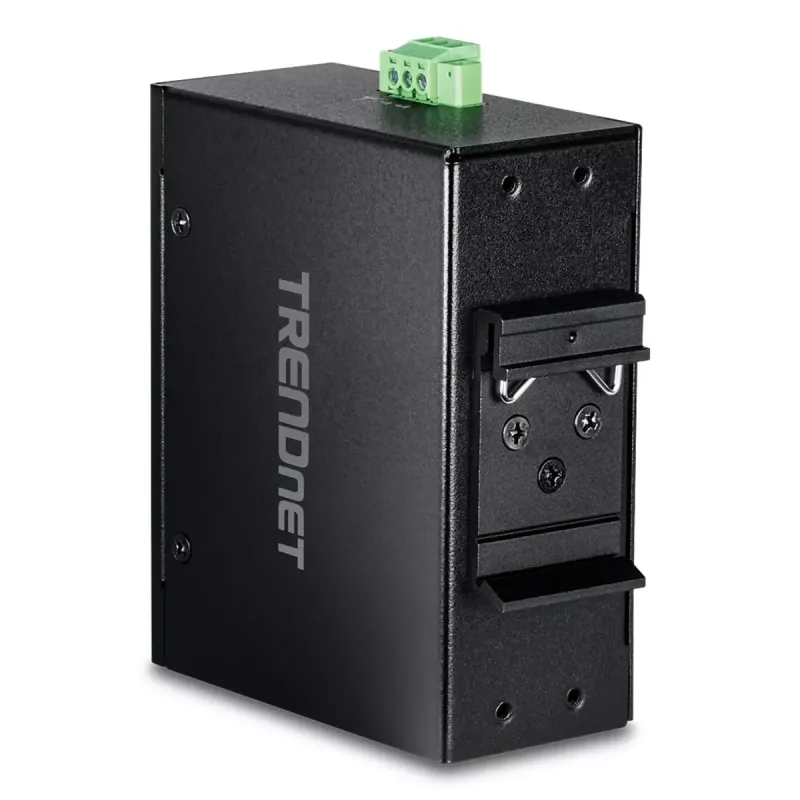

• Mounting: DIN-rail and wall-mount brackets included
• Management: Unmanaged

How to use

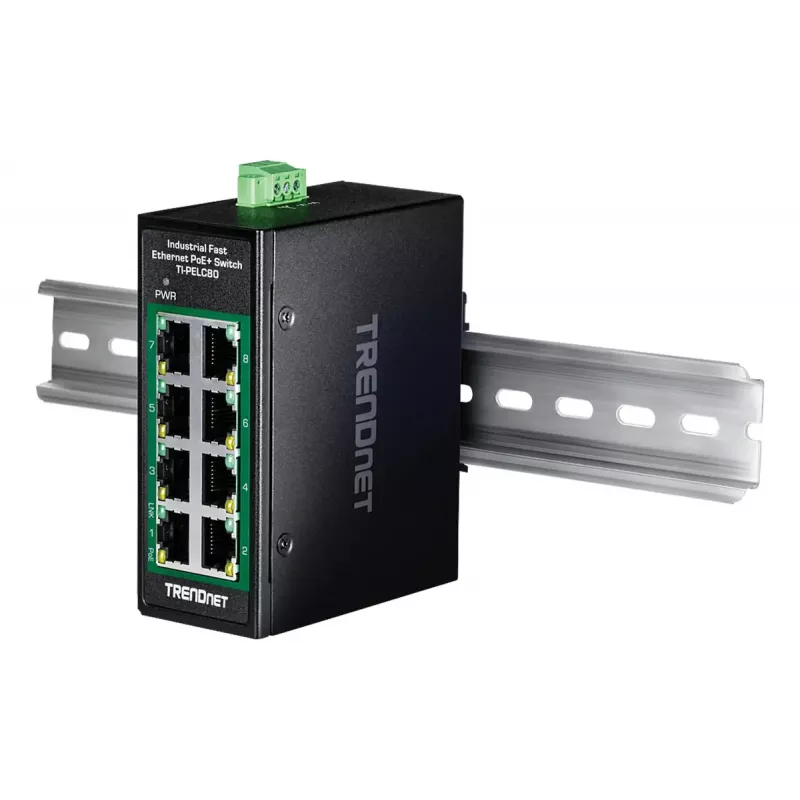

Mount the TI-PELC80 on a DIN rail or wall using the included brackets. Connect a compatible 48–56 V DC power source (sold separately) to the switch. Use standard Ethernet cables to connect PoE devices to the RJ-45 ports; the switch will automatically provide data and PoE power to IEEE 802.3af/at compliant equipment. No configuration is required for basic network and power delivery functions.

Recommendations

For reliable operation in industrial settings, use shielded Ethernet cabling where required, ensure the power supply matches the listed voltage range, and account for the 200 W total PoE budget when connecting multiple high-power devices.
