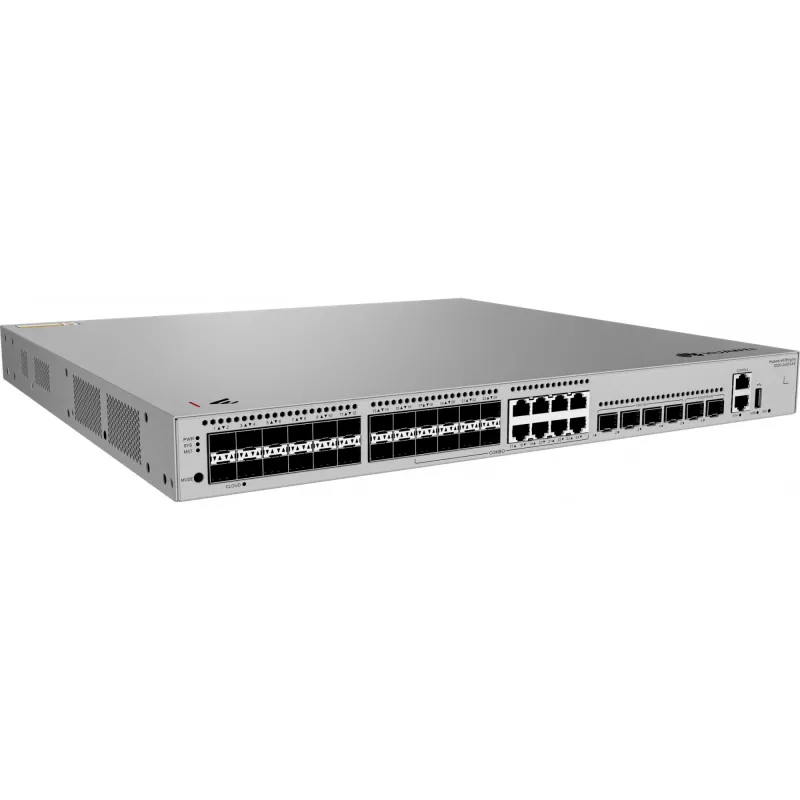

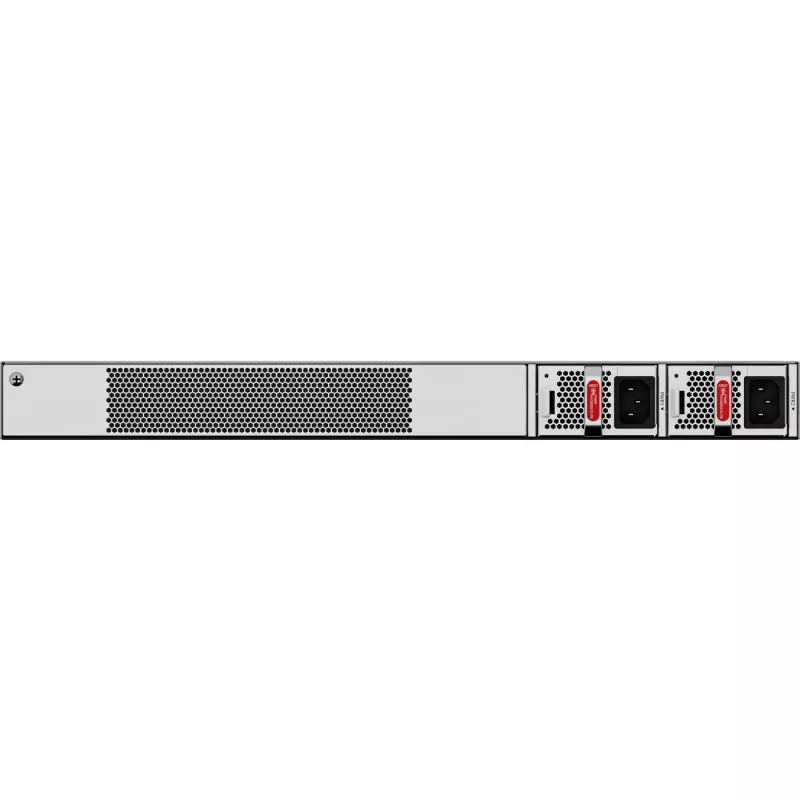

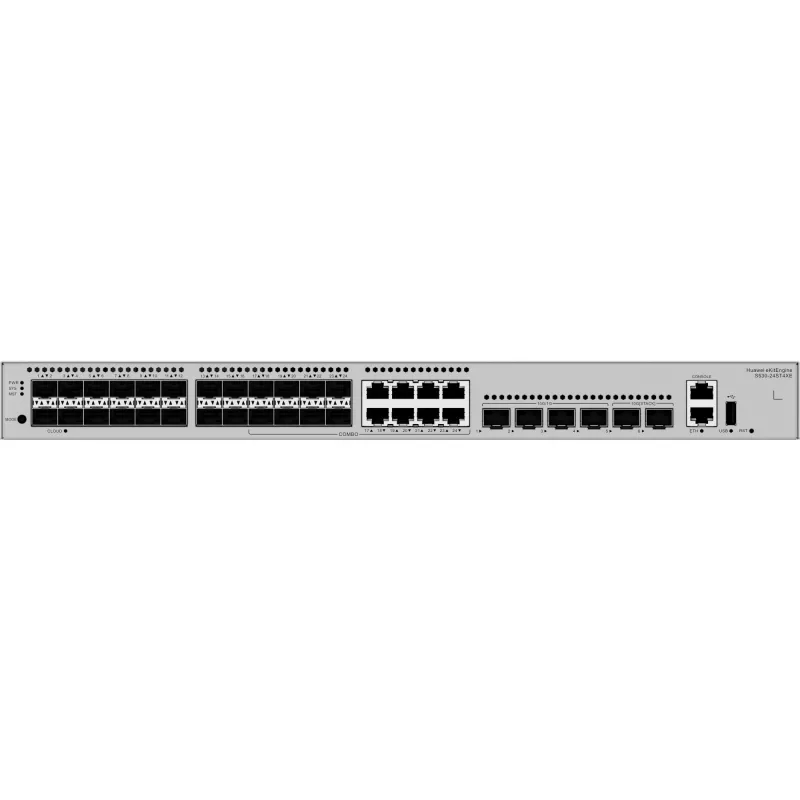

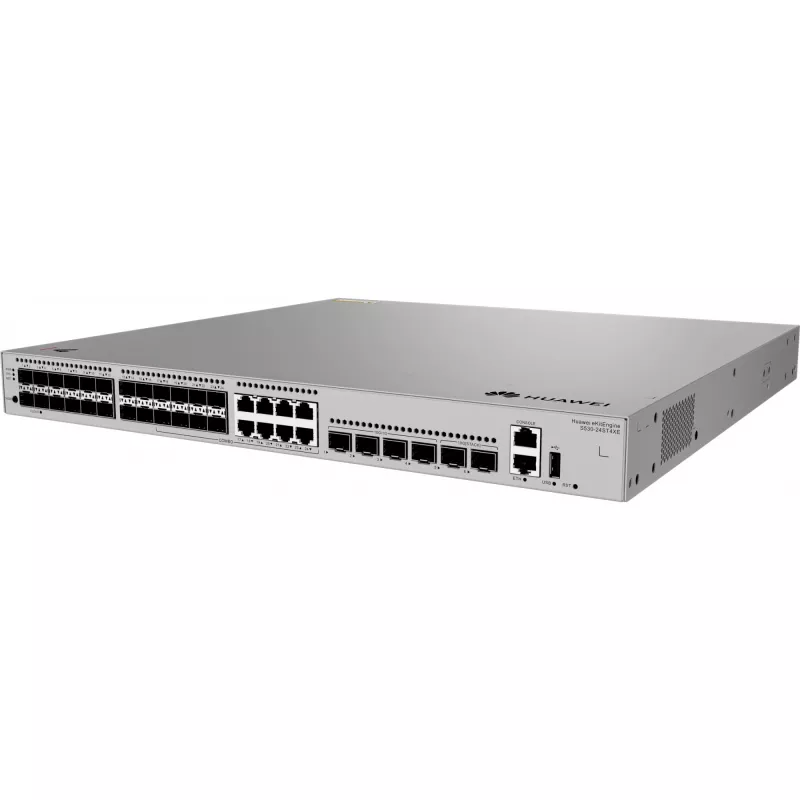

Switch gerido Huawei S530-24ST4XE L3 176 Gbit/s 1U cinzento

The Managed Switch Huawei S530-24ST4XE L3 176 Gbit/s 1U Grey is a rack-mountable layer-3 switch designed for medium to large network deployments. With a switching capacity of 176 Gbit/s, 10G support and a compact 1U form factor, this HUAWEI switch provides multi-service connectivity and centralized management options. It includes one USB 2.0 port and an RJ-45 console port, and operates from a DC input voltage range of 38–72 V. The unit’s grey finish and a weight of 5.6 kg suit data center and wiring-closet installations where space efficiency and predictable power requirements are needed.

Advantages

The switch offers Layer 3 routing capabilities combined with a 176 Gbit/s switching capacity, enabling efficient traffic handling across routed and switched segments. Built-in 10G support allows high-throughput uplinks and aggregation. A USB 2.0 port and an RJ-45 console port provide flexible local management and firmware upgrade options. The 1U rack form factor supports standardized mounting in server racks while the DC 38–72 V input accommodates varied power architectures. Its managed switch design enables configuration, monitoring, and integration into existing network management systems.

Suitable for (tasks / use cases)

• Aggregation switch in campus or branch networks
• Top-of-rack switch in small to medium data centers
• Routing between VLANs and inter-subnet traffic management
• High-speed uplinks and link aggregation with 10G capacity

Key specifications

• Switch type: Managed
• Layer: L3 (Layer 3 routing capabilities)
• Switching capacity: 176 Gbit/s
• 10G support: Yes
• Ports for management: USB 2.0 port and RJ-45 console port
• Form factor: 1U rack-mountable
• Input voltage: DC 38–72 V
• Colour: Grey
• Weight: 5.6 kg

How to use

Mount the Huawei S530-24ST4XE into a standard 19-inch rack using the included or compatible rack ears and fasteners to secure the 1U unit. Connect the DC power source within the 38–72 V range to the designated power input following site power policies. Use the RJ-45 console port for initial configuration and troubleshooting via a terminal connection, or use the USB 2.0 port for local file transfers such as firmware updates. Configure Layer 3 routing, VLANs, and link aggregation through the switch’s management interface—CLI or supported network management system—according to your network design and addressing plan.

Recommendations

Place the switch in a ventilated rack location with proper airflow and ambient temperature control. Ensure DC power redundancy where available and follow ESD and grounding procedures during installation. Keep firmware up to date and back up configuration after initial setup to maintain stability and security.
