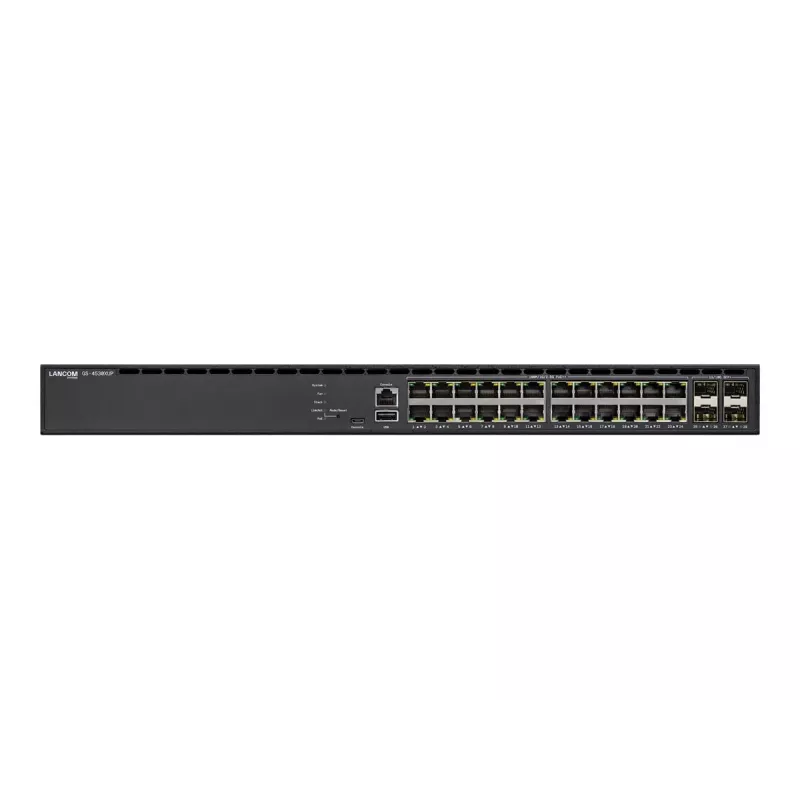

Switch gerido LANCOM GS-4530XUP L3 30x portas Ethernet 2,5G

The LANCOM GS-4530XUP is a fully managed Layer‑3 access switch with 30 industry‑standard 2.5G Ethernet ports, PoE++ support and uplink/stacking interfaces. Designed for data‑intensive enterprise infrastructures, it delivers wirespeed performance via a 360 Gbps backplane and provides high PoE power reserves to feed energy‑hungry devices such as Wi‑Fi 6/6E access points, PoE lighting or displays. The switch includes hot‑swappable power supply capability, SFP+/QSFP+ uplinks and can be orchestrated centrally via the LANCOM Management Cloud (LMC).

Advantages

The switch supports IEEE 802.3bt (PoE++) plus legacy PoE standards and offers a total PoE budget of up to 1,440 W with dual power supplies. Stacking allows up to eight physical switches to operate as one logical unit with hitless failover and automatic configuration distribution. Full Layer‑3 features, OSPF support and a large MAC table enable efficient routing and high throughput for meshed and distributed networks. Hardware redundancy with redundant fans and optional second PSU ensures continuous operation, while hybrid management (CLI, web GUI, LANtools or LMC) provides flexible administration options. The device is covered by the LANCOM Limited Lifetime Warranty.

Suitable for

• Campus and enterprise access networks requiring multi‑Gigabit per‑port performance
• Deployments with Wi‑Fi 6 / Wi‑Fi 6E access points needing 2.5G uplinks
• Environments that require centralized PoE power delivery for lighting, displays or surveillance
• Multi‑site or high‑availability networks using stacked switches and centralized cloud management

Key specifications

• Ports: 30 × 2.5G RJ‑45 Ethernet (100/1000/2500), 4 × SFP+, 2 × QSFP+
• PoE: IEEE 802.3af/at/bt (PD‑Type 4), up to 90 W per port, up to 1,440 W PoE budget with dual PSUs
• Switching capacity: 360 Gbps backplane (wirespeed)
• Layer: Full Layer‑3 with OSPF and policy‑based routing
• MAC address table: 32,000 entries
• Management: LANtools, web GUI, generic CLI, LANCOM Management Cloud (LMC)
• Redundancy: Hot‑swappable PSU, optional second PSU, redundant fan concept
• Weight and colour: ~5.5 kg, black

How to use

Install the GS‑4530XUP in a standard 19" rack and connect uplink ports (SFP+/QSFP+) to aggregation or core switches. Attach PoE devices to the 2.5G RJ‑45 ports; the switch negotiates appropriate PoE class automatically. For stacking, connect stack links via the front SFP+ or rear QSFP+ ports and enable stacking in the management interface so the stack manager distributes configuration to members. Use the chosen management method (LMC, web GUI, CLI or LANtools) to assign VLANs, routing policies and PoE power allocation.

Recommendations

For deployments with many high‑power PoE devices, fit two power supplies to guarantee the full PoE budget and enable redundant power. Use the LANCOM Management Cloud for centralized orchestration of stacks and fast mass configuration rollouts. Ensure SFP+/QSFP+ modules and direct‑attach cables meet vendor compatibility to maintain warranty and tested performance.
