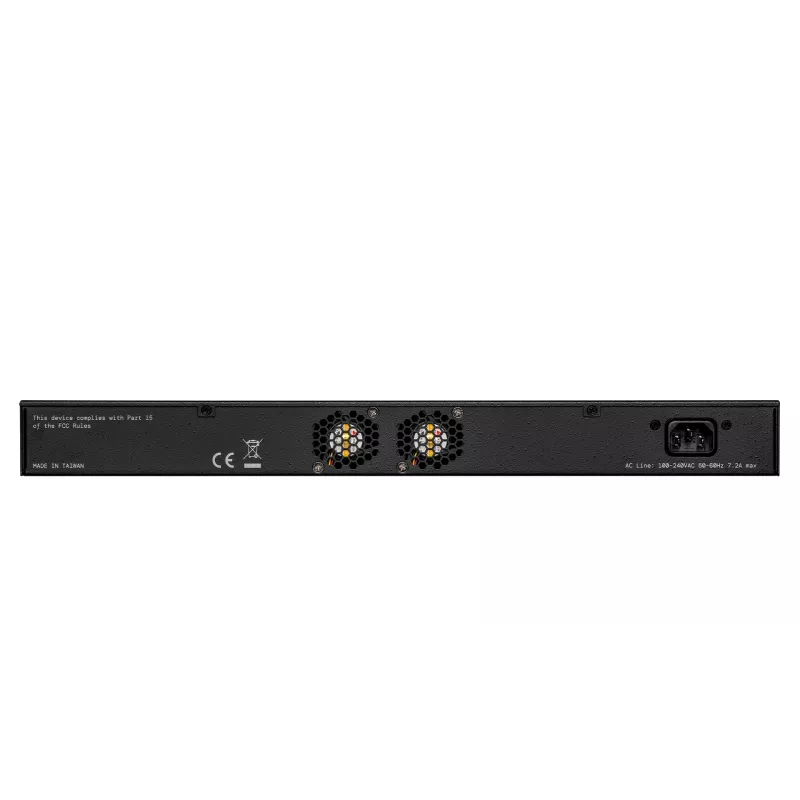

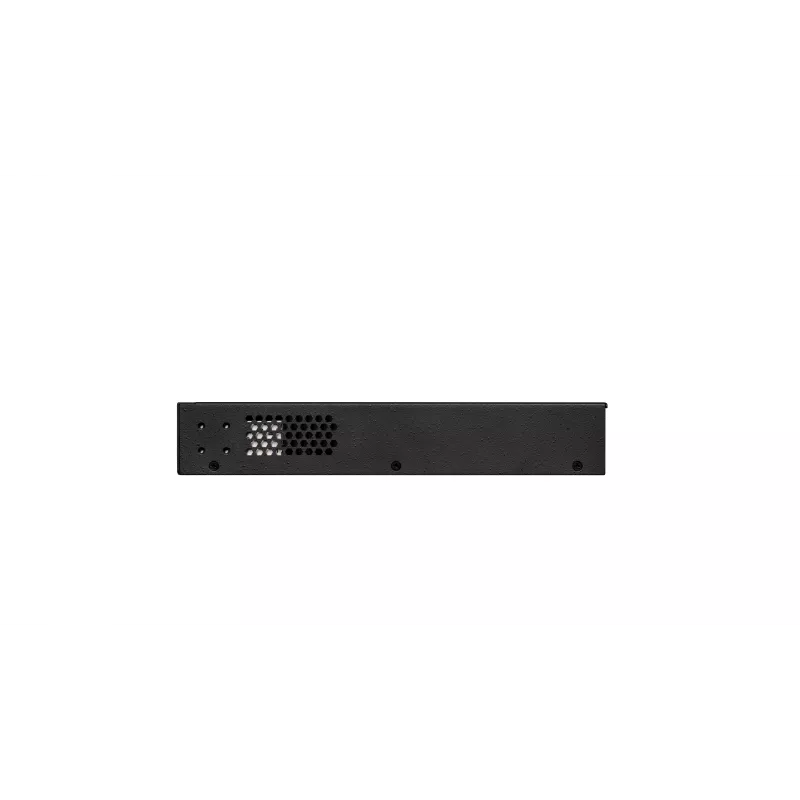

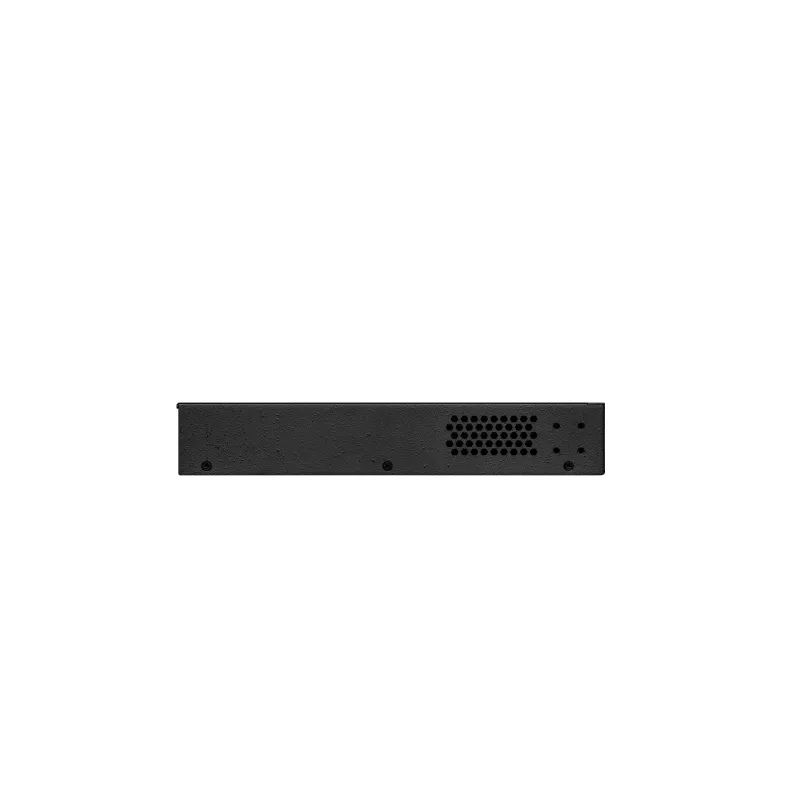

Switch gerido LANCOM XS-3510YUP L2/L3 2.5G 8 portas

The LANCOM XS-3510YUP is a 10G multi‑Gigabit PoE++ managed access switch designed for small infrastructures that need to power and connect high‑performance network devices. It provides four 1 Gbit/s Ethernet ports and eight 2.5 Gbit/s multi‑Gigabit Ethernet ports with PoE+ / PoE++ support for powering up to eight PoE devices without additional electrical work, plus two SFP28 uplink ports for up to 25 Gbit/s uplink throughput. The switch supports basic Layer 3 functions such as static routing and DHCP server, a MAC address table sized for typical small deployments, and complies with common IEEE standards to ensure interoperability.

Advantages

The managed LANCOM XS-3510YUP combines multi‑Gigabit performance and PoE++ power delivery in a compact 1U rack form factor, enabling simple integration of Wi‑Fi access points and other power‑hungry devices. It offers multiple management options (web GUI, CLI, or LANCOM Management Cloud) and includes configurable security features such as IEEE 802.1X access control. Two SFP28 uplink ports provide future‑proof uplink speeds while basic L3 features allow simple routing and DHCP services within small networks.

Suitable for

• Small office or branch networks requiring multi‑Gigabit access and PoE for access points
• Deployment with Wi‑Fi 6/7 access points and other high‑power PoE devices
• Compact rack installations (1U) where managed switching and basic L3 functions are needed

Key specifications

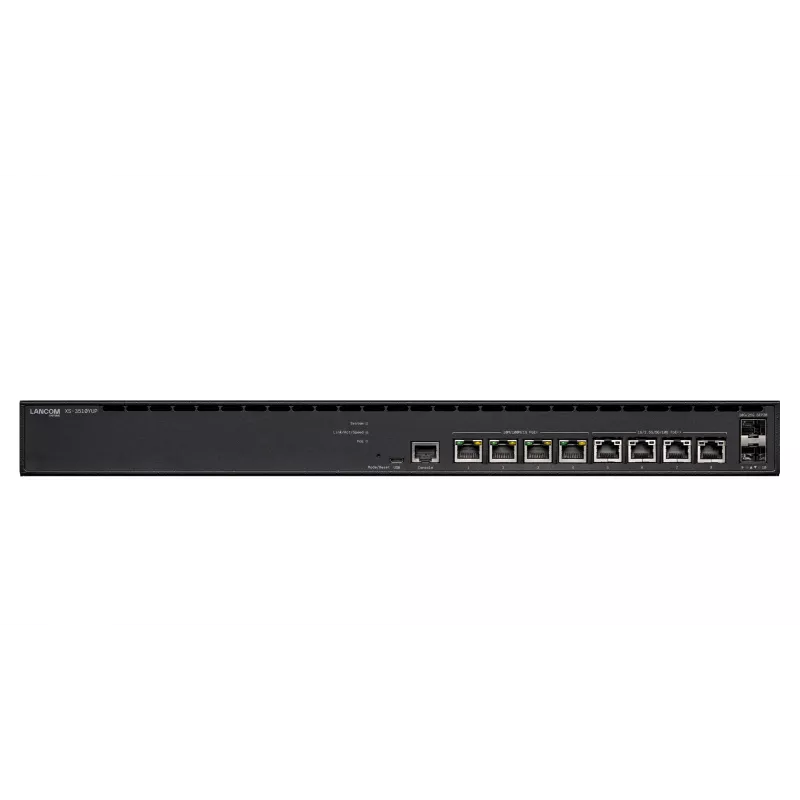

• Ports: 8 × 2.5G RJ‑45 (100/1000/2500 Mbps), 4 × 1G RJ‑45, 2 × SFP28 uplinks
• PoE support: IEEE 802.3af/at/bt (PoE+, PoE++) for up to eight devices
• Switch type: Managed L2/L3
• Layer 3: static routing, DHCP server
• MAC address table: 16,000 entries
• Standards: IEEE 802.3bt, 802.3at, 802.3af, 802.1w, 802.1s, 802.1D
• Form factor and colour: 1U rack‑mountable, black
• Weight: 2.35 kg

How to use

Install the XS‑3510YUP in a standard 1U rack and connect uplinks via the SFP28 ports for aggregation or trunking. Connect PoE devices to the 2.5G and 1G RJ‑45 ports; the switch will supply power per IEEE 802.3af/at/bt. Configure the device using the web GUI, CLI, or LANCOM Management Cloud to set VLANs, static routes and DHCP services, and to apply access control policies.

Recommendations

For stable operation, ensure the switch is mounted in a ventilated rack space and powered from a reliable AC source. Plan PoE budget according to device power classes and verify cable types support multi‑Gigabit speeds (Cat5e for 2.5G, Cat6/Cat6a recommended for higher margins).
