Switch gerido PLANET IP30 calha DIN L2+ 4 portas Gigabit Ethernet

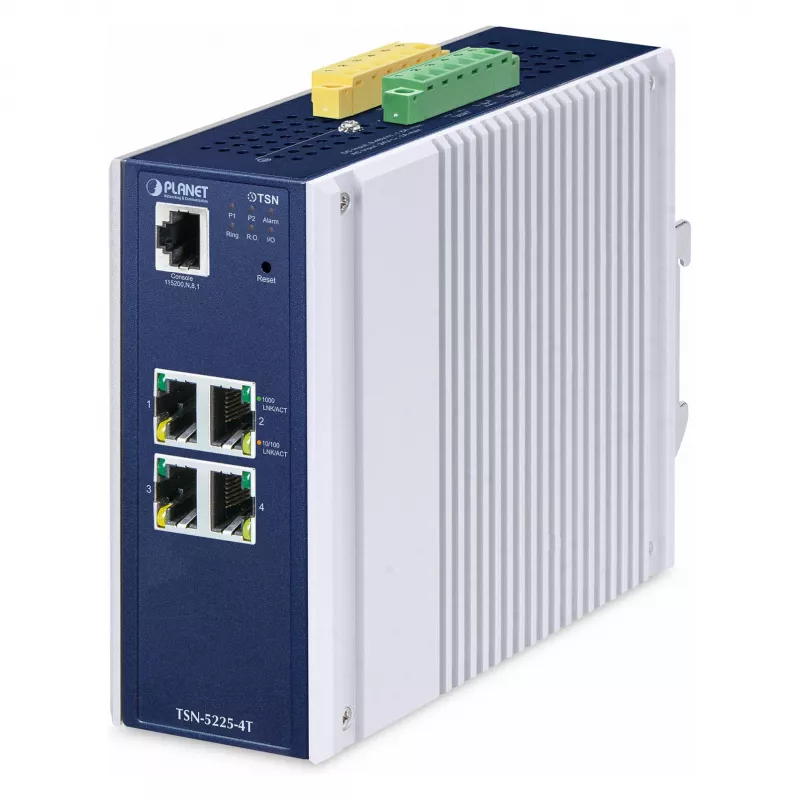

PLANET TSN-5225-4T is an industrial-grade IP30 metal‑cased Layer 2+ managed TSN Ethernet switch with four 10/100/1000BASE-T RJ45 ports. Designed for harsh environments, it operates from -40 to 75 °C and supports DIN-rail or wall mounting. The switch implements Time-Sensitive Networking (TSN) and IEEE 1588 PTPv2 to provide low-latency, time-synchronized communication for industrial automation, telecom, 5G, video streaming and VR/AR applications.

Advantages

The TSN-5225-4T guarantees end-to-end delivery of high-priority traffic with extremely low latency and hardware-based IEEE 1588v2 time stamping. It supports a full set of TSN standards (including IEEE 802.1AS-REV, 802.1Qbv, 802.1Qbu, 802.3br, 802.1Qci and 802.1CB) and provides redundant ring protection (ITU-T G.8032 ERPS), MSTP, redundant power input, and fast recovery (as low as 10 ms) for critical networks. The device offers comprehensive Layer 2–4 security (ACLs, 802.1X, DHCP Snooping, IP Source Guard, DAI), Modbus TCP integration for SCADA/HMI, and multiple management interfaces (Web, console, Telnet, SNMPv3).

Suitable for

• Industrial automation and factory floor networks
• Telecom, carrier Ethernet and 5G edge networks
• Real-time video streaming (4K/8K) and VR/AR systems
• SCADA and HMI integrations using Modbus TCP
• Distributed systems requiring precise time synchronization

Key specifications

• Model: TSN-5225-4T
• Switch type: Managed Layer 2+
• Ports: 4 x 10/100/1000BASE-T RJ45
• Switching capacity: 8 Gbit/s
• Networking standards: IEEE 802.1p/Q, 802.1AS, 802.1Qbv, 802.1Qbu, 802.3br, IEEE 1588 (PTPv2), MSTP, G.8032 ERPS
• Power input: DC 9–48 V (redundant input supported)
• Operation temperature: -40 to 75 °C
• Dimensions/case: IP30 metal case; DIN‑rail or wall mounting
• Weight: 0.962 kg
• Color: Blue / Aluminium
• Security: ACL L2–L4, 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection

How to use

Mount the TSN-5225-4T on a DIN-rail or wall inside a suitable enclosure and connect the DC power inputs (9–48 V) with redundancy if required. Connect devices to the four Gigabit RJ45 ports and configure TSN, IEEE 1588 PTP, VLANs, QoS and security policies via the built-in Web GUI, console/Telnet or SNMPv3. Use Modbus TCP to integrate with SCADA/HMI systems for remote monitoring of port, DI/DO and device status. For ring topologies, enable ERPS for fast recovery and configure MSTP where needed.

Recommendations

For reliable time-sensitive performance, enable IEEE 1588 PTP in combination with TSN scheduling (802.1Qbv) and use hardware timestamping. Place the switch in a stable temperature environment within the specified range and employ redundant power and ERPS ring topology for critical installations. Regularly monitor the device using SNMPv3 or PLANET UNI-NMS to detect faults and to receive SMTP/SNMP trap alerts.
