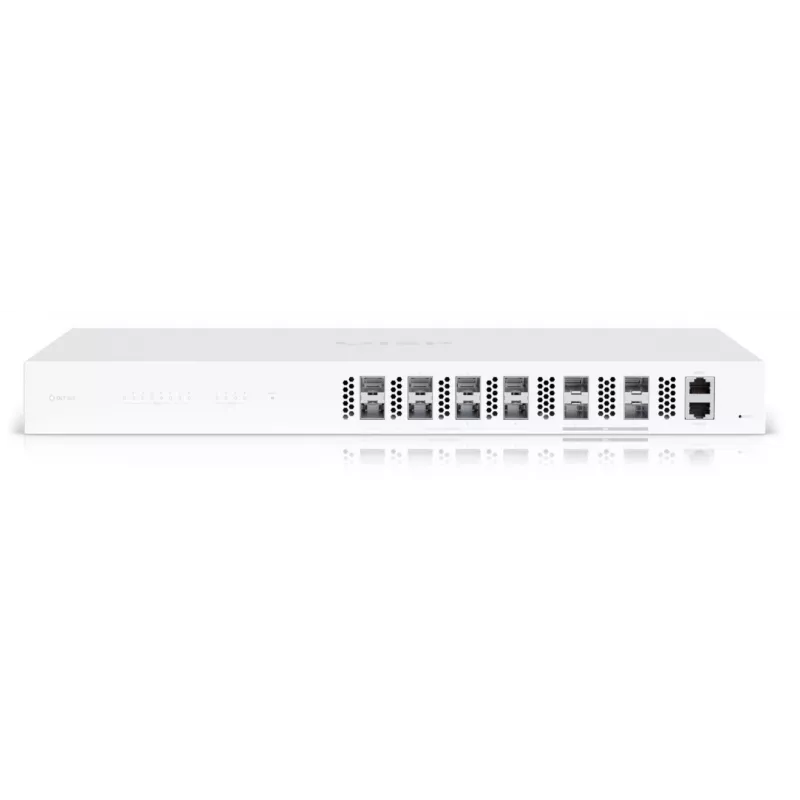

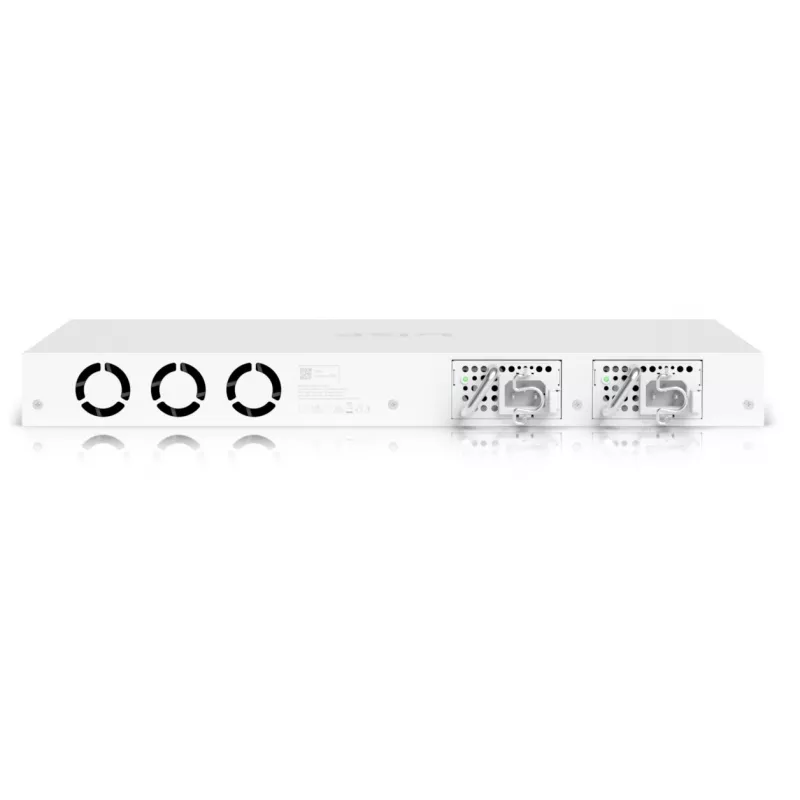

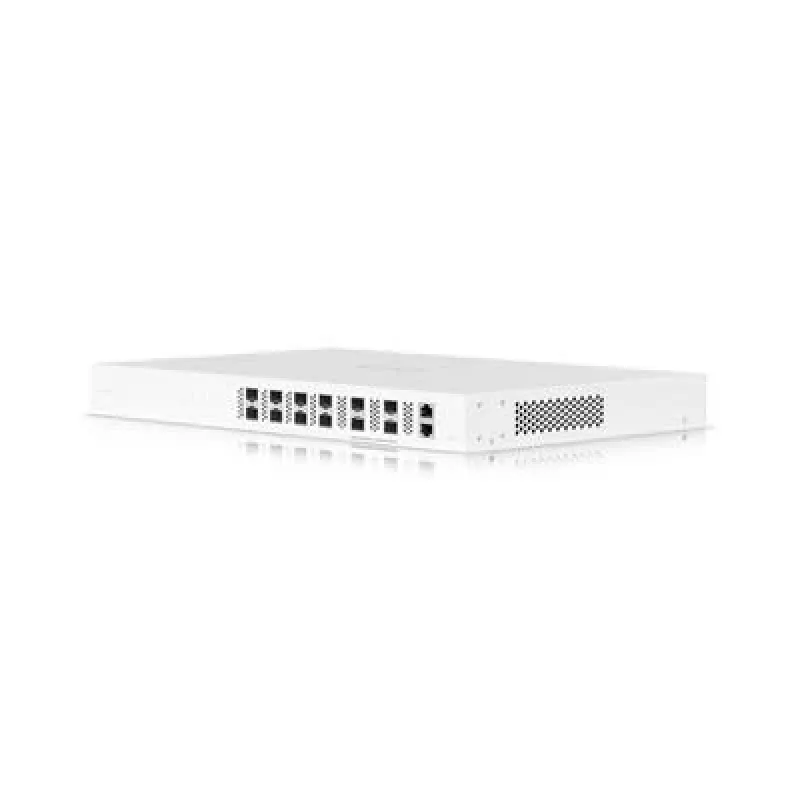

Switch gerido Ubiquiti UISP-FIBER-OLT-XGS 10 Gbit/s 1U

The Ubiquiti UISP-FIBER-OLT-XGS is an 1U managed switch and optical line terminal that supports 10 Gbps uplink and downlink speeds and includes eight SFP+ ports to serve fiber subscribers. It also provides two RJ-45 Ethernet ports and a console RJ-45 port, and is designed for rack mounting in server rooms and network closets.

Advantages

This managed device combines a compact 1U rack-mountable form factor with eight SFP+ ports for high-speed fiber access and two RJ-45 Ethernet ports for copper connectivity. The unit supports 10 Gbit/s switching capacity, offers a dedicated RJ-45 console interface, and is built in a white enclosure suitable for professional deployments where space efficiency and managed features are required.

Suitable for

• ISPs and service providers deploying fiber-to-the-home or business access
• Data center edge and aggregation in small to medium racks
• Managed enterprise networks needing 10G fiber uplinks
• Network closets where 1U rack space is preferred

Key specifications

• Switch type: Managed
• 10G support: Yes (SFP+ ports)
• Fiber ports: 8 × SFP+
• Ethernet ports: 2 × RJ-45
• Console port: RJ-45
• Form factor: 1U rack-mountable
• Color: White
• Weight: 5.29 kg

How to use

Install the UISP-FIBER-OLT-XGS in a standard 19-inch rack using the supplied mounting brackets. Connect fiber subscriber lines to the SFP+ modules and copper links to the RJ-45 ports. Attach the RJ-45 console to configure device settings via the management interface, and connect power using the AC-in jack. After initial configuration, provision subscriber profiles and VLANs as required to manage traffic and services.

Recommendations

Place the unit in a cooled, ventilated rack space and ensure fiber transceivers are compatible with the SFP+ slots. Use surge protection on the power feed and follow Ubiquiti’s configuration best practices for subscriber management and security.
