Switch industrial não gerido D-Link de 5 portas com 5 portas 10/100 BaseT(X)

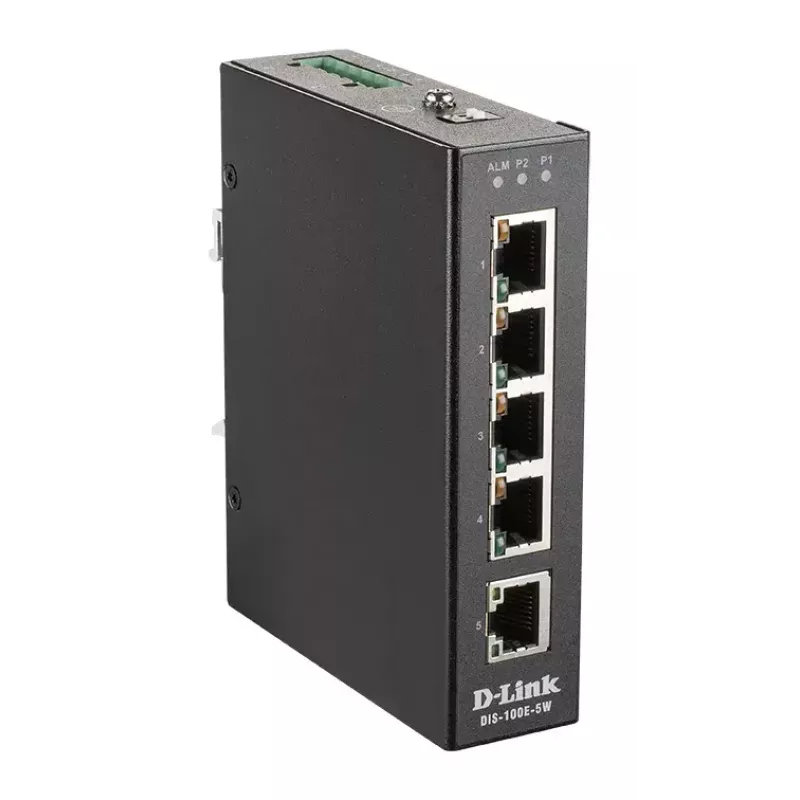

The D-Link DIS-100E-5W is an unmanaged L2 Fast Ethernet switch with five 10/100BaseT(X) RJ-45 ports designed for simple network expansion. It forwards Ethernet frames reliably with support for full-duplex communication and a MAC address table of 1000 entries. The switch accepts a wide DC input voltage (12–58 V), is compact and lightweight (0.32 kg), and is suitable for wall or DIN-rail mounting, making it appropriate for industrial and outdoor deployments where a rugged, low-maintenance device is required.

Advantages

The DIS-100E-5W offers plug-and-play operation for fast deployment and requires no configuration. Its fanless design and robust housing reduce moving parts and maintenance needs, while certification for vibration, shock, free-fall and electromagnetic compatibility increases reliability in demanding environments. The unit operates across a wide temperature range (-40°C to +75°C) and supports cold start at -40°C, helping to maintain uptime in harsh conditions.

Suitable for

• Small industrial networks and factory automation
• Smart city surveillance and security camera connections
• Outdoor wireless network backhaul and access points
• Compact office or branch office network expansion

Key specifications

• Model: D-Link DIS-100E-5W (MPN: DIS-100E-5W, EAN: 0790069441271)
• Switch type: Unmanaged L2 Fast Ethernet
• Ports: 5 x 10/100BaseT(X) RJ-45
• MAC address table: 1000 entries
• Standards: IEEE 802.3x
• Power input: DC 12–58 V
• Operating temperature: -40°C to +75°C (cold start from -40°C)

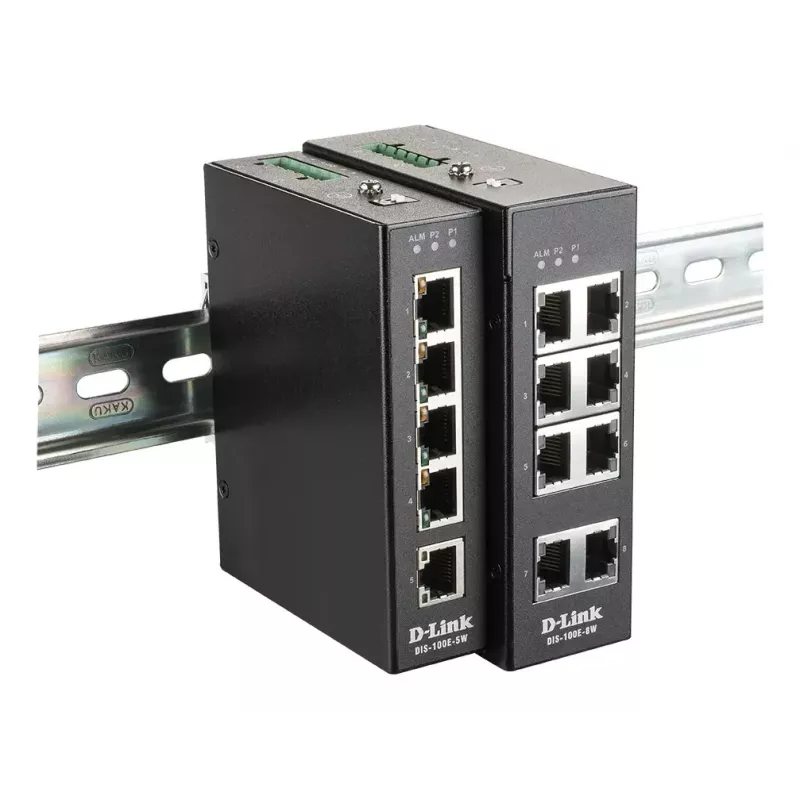

• Mounting: DIN-rail clip and wall mount support
• Weight: 0.32 kg
• Colour: Black
• Design: Fanless, rugged housing

How to use

Mount the DIS-100E-5W on a DIN rail or secure it to a wall using the provided mounting options. Connect Ethernet cables to the RJ-45 ports and provide DC power within the 12–58 V range. The switch operates in unmanaged mode — it requires no configuration and will automatically forward frames and manage link negotiation and full-duplex communication according to connected devices.

Recommendations

Install the unit in a location with adequate airflow and within the specified temperature range. Use surge protection and properly rated DC power supplies in industrial or outdoor installations. For critical deployments, verify environmental certifications and consider regular visual inspections to ensure connectors and mounting remain secure.
