Switch inteligente PoE Gigabit Hikvision DS-3E1528P-SI-24P4F de 24 portas, 4x portas Gigabit de fibra ótica, 370 W

The Hikvision DS-3E1528P-SI-24P4F is a 24-port gigabit smart PoE switch with 4 gigabit fiber ports. It offers a total PoE power budget of 370 W and supports features such as DHCP Snooping, VLAN 802.1Q, ACL, STP/ERPS, ARP anti-spoofing, SNMP, and QoS. It provides 6 kV surge protection and is housed in a metal case.

Key features

• 24 × gigabit PoE ports, 4 × gigabit fiber ports
• Total PoE power budget: 370 W
• DHCP Snooping
• VLAN 802.1Q
• ACL support
• STP/ERPS – loop prevention and storm control
• ARP anti-spoofing protection
• SNMP and QoS
• 6 kV surge protection

Specifications

• Model: DS-3E1528P-SI-24P4F
• Housing: Metal
• Net weight: 2.8 kg (6.17 lb)

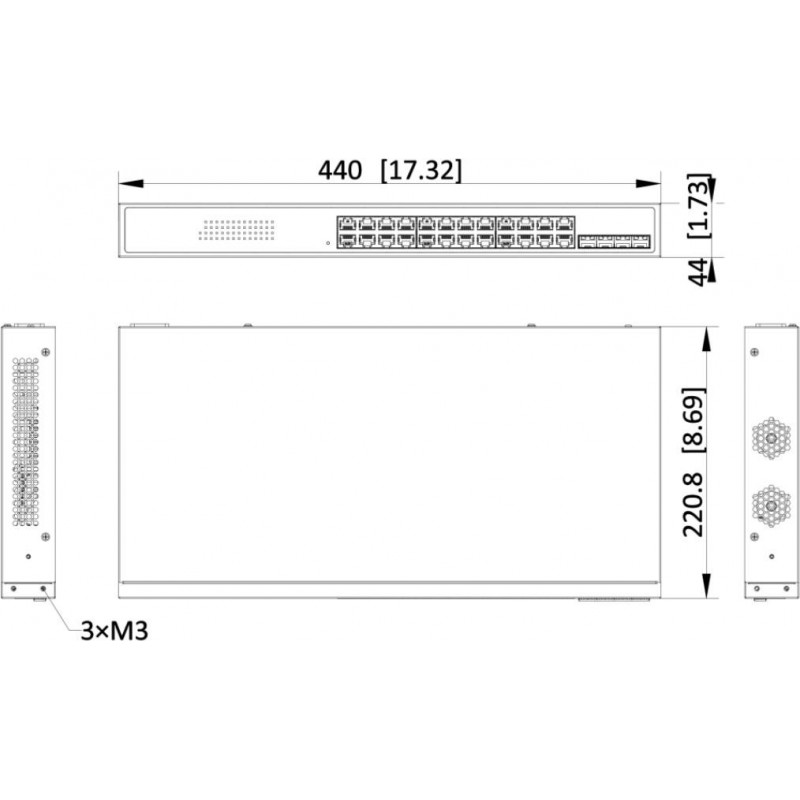

• Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”)
• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Storage temperature: -40°C to 85°C (-40°F to 185°F)
• Operating humidity: 5% to 95% (non-condensing)
• Relative humidity: 5% to 95% (non-condensing)
• Power supply: 100–240 V, 50/60 Hz, max. 6.3 A
• Mounting: Rack (mounting kit included)
• Max. power consumption: 400 W
• Idle power consumption: 10 W
• Surge protection: 6 kV
• Ports: 24 × gigabit PoE ports, 4 × gigabit fiber ports
• MAC address table: 8 K
• Switching capacity: 56 Gbps
• Packet forwarding rate: 41.66 Mpps
• Buffer memory: 4.1 Mbits
• PoE standard: IEEE 802.3af, IEEE 802.3at
• PoE power pins: End-span: 1/2(-), 3/6(+)
• PoE ports: PoE: ports 1–24
• Max. power per PoE port: 30 W
• Port isolation: Ports 1–28: port isolation mode
• Link aggregation: Static link aggregation, up to 8 groups
• QoS: Port prioritization, SP, WRR modes
• Loop prevention: IEEE 802.1D STP
• VLAN: IEEE 802.1Q, VLAN ID 1–4094, Trunk/Access mode, max. 4094 VLANs
• HPP: Remote management via Hik-Partner Pro
• Management: Web, DHCP Client, Super IP (10.180.190.200), Hik-Central Pro, Hik-Partner Pro
• Cable detection: Open, short, and cable length detection
• LLDP: IEEE 802.1ab
• SNMP: SNMP v1/v2c
• Port mirroring: Supported
• Port bandwidth limiting: Supported
• Storm control: Broadcast, multicast, and unknown unicast control
• DHCP Snooping: Supported (disabled by default)
• ACL: Up to 64 ACL entries, up to 128 rules
• IP Source Guard: Port/MAC/IP binding, up to 256 entries
• EMC certificates: EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020, ICES-003:2020, RCM
• Safety: CB (IEC 62368-1:2014), CE-LVD (EN 62368-1:2014+A11:2017)
• Environmental compliance: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (EC No.1907/2006)
