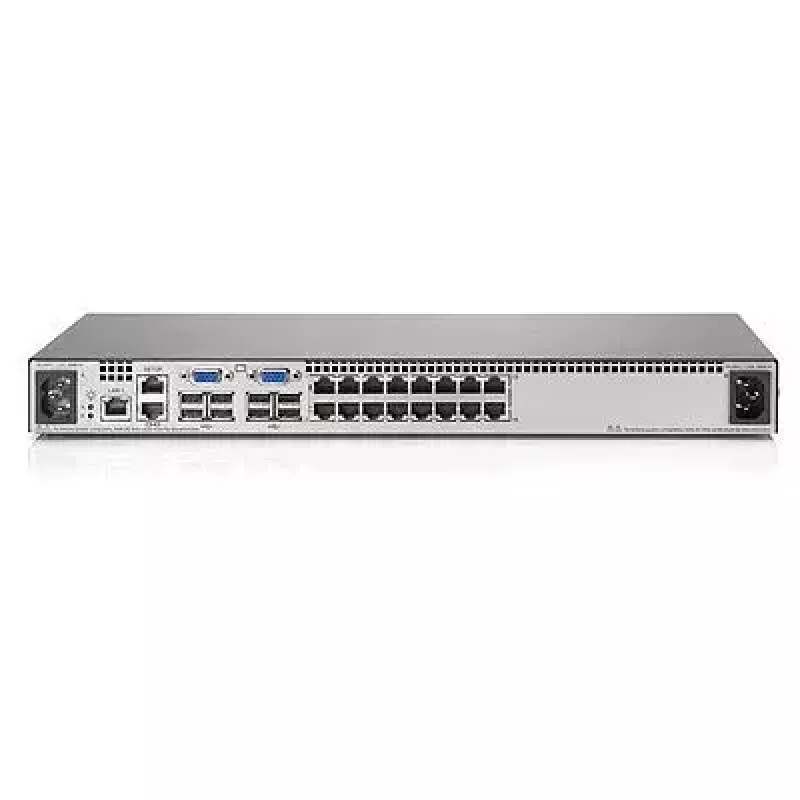

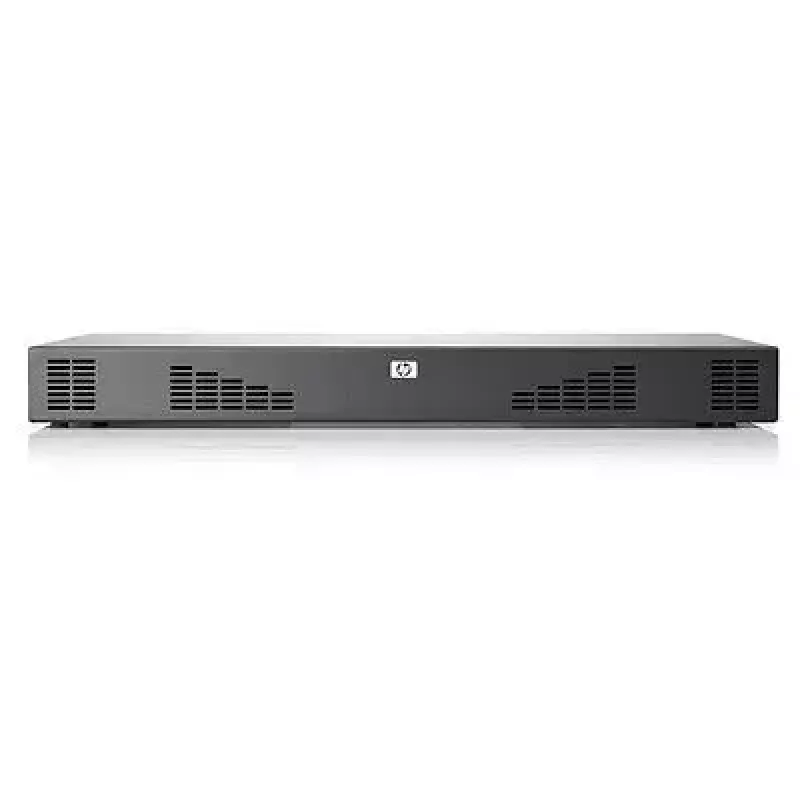

Switch KVM HPE AF618A preto

The HPE AF618A (HP IP Console Switch G2 with Virtual Media and CAC support) is a rack-mountable KVM switch that enables secure remote and local management of multiple servers from a single keyboard, video and mouse console. It supports virtual media mapping of removable drives or ISO images for remote software installation and upgrades, and includes Common Access Card (CAC) support for two-factor authentication. The switch is compatible with Windows and Linux operating systems and is designed for heterogeneous data center environments where centralized access and security are required.

Advantages

The HPE AF618A provides both local and remote access with the same On-Board Web Interface (OBWI) experience, simplifying configuration and maintenance. Virtual Media functionality allows administrators to map ISO images or removable drives to a connected server for installations and upgrades without physical access. Built-in CAC (smart card) support enables two-factor authentication to strengthen data center security. The unit supports up to 16 connected computers, offers wired connectivity, and is supplied in a 1U rack form factor with a compact footprint.

Suitable for

• Data center server management
• Remote software installation and OS upgrades
• Environments requiring two-factor authentication (CAC/Smart Card)
• Mixed OS environments (Windows and Linux)

Key specifications

• Model: HPE AF618A (HP IP Console Switch G2)
• Controlled computers: up to 16
• Users: supports 2 local users
• Connectivity: wired
• Virtual media: supports mapping of removable drives and ISO images
• Security: Common Access Card (CAC) / Smart Card support for two-factor authentication
• Compatibility: Windows, Linux
• Weight: 3.2 kg
• Dimensions: 438 x 236.8 x 43.6 mm
• Colour: Black

How to use

Install the HPE AF618A in a standard 1U rack space and connect it to the servers you need to manage using the appropriate KVM cables. Access the local console or the On-Board Web Interface for remote management to configure user accounts, security settings and virtual media mappings. To perform remote installations, mount a removable drive or ISO image via the virtual media feature and assign it to the target server session. For environments using CAC, configure smart card authentication according to your agency or company policies and enroll user credentials.

Recommendations

Place the switch in a secure rack location and restrict physical access. Keep firmware up to date using the OBWI update function, and follow your organization’s security procedures when enabling CAC and remote access. Use compatible KVM cables and verify OS compatibility before major upgrades.
