Switch não gerido D-Link de 5 portas com 4 portas 10/100/1000BaseT(X) (4 PoE) e 1 porta 100/1000BaseSFP

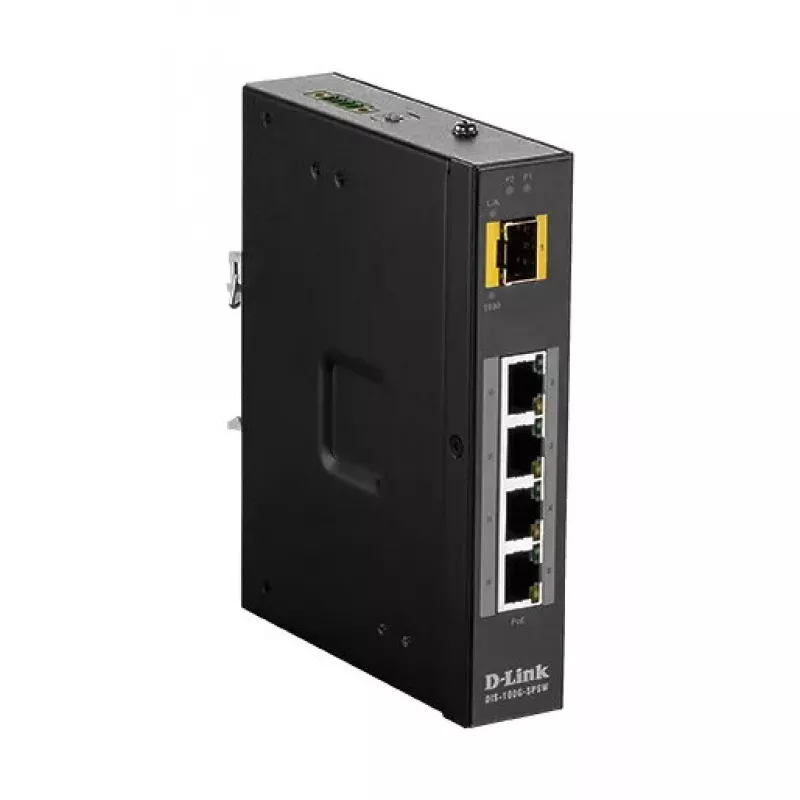

The D-Link DIS-100G-5PSW is an unmanaged L2 Gigabit Ethernet switch with four 10/100/1000 RJ-45 ports that support PoE and one 100/1000 SFP slot. It provides a 10 Gbit/s switching capacity, a MAC address table of 2000 entries and operates from a 12–58 V DC input. The compact, fanless metal housing and industrial certifications make it suitable for deployments that require rugged, reliable connectivity in constrained spaces and harsh environments.

Advantages

The switch offers plug-and-play unmanaged operation for fast deployment, PoE power delivery with a 120 W budget to feed compatible devices, and a small footprint for efficient cabinet use. Its fanless design reduces maintenance, while operating temperature range down to −40 °C and up to +75 °C, plus mechanical and EMC certifications, increase uptime in industrial or outdoor scenarios.

Suitable for

• IP cameras and smart city surveillance
• Factory automation and industrial Ethernet segments
• Outdoor wireless backhaul and remote site connectivity
• Small network closets and compact cabinets

Key specifications

• Switch type: Unmanaged L2
• Ports: 4 x 10/100/1000 RJ-45 (PoE), 1 x 100/1000 SFP
• PoE budget: 120 W
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, 802.3af, 802.3at, 802.3az
• Input voltage: 12–58 V DC
• Operating temperature: −40 °C to +75 °C (cold start at −40 °C)
• Dimensions: 139 x 29 x 107 mm
• Weight: 0.375 kg
• Colour: Black

How to use

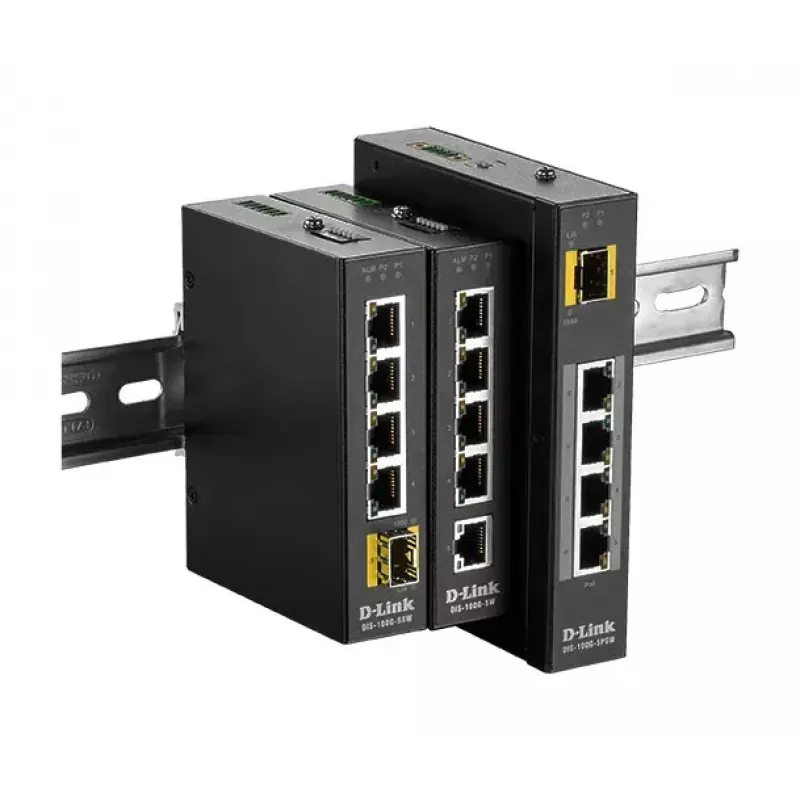

Mount the DIS-100G-5PSW on a DIN rail using the snap-to-rail clip or fasten it to a wall. Connect power within the specified 12–58 V DC range. Plug Ethernet devices into the RJ-45 PoE ports and, if required, insert an SFP module into the SFP slot for fibre connectivity. The switch operates in unmanaged plug-and-play mode and will forward Ethernet frames automatically without configuration.

Recommendations

Place the switch in a location with adequate ventilation and within the supported temperature range. Use PoE power budget planning to ensure total connected devices do not exceed 120 W. For fibre links, use compatible 100/1000 SFP modules. Follow local grounding and cabling best practices in industrial or outdoor installations.
