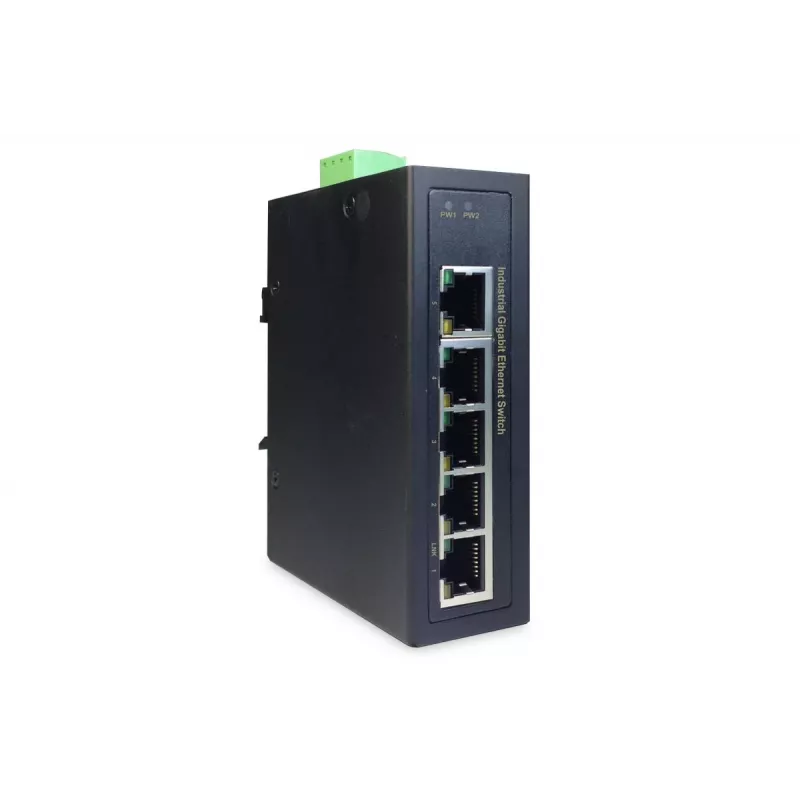

Switch não gerido Digitus DN-651107 5 portas Gigabit Ethernet

The DIGITUS Unmanaged Switch DN-651107 is a 5-port Gigabit Ethernet switch engineered for industrial environments. It provides five 10/100/1000Base-TX Ethernet ports in a compact, DIN rail and wall-mountable housing and supports operation in extreme temperatures from -40 °C to +85 °C. The switch is designed for reliable network extension in transport, production, traffic and safety monitoring systems and offers a plug-and-play setup without configuration.

Advantages

The unmanaged design ensures immediate deployment without management overhead, while full duplex Gigabit ports deliver up to 10 Gbit/s switching capacity. The switch complies with common IEEE networking standards and includes an 8000-entry MAC address table for stable traffic handling. Its wide operating voltage range (DC 18–36 V), compact black industrial housing and DIN rail/wall mounting options make it suitable for constrained and harsh installations.

Suitable for

• Network extension in industrial automation and production facilities
• Data communication in transportation systems (rail, road, signaling)
• Traffic monitoring and safety surveillance networks
• Edge network ports in harsh or temperature-variable environments

Key specifications

• Model: DIGITUS DN-651107
• Ports: 5 x 10/100/1000Base-TX (RJ-45)
• Switching capacity: 10 Gbit/s
• MAC address table: 8000 entries
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Power input: DC 18–36 V
• Operating temperature: -40 °C to +85 °C
• Mounting: DIN rail and wall mount
• Color: Black

How to use

Mount the DN-651107 on a DIN rail or secure it to a wall using appropriate screws. Connect the DC power source within the specified 18–36 V range and link network devices to the RJ-45 Gigabit ports using standard Ethernet cables. The switch operates as an unmanaged plug-and-play device—no configuration is required. Verify link LEDs for port activity and ensure proper grounding and cable routing in industrial installations.

Recommendations

The switch is intended for industrial and transportation applications; install it in ventilated, dust-reduced locations when possible, protect against prolonged exposure to direct moisture, and follow local electrical safety standards when wiring the DC input.
