Switch PoE ATTE IP-17-11-H 17 portas PoE+ 250W 18 portas total 1 uplink Gigabit

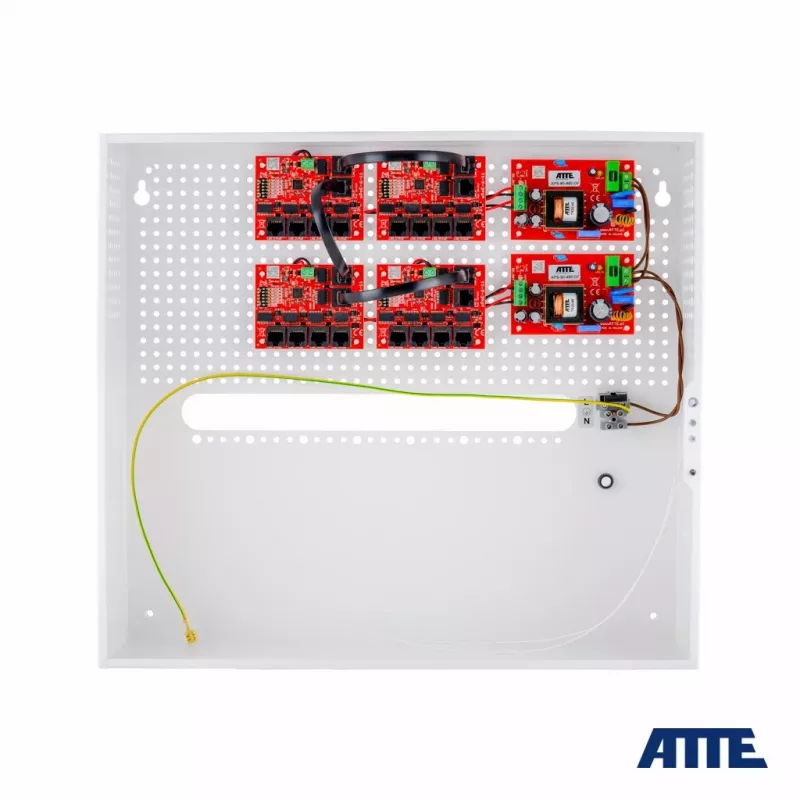

The ATTE IP-17-11-H is a high-performance PoE+ switch designed for IP camera surveillance systems. With 17 PoE ports and 1 Gigabit uplink, it provides reliable power and data transmission for up to 17 cameras. The switch features a total PoE budget of 250W, supporting IEEE 802.3af/at standards, and includes advanced features such as VLAN port isolation, Extend Mode for up to 250m transmission, and PoE Watchdog for automatic device reboot. Its robust metal housing and rack-mountable design make it suitable for both desktop and rack installations in professional environments.

Advantages

This switch simplifies IP camera deployment by combining power and data over a single Ethernet cable, eliminating the need for separate power outlets. The Extend Mode allows camera placement up to 250 meters away, ideal for large properties. PoE Watchdog automatically detects and reboots non-responsive cameras, reducing maintenance visits. Surge protection safeguards equipment against power spikes.

Suitable for

• IP camera surveillance systems (up to 17 cameras)
• Small to medium-sized businesses, warehouses, and retail stores
• Outdoor camera installations requiring long-distance cabling
• Network expansions where PoE is needed for devices like access points or VoIP phones

Key specifications

• Total Ethernet Ports: 18 (17 PoE + 1 Uplink)
• PoE Ports: 17 x 10/100Mbps RJ45
• Uplink Port: 1 x 10/100/1000Mbps RJ45
• PoE Standard: IEEE 802.3af/at
• Max PoE Power Per Port: 30W
• Total PoE Power Budget: 250W
• Switching Capacity: 7.2 Gbps
• Forwarding Rate: 5.36 Mpps
• MAC Address Table: 8K
• Jumbo Frame Support: 9K
• Network Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Special Features: VLAN (Port Isolation), Extend Mode (250m), PoE Watchdog, Surge Protection
• Power Supply: AC 100-240V, 50/60Hz (Internal)
• Operating Temperature: -10°C to 55°C
• Mounting: Desktop / Rack-mountable
• LED Indicators: Power, Link/Act, PoE Status

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure the total power draw of connected devices does not exceed 250W. The switch is best suited for fixed installations where reliable PoE delivery is critical.
