Switch PoE Fast Ethernet ROLINE 130 W 8 portas

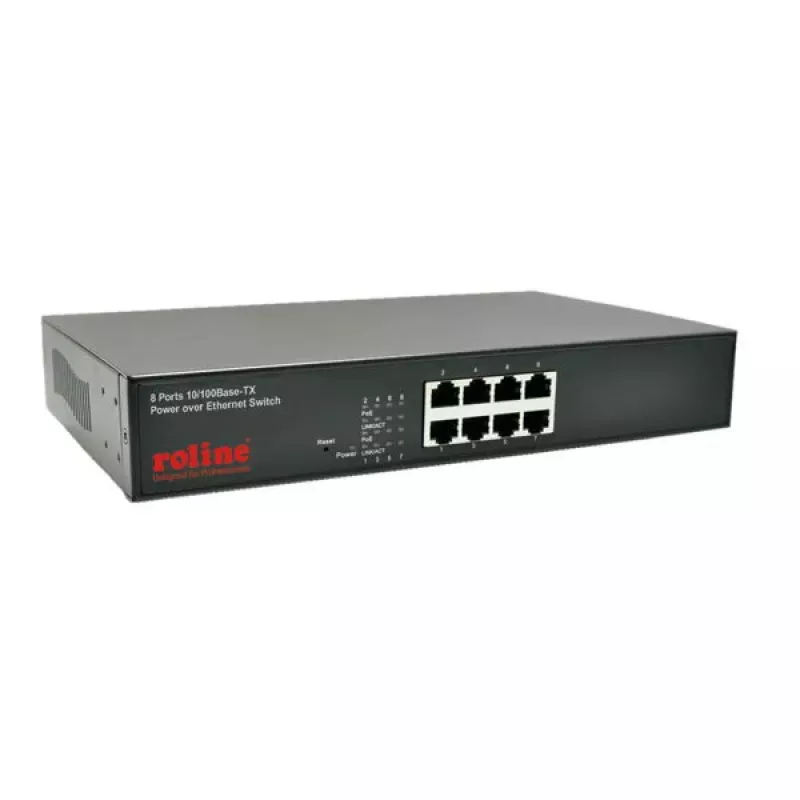

The ROLINE PoE Fast Ethernet Switch ROLINE 130 W 8 Ports is an 8-port network switch that provides Power over Ethernet (PoE) with a total output power of 130 W. It supports Fast Ethernet data rates of 10/100 Mbit/s and complies with IEEE networking standards. Designed for Cat. 5 UTP/STP cabling, the compact switch measures 266 x 160 x 44 mm, weighs 1.4 kg and accepts an input voltage of 100–240 V. The device is FCC Class A and CE certified.

Advantages

The switch delivers centralized PoE power distribution across eight ports, enabling simultaneous connection of powered devices while maintaining Fast Ethernet throughput. Compliance with IEEE standards ensures compatibility with common networking equipment and Cat. 5 cabling. Its compact size and moderate weight make it suitable for installation in constrained spaces. FCC Class A and CE markings confirm conformity with relevant regulatory requirements.

Suitable for

• Small office network segments requiring PoE for IP phones or wireless access points
• Retail or surveillance setups with PoE cameras
• Edge deployments where 10/100 Mbit/s connectivity is sufficient

Key specifications

• Ports: 8 Fast Ethernet ports (10/100 Mbit/s)
• Total PoE output power: 130 W
• Supported standards: IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3af
• Cabling: Cat. 5 UTP/STP
• Dimensions: 266 x 160 x 44 mm
• Weight: 1.4 kg
• Input voltage: 100–240 V
• Certifications: FCC Class A, CE
• Colour: Black

How to use

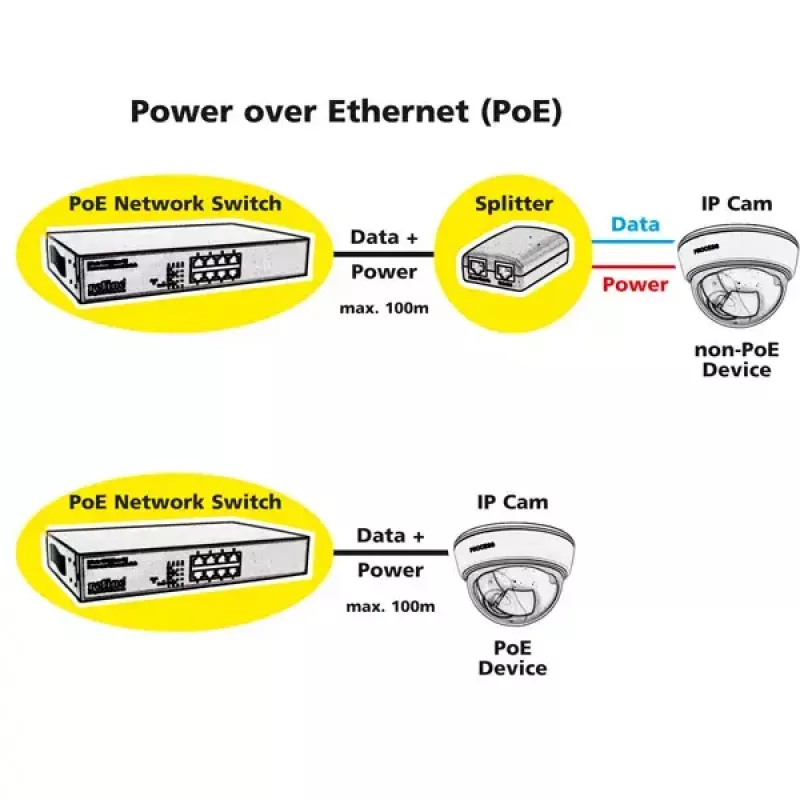

Place the switch on a stable surface or mount it according to local installation practices. Connect the switch to AC mains using the appropriate power lead (100–240 V). Link network devices using Cat. 5 UTP or STP cables to the Fast Ethernet ports; PoE-capable ports will supply power automatically to compatible devices. Ensure connected devices support 10/100 Mbit/s operation for proper communication.

Recommendations

Ensure total PoE power demand of connected devices does not exceed the switch's 130 W budget. Use appropriate CAT5-class cables and verify device compatibility with IEEE 802.3af. Install in a well-ventilated area and follow local electrical safety regulations. The manufacturer reserves the right to amend specifications, prices or graphics without prior notice and is not liable for misprints.
