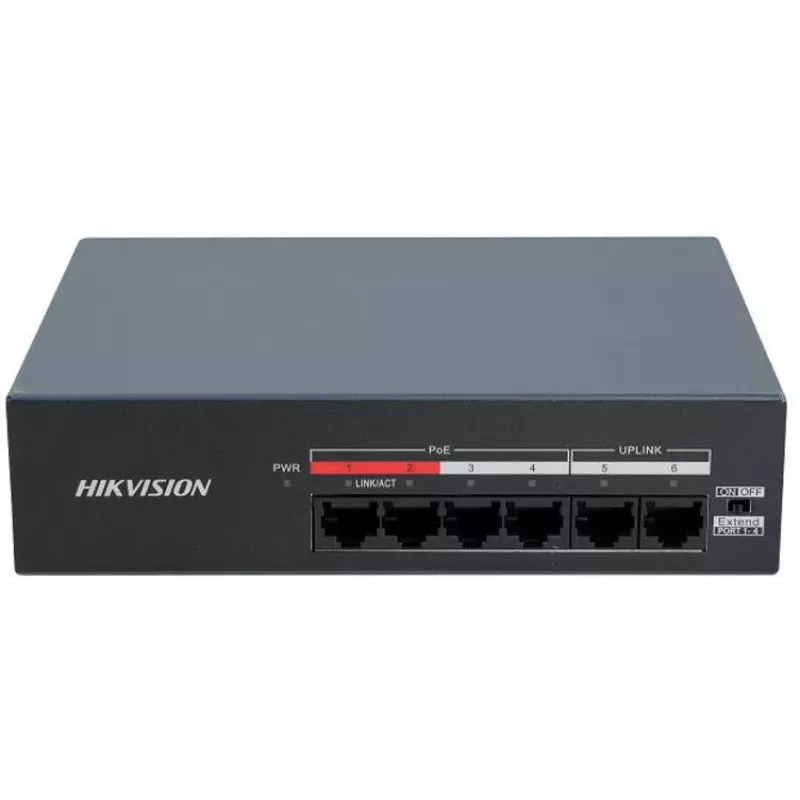

Switch PoE+ não gerido Hikvision DS-XS06-P(O-STD) 6 portas (4 portas PoE, 2 uplink Gigabit, orçamento 60W, calha DIN)

The Hikvision DS-XS06-P(O-STD) is a compact and reliable unmanaged PoE+ switch designed for IP surveillance and small network deployments. With 4 PoE ports (10/100 Mbps) and 2 Gigabit uplink ports, it delivers power and data over a single cable, simplifying installation and reducing costs. The switch supports IEEE 802.3af/at PoE standards with a total power budget of 60W, providing up to 30W per port for devices such as IP cameras, access points, and VoIP phones. Its industrial-grade design features a wide operating temperature range (-30°C to 65°C), DIN rail and wall-mounting options, and robust surge protection (6KV) for reliable operation in harsh environments.

Advantages

Plug-and-play unmanaged operation eliminates configuration complexity. PoE+ support powers high-consumption devices directly via Ethernet cable. Compact metal housing with DIN rail mounting saves space in cabinets. Extended temperature range ensures performance in outdoor or unconditioned spaces. Surge and ESD protection enhance system reliability.

Suitable for

• IP surveillance systems (Hikvision cameras and NVRs)
• Small office/home office (SOHO) networks
• Industrial automation and control
• Wireless access point deployments
• Edge computing and IoT gateways

Key specifications

• Ports: 4x PoE (10/100 Mbps) + 2x Uplink (10/100/1000 Mbps)
• PoE Standard: IEEE 802.3af/at, total budget 60W, max 30W per port
• Switching Capacity: 5.6 Gbps
• Packet Forwarding Rate: 4.166 Mpps
• MAC Address Table: 2K entries
• Power Input: DC 48-57V (external power supply included)
• Max Power Consumption: ≤65W (with PoE load)
• Operating Temperature: -30°C to 65°C

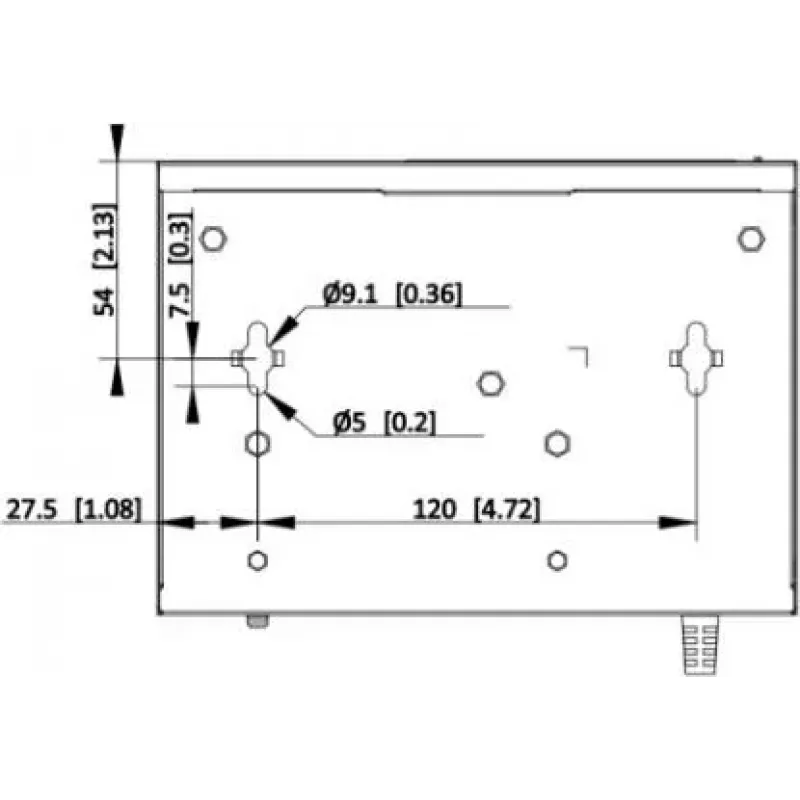

• Mounting: DIN rail, wall-mountable
• Surge Protection: 6KV on PoE and power ports
• ESD Protection: Yes
• Management: Unmanaged

Recommendations

For optimal performance, use with Hikvision IP cameras and NVRs. Ensure the power supply provides adequate wattage for connected PoE devices. The switch is ideal for edge installations where reliability and environmental resilience are critical.
