Switch PoE+ não gerido POE LANG TC-P3S06, 4x 10/100Mbps RJ45 PoE+ (60W), 2x uplink SFP, desktop/metal

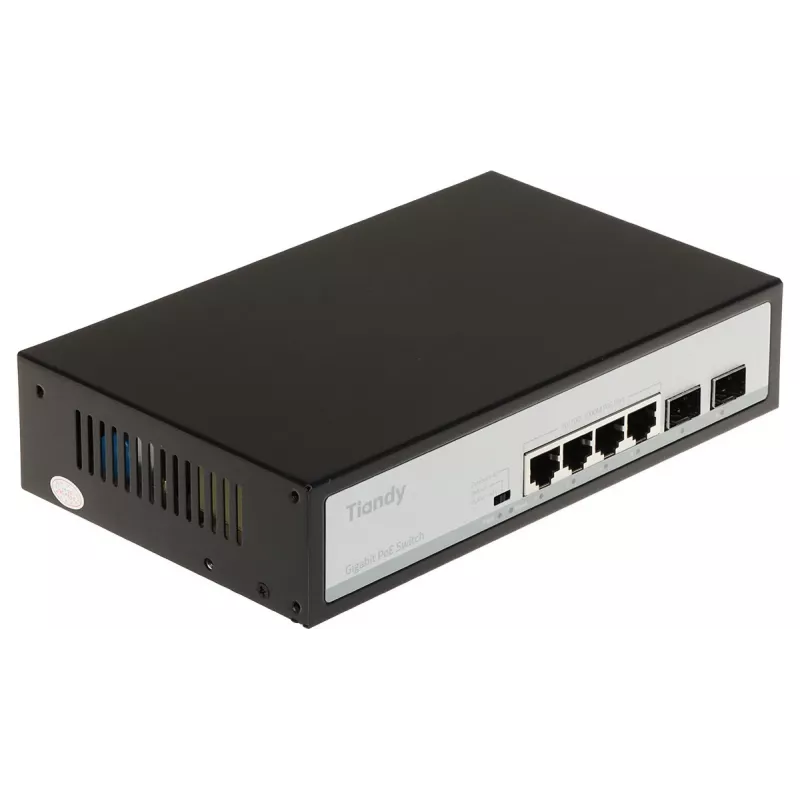

The POE LANG TC-P3S06 is a high-performance unmanaged PoE+ network switch designed for small to medium-sized businesses and surveillance applications. With 4 PoE+ ports delivering up to 30W per port (total 60W budget) and 2 Gigabit SFP uplink ports, it provides reliable power and data connectivity for IP cameras, access points, and other PoE devices. The fanless metal casing ensures silent operation and durability in desktop or wall-mount installations.

Advantages

This switch simplifies network deployment by combining data switching and power delivery over a single Ethernet cable, eliminating the need for separate power outlets for each device. Its plug-and-play design requires no configuration, making it ideal for quick setups. The fanless design reduces noise and maintenance, while the metal housing enhances heat dissipation and longevity.

Suitable for

• IP surveillance systems (PoE cameras)
• Wireless access points (PoE powered)
• VoIP phone networks
• Small office/home office (SOHO) networks
• Edge network extensions

Key specifications

• 4x 10/100Mbps RJ45 PoE+ ports (IEEE 802.3af/at)
• 2x 100/1000Mbps SFP uplink ports
• Total PoE power budget: 60W (up to 30W per port)
• Switching capacity: 1.8 Gbps
• Packet forwarding rate: 1.34 Mpps
• MAC address table: 2K entries
• Store-and-forward switching mode
• Compliant with IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
• Power input: DC 52V (external adapter included)
• Operating temperature: -10°C to 55°C
• Fanless, metal casing
• Desktop or wall-mountable

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch is best suited for environments requiring reliable PoE delivery with minimal configuration. Ensure the total power draw of connected devices does not exceed 60W.
