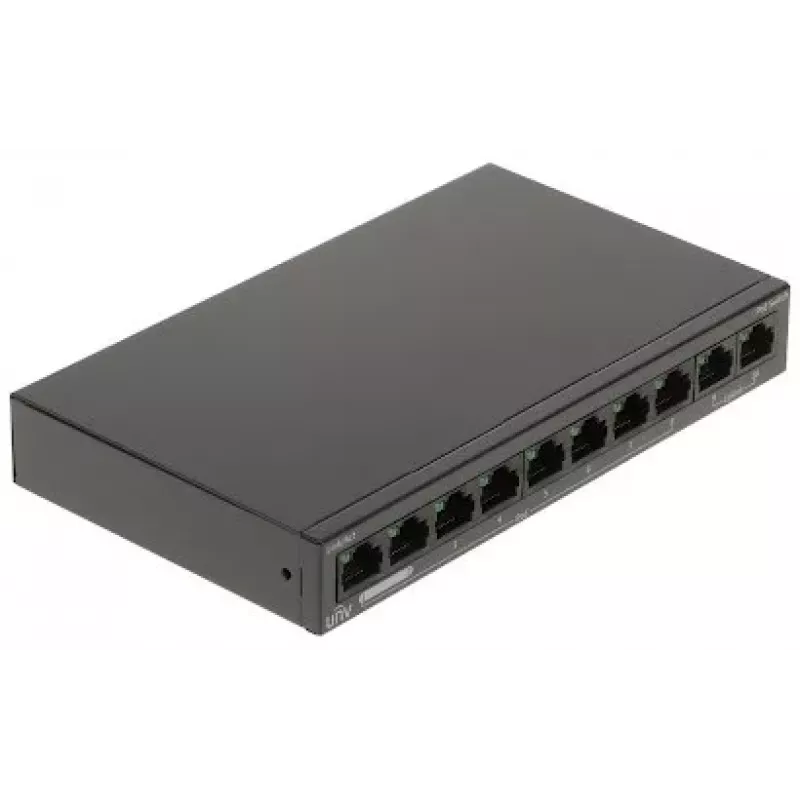

Switch PoE POE LANG Uniview 8 portas

The POE LANG NSW2020-10T-POE-IN is a reliable 8-port PoE switch designed for Uniview surveillance systems. It delivers power and data over a single Ethernet cable, simplifying installation and reducing costs. With 8 PoE ports and 2 uplink ports, it supports up to 8 cameras or other PoE devices.

Advantages

This switch offers a total PoE power budget of 120W, with up to 30W per port, compatible with IEEE 802.3af/at standards. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments. The extend mode allows PoE transmission up to 250m, providing flexibility for long-distance installations.

Suitable for

• Small to medium-sized surveillance systems
• IP camera networks
• Office and retail environments
• Remote monitoring locations

Key specifications

• 8 PoE ports (10/100Mbps) with 2 uplink ports (10/100Mbps)
• PoE standard: IEEE 802.3af/at
• Max PoE power per port: 30W
• Total PoE power budget: 120W
• Switching capacity: 2 Gbps
• Packet forwarding rate: 1.488 Mpps
• MAC address table: 2K
• PoE transmission distance: up to 100m (standard), up to 250m (extend mode)
• Operating temperature: -10°C to 55°C
• Power supply: External DC 52V adapter
• Fanless design
• Desktop or wall-mountable

Recommendations

For optimal performance, use with Uniview IP cameras and ensure proper ventilation. The extend mode is suitable for long-distance connections but may reduce data speed. Always check device compatibility before installation.
