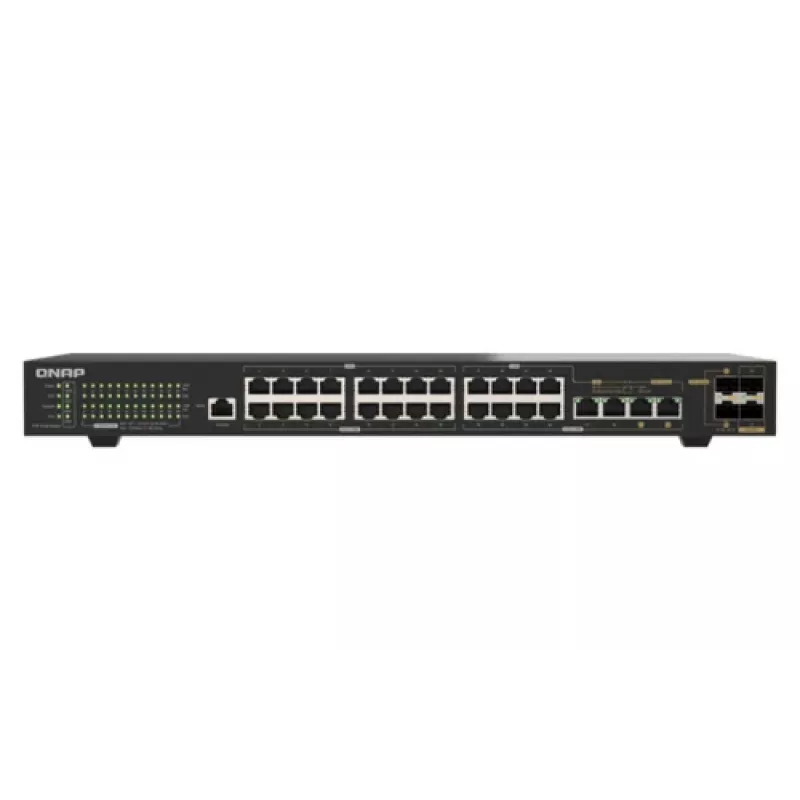

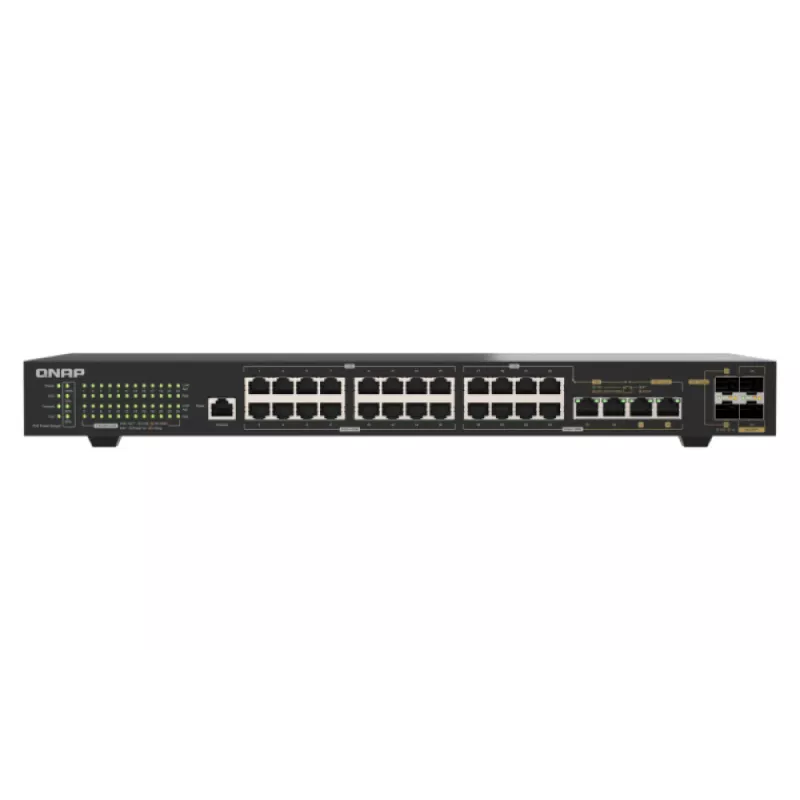

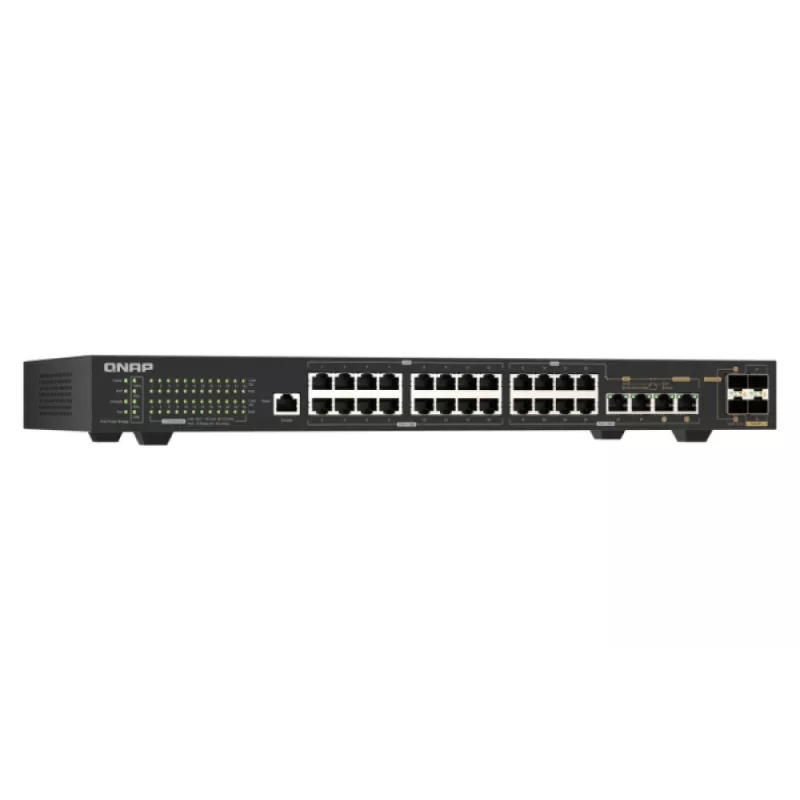

Switch rackmount gerido Layer 2 QNAP QSW-M2130P-2C2S26T de 26 portas 2.5GbE PoE++ com 2x 10GbE SFP+ e 2x portas combo 10GbE, orçamento PoE de 370W

With a non-blocking switching capacity of 200 Gbps and a forwarding rate of 148.8 Mpps, the QNAP QSW-M2130P-2C2S26T delivers uncompromised performance for bandwidth-hungry networks. This managed Layer 2 switch combines 26 multi-gigabit 2.5GbE PoE++ ports with 2x 10GbE SFP+ uplinks and 2x 10GbE SFP+/RJ45 combo ports, making it an ideal backbone for modern businesses.

Overview

The QSW-M2130P-2C2S26T is a 1U rackmount switch engineered for high-density connectivity and power delivery. It features 26 RJ45 ports supporting 100M/1G/2.5G speeds with IEEE 802.3af/at/bt PoE (PoE/PoE+/PoE++), providing up to 90W per port. With a total PoE power budget of 370W (expandable to 740W with an optional power supply), it can power devices such as Wi-Fi 6 access points, IP cameras, and VoIP phones without additional power injectors. The switch includes 2 dedicated 10GbE SFP+ ports and 2 combo 10GbE SFP+/RJ45 ports for high-speed uplinks or stacking, ensuring flexible network topologies.

What stands out

• 26 multi-gigabit 2.5GbE PoE++ ports for high-speed connectivity and power delivery
• 2x 10GbE SFP+ and 2x 10GbE SFP+/RJ45 combo uplink ports for fiber or copper backbone links
• Total PoE budget of 370W (expandable to 740W) supports a wide range of powered devices
• Layer 2 management with web-based GUI (QSS) for easy configuration and monitoring
• Robust 1U rackmount design with 3 smart fans for efficient cooling

Technical details

• Switching capacity: 200 Gbps (non-blocking)
• Forwarding rate: 148.8 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 9K
• PoE standards: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Management: Web-based GUI (QSS)
• Power supply: Internal, 100-240VAC, 50/60Hz
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, 802.3at, 802.3bt, 802.3az, 802.3x

Our verdict

The QNAP QSW-M2130P-2C2S26T is a powerhouse for networks demanding both speed and power. Its 2.5GbE ports with PoE++ and 10GbE uplinks make it future-proof for high-performance devices, while the generous PoE budget simplifies deployment. Whether for SMBs or enterprise edge, this switch delivers reliability and scalability in a compact 1U form factor.
