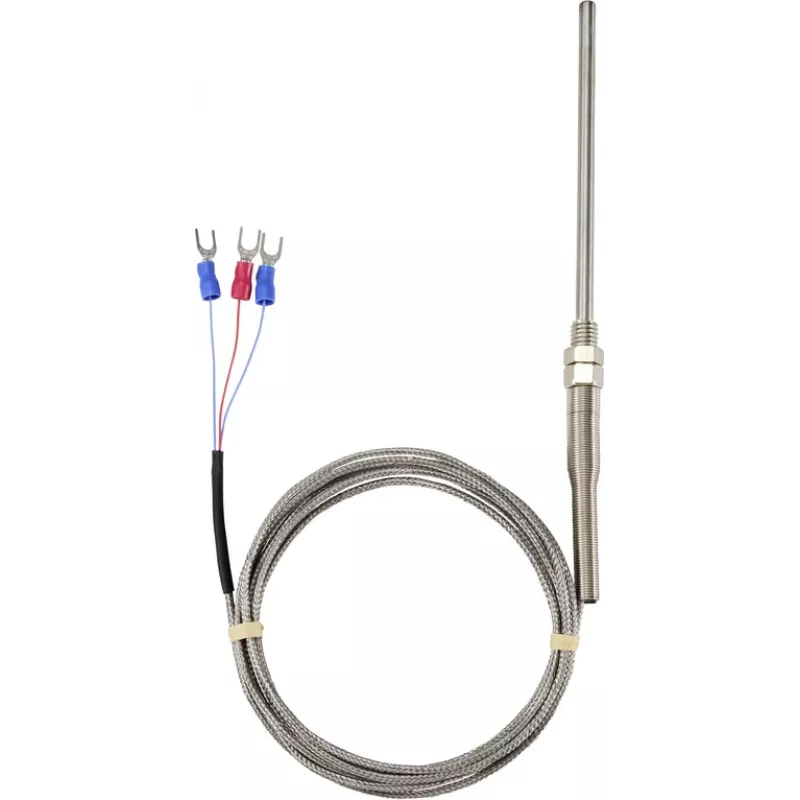

Sygonix M8 PT100 Sonda de temperatura de 3 fios, -50 a 300 °C, aço inoxidável, IP67, cabo de silicone de 2 m SY-6085070

The Sygonix M8 PT100 temperature probe is a robust sensing solution for precise temperature measurement in industrial and laboratory environments. Unlike standard sensors, it features a stainless steel probe with an M8 thread for secure mounting and a 3-wire configuration that compensates for lead resistance, ensuring accurate readings across its wide -50 to 300 °C range.

Highlights

• PT100 platinum resistance sensor with Class B accuracy
• 3-wire connection for improved measurement precision
• Stainless steel (SUS304) probe, 6 mm diameter, 50 mm length
• M8 x 1.25 thread for easy installation
• 2 m silicone cable, flexible and heat-resistant
• IP67 rated for protection against dust and temporary immersion

In daily use

The probe's open wire ends allow direct connection to compatible controllers or transmitters. The silicone cable withstands temperatures up to 200 °C, making it suitable for processes where the cable may be exposed to heat. The stainless steel construction resists corrosion, ensuring long-term reliability.

Full specifications

• Sensor type: PT100
• Wiring configuration: 3-wire
• Measurement range: -50 to 300 °C
• Thread size: M8 x 1.25
• Probe diameter: 6 mm
• Probe length: 50 mm
• Cable length: 2 m
• Cable material: Silicone
• Probe material: Stainless steel (SUS304)
• Protection class: IP67
• Accuracy class: Class B (IEC 60751)
• Connection type: Open wire ends
• Resistance at 0 °C: 100 Ω
• Temperature coefficient: 0.00385 Ω/Ω/°C

Final note

With its precise PT100 element and durable construction, this probe is a reliable choice for demanding temperature monitoring tasks.
