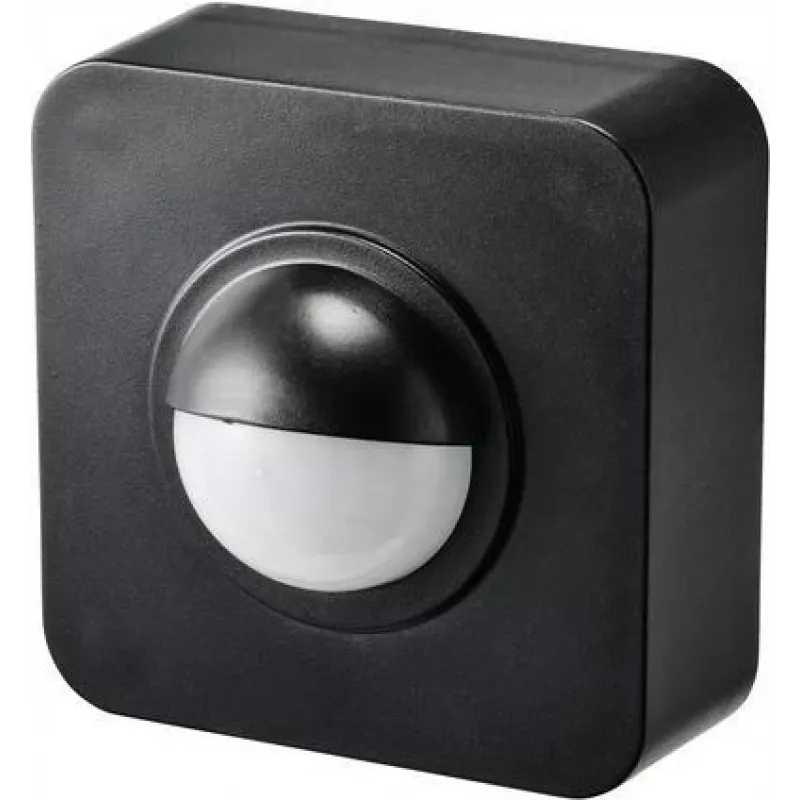

SYGONIX SY-5046552 Detetor de movimento PIR de superfície 120° preto IP65

For outdoor pathways, entrance areas, or garages, the SYGONIX SY-5046552 PIR motion detector switches lighting automatically when movement is detected. The black surface-mounted unit covers a 120° detection angle and up to 10 m range, making it suitable for residential and light commercial use.

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 120°
• Detection range: max. 10 m
• Mounting type: surface-mounted
• IP rating: IP65
• Product colour: black
• Operating voltage: 220 - 240 V AC, 50/60 Hz
• Max. switching capacity: 1200 W (incandescent), 300 W (LED/fluorescent)
• Time delay adjustment: 10 s - 7 min
• Light sensitivity adjustment: 3 - 2000 Lux
• Recommended installation height: 1.8 - 2.5 m
• Housing material: ABS plastic
• Operating temperature: -20 °C to +40 °C
• Standby power consumption: 0.5 W

Why choose it

The adjustable time delay and light sensitivity let you tailor activation to specific needs, while the IP65 rating ensures reliable operation in outdoor conditions.

Ideal use cases

• Outdoor lighting control for driveways and entrances
• Security lighting for garages and sheds
• Energy-saving automation in corridors and stairwells

Good to know

The detector is designed for both indoor and outdoor use and can handle a wide range of lighting loads.
