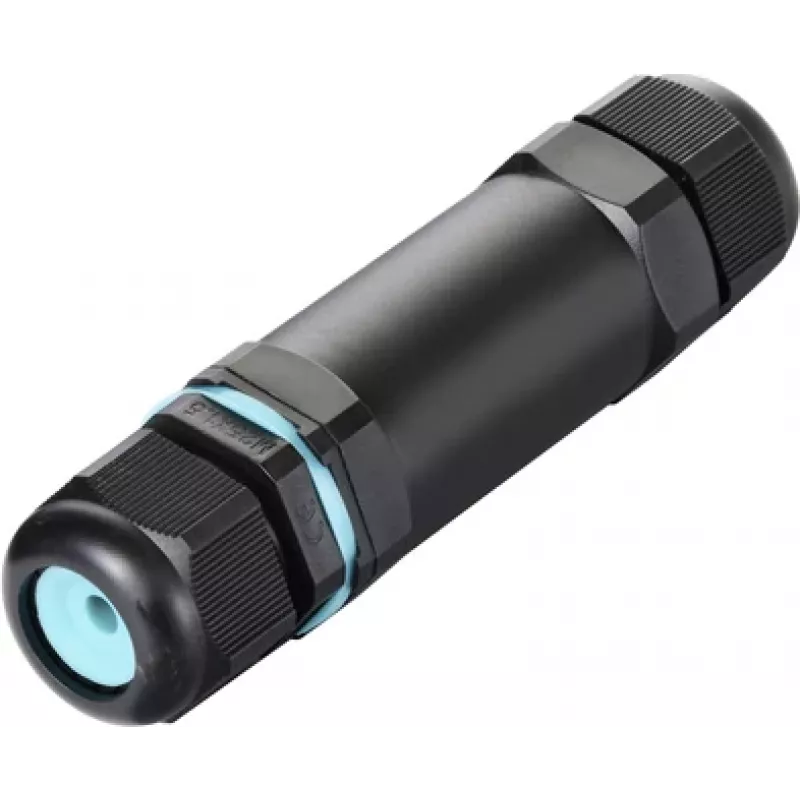

Sygonix SY-5498972 conector de cabo resistente às intempéries com terminais de parafuso, IP68, 3 polos, 32 mm x 118 mm, preto

Inline cable connector with screw terminals, weatherproof and rated IP68 for reliable connections in outdoor, underground, and wet environments.

Advantages

Secure screw terminal connections accept wires from 0.5 to 2.5 mm², while the silicone seal and UV-resistant polyamide housing ensure long-term durability in harsh conditions.

Suitable for

• Outdoor lighting and garden installations
• Underground cable joints
• Wet or dusty industrial environments

Key specifications

• Connector type: Inline cable connector
• Connection method: Screw terminals
• Ingress protection: IP68
• Number of poles: 3
• Rated voltage: 450 V AC
• Rated current: 24 A
• Wire cross-section: 0.5 - 2.5 mm²
• Outer cable diameter: 4 - 12 mm
• Housing material: Polyamide 66 (PA66)
• Contact material: Brass, nickel-plated
• Seal material: Silicone
• Operating temperature: -40 °C to +105 °C
• Dimensions: 32 mm diameter x 118 mm length

Recommendations

For permanent outdoor installations, ensure cable glands are tightened to the specified torque to maintain the IP68 seal.
