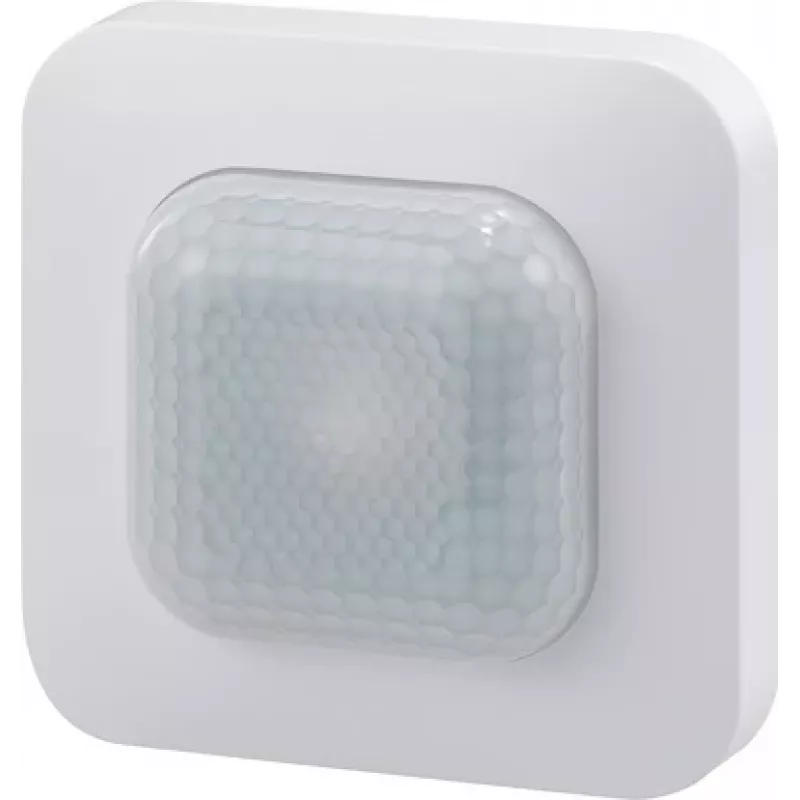

Sygonix SY-5836538 Detetor de presença PIR de teto 360° relé branco

Lighting control in large rooms often requires manual switching or multiple sensors, leading to wasted energy and inconvenience. The Sygonix SY-5836538 ceiling presence detector solves this by automatically switching lights based on movement and ambient light, covering a full 360° area.

Who is it for

This detector is ideal for offices, hallways, storage rooms, and other indoor spaces where hands-free lighting control is desired. It suits electricians and DIY installers looking for a reliable flush-mount ceiling sensor.

Main features

• 360° detection angle for complete coverage
• Passive infrared (PIR) sensor technology
• Adjustable time delay from 10 seconds to 30 minutes
• Adjustable light sensitivity from 3 to 2000 lux
• Relay switching output for direct load control
• High switching capacity: up to 2000 W incandescent, 1000 W LED/fluorescent
• Flush ceiling mounting for a clean look
• White polycarbonate housing

Specifications

• Detection angle: 360°
• Sensor type: Passive Infrared (PIR)
• Mounting type: Ceiling flush mount
• Operating voltage: 220 - 240 V AC, 50/60 Hz
• Max. switching load (incandescent): 2000 W
• Max. switching load (LED/fluorescent): 1000 W
• Detection range (diameter): max. 8 m at 2.5 m installation height
• Recommended installation height: 2.2 - 4 m
• Time delay setting: 10 seconds to 30 minutes
• Light sensitivity: 3 - 2000 lux
• IP rating: IP20
• Colour: White
• Power consumption (standby): 0.5 W
• Operating temperature: -20 °C to +40 °C
• Housing material: Polycarbonate

Tips

Install at the recommended height for optimal detection coverage. Adjust the time delay and lux settings according to the room's usage and natural light conditions to maximize energy savings.
