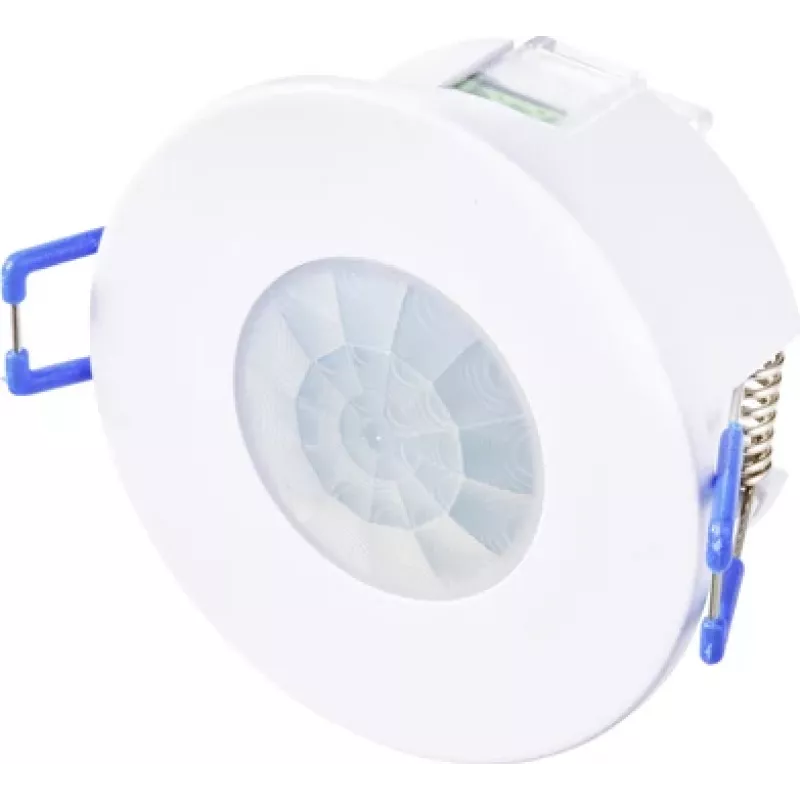

Sygonix SY-5995928 Detetor de movimento PIR de teto 360° relé branco IP20

Manual light switching wastes energy and leaves areas dark when you need them. The Sygonix SY-5995928 ceiling-mounted PIR motion detector solves this by automatically controlling lighting based on presence and ambient light. It detects movement in a full 360° circle, making it ideal for hallways, stairwells, offices, and storage rooms.

Who is it for

This sensor is for electricians, facility managers, and homeowners who want hands-free lighting control in indoor spaces. It works with standard 230 V lighting circuits and can switch incandescent loads up to 2000 W or LED/fluorescent loads up to 1000 W.

Main features

• 360° PIR detection with a range of up to 6 m diameter at 2.5 m mounting height
• Adjustable time delay from 10 seconds to 15 minutes
• Adjustable light sensitivity from 3 to 2000 lux, so it only activates when needed
• Relay output switches the phase directly, no extra contactor required for most loads
• Flush ceiling mounting for a clean look, suitable for heights from 2.2 to 4 m
• Low standby power consumption of less than 0.5 W

Specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: max. 6 m diameter at 2.5 m mounting height
• Mounting type: Ceiling flush mount
• Mounting height: 2.2 - 4 m
• Operating voltage: 230 V/AC, 50 Hz
• Max. switching capacity (incandescent): 2000 W
• Max. switching capacity (LED/fluorescent): 1000 W
• Time setting: 10 s - 15 min (adjustable)
• Light sensitivity: 3 - 2000 lux (adjustable)
• IP rating: IP20
• Colour: White
• Output type: Relay (switched phase)
• Power consumption (standby): < 0.5 W
• Operating temperature: -20 to +40 °C

Tips

For best coverage, install the sensor in the centre of the room at a height between 2.2 and 4 metres. Adjust the time delay and lux level after installation to match the room's usage. Avoid placing it near air vents or heat sources, as rapid temperature changes can affect PIR detection.
