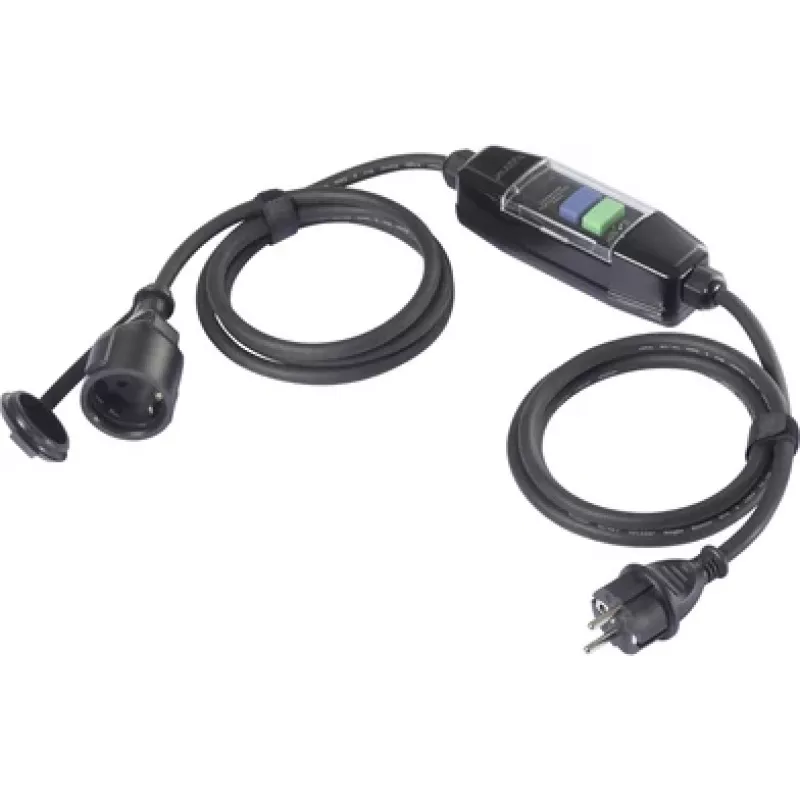

Sygonix SY-6052178 cabo de extensão com interruptor diferencial PRCD portátil 230 V/AC 3 m preto IP44

This portable residual current device (PRCD) extension cable provides personal protection against electric shock in outdoor and indoor environments. With a rated residual current of 30 mA and tripping time under 30 ms, it quickly disconnects power in the event of a fault, making it essential for use with power tools and electrical equipment where fixed RCD protection is not available.

Advantages

The integrated PRCD-S safety module continuously monitors the protective conductor and automatically disconnects in case of undervoltage, overvoltage, or residual current. The robust housing and IP44 rating protect against splashing water, allowing safe use in damp conditions. The 3-meter H07RN-F cable with 1.5 mm² conductors remains flexible even at low temperatures, down to -25 °C.

Suitable for

• Outdoor power tools and garden equipment
• Construction sites and temporary installations
• Portable electrical devices without built-in RCD protection
• Indoor use in areas without fixed residual current protection

Key specifications

• Nominal voltage: 230 V/AC, 50 Hz
• Nominal current: 16 A
• Rated residual current: 30 mA
• Tripping time: < 30 ms
• Cable length: 3 m, type H07RN-F 3G1.5 mm²
• Plug and socket: Schuko (CEE 7/7 and CEE 7/3)
• Ingress protection: IP44
• Operating temperature: -25 °C to +40 °C
• Certifications: VDE, GS

Recommendations

Always test the PRCD before each use by pressing the test button. Ensure the plug is fully inserted and the socket is protected from direct water jets. For maximum safety, combine with a fixed RCD installation where possible.
