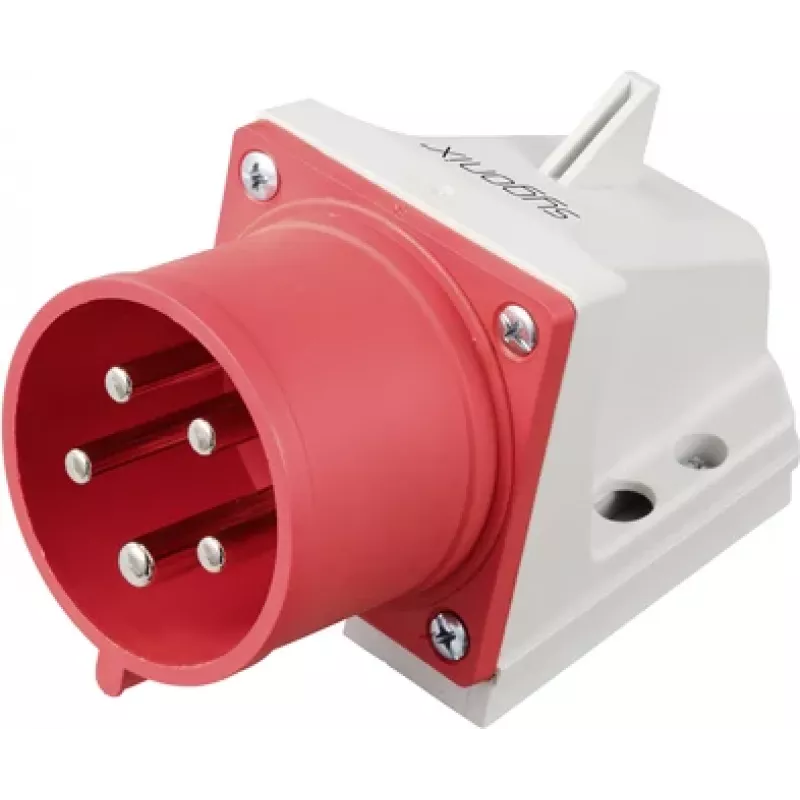

Sygonix SY-6261874 Tomada de parede CEE 32 A 5 polos 415 V/AC IP44 de sobrepor

This Sygonix CEE wall socket delivers 32 A at 415 V/AC through a 5-pole (3P+N+PE) configuration, making it a robust power access point for industrial and commercial installations.

Overview

The SY-6261874 is a surface-mounted CEE wall socket built to IEC 60309 standards. Its 6h clock position ensures correct phase alignment, while the red and grey polyamide housing offers durability and splash protection (IP44). Screw terminals provide secure wiring, and multiple cable entry options (top, bottom, rear) simplify installation.

What stands out

• High current capacity: 32 A for demanding equipment
• 5-pole design with neutral and earth for three-phase systems
• IP44 splash-proof rating for damp environments
• Nickel-plated brass contacts for reliable conductivity
• Wide operating temperature range from -25 to +40 °C

Technical details

• Current rating: 32 A
• Voltage rating: 415 V/AC
• Number of poles: 5 (3P+N+PE)
• Frequency: 50/60 Hz
• Clock position: 6h
• Mounting type: Surface-mounted
• Connection type: Screw terminals
• Housing material: Polyamide (PA)
• Contact material: Nickel-plated brass
• Rated impulse withstand voltage: 6 kV
• Flammability rating: UL94 V2

Our verdict

A reliable, industrial-grade CEE wall socket that meets stringent electrical standards and offers flexible installation options.
