Sygonix SY-6271370 tomada de parede CEE 16 A 5 polos 415 V/AC IP44 vermelho

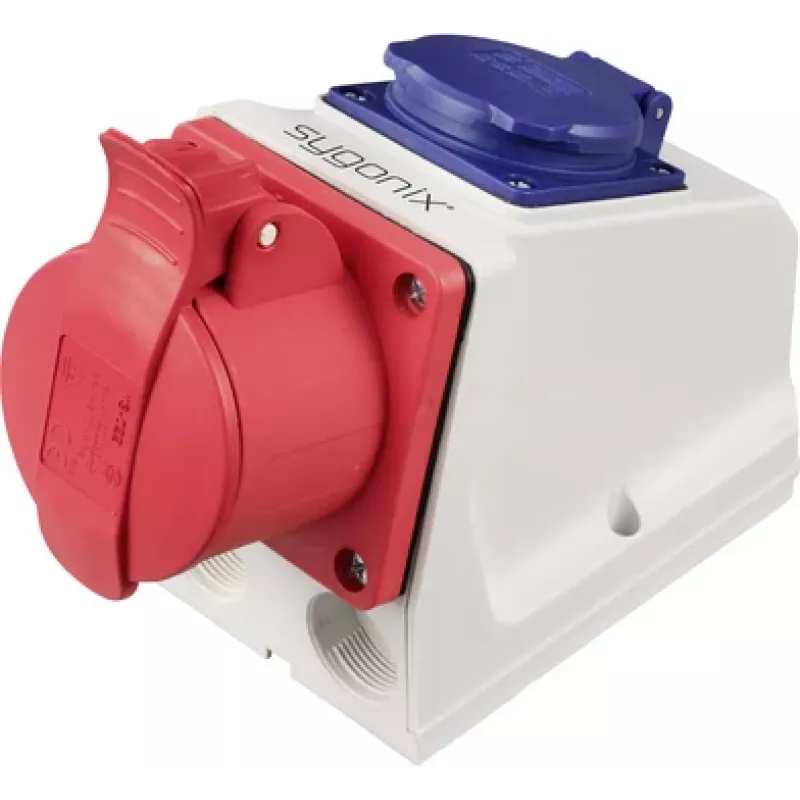

In workshops, farms, and industrial facilities, reliable high-current connections are essential. The Sygonix SY-6271370 CEE wall-mounted socket provides a robust 16 A, 5-pole (3P+N+PE) outlet for 415 V/AC three-phase equipment. Its red housing (RAL 3000) and 6h clock position clearly identify it as a 400 V socket, while the IP44 rating protects against splashing water and solid objects over 1 mm. Screw terminals accept 1.5–4 mm² conductors, and the polyamide (PA6) housing withstands temperatures from -25 °C to +40 °C. Compliant with IEC 60309, this socket is built for demanding environments.

Key specifications

• Current rating: 16 A
• Voltage rating: 415 V/AC
• Poles: 5-pole (3P+N+PE)
• Protection class: IP44
• Frequency: 50/60 Hz
• Clock position: 6h
• Housing material: Polyamide (PA6)
• Colour: Red (RAL 3000)
• Mounting type: Wall-mounted
• Connection type: Screw terminals
• Standard compliance: IEC 60309
• Operating temperature range: -25 °C to +40 °C
• Terminal cross-section: 1.5 - 4 mm²
• Contact material: Brass
• Glow wire test temperature: 850 °C

Why choose it

This CEE socket ensures safe and reliable power distribution for three-phase equipment. Its IP44 rating makes it suitable for use in areas where occasional splashing or dust may occur, while the robust polyamide housing withstands mechanical stress and temperature extremes. The 6h clock position prevents incorrect connection of equipment with different voltage ratings.

Ideal use cases

• Industrial workshops and production lines
• Agricultural buildings and greenhouses
• Construction sites (with appropriate distribution boards)
• Marinas and outdoor installations
• Commercial kitchens and laundries

Good to know

The socket is designed for wall mounting and includes screw terminals for secure wiring. It is compatible with standard CEE plugs with 6h clock position. Always have installation performed by a qualified electrician in accordance with local regulations.
